Leading-edge H.265+ Compression
-
Video Content Analysis (VCA)
Chennai WCT VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
-
4K Video Viewing Experience
Chennai WCT H.256+ Vandal-proof Mini Dome Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD), providing users with ultra-high-definition video viewing experience.
-
0.002Lux Ultra Low-light
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
-
140dB Super WDR
Chennai WCT's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
-
60fps High Frame Rate
Chennai WCT Network Camera offers high frame rate including 2MP@60fps and 5MP@30fps, which enables the camera to easily catch images with no latency despite the high-speed movement.
-
Reliable Anti-vibration Performance
Complying with the transportation-industry regulations of EN50155 standard, H.265+ Vandal-proof Mini Dome Network Camera is able to offer train specific rugged features to protect the system against environmental factors such as high/low temperature, shock, vibration and power surge.
-

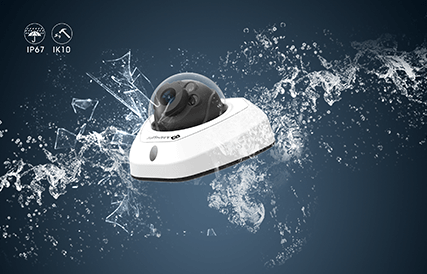

IP67&IK10

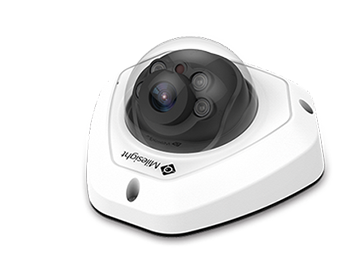

Sharply contrasting to the mini size, the H.265+ Vandal-proof Mini Dome Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.
-

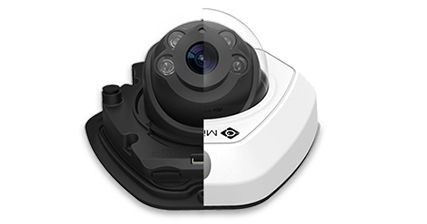

Latest IR LED Technology
Equipped with LEDs of the latest generation, the H.265+ Vandal-proof Mini Dome Network Camera provides superior night-time images and delivers absolute performance in night vision surveillance.
-

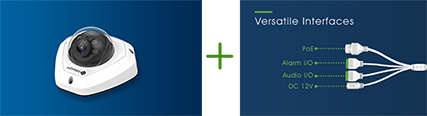

Versatile Interfaces
Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.
-

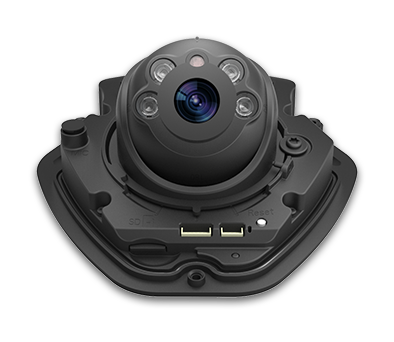

Unique Design for Easy Installation
The new model is designed for easy and quick installation. The 3-axis mechanical design, built-in microSD/SDHC/SDXC card slot and PoE module make it truly installer-friendly.
-

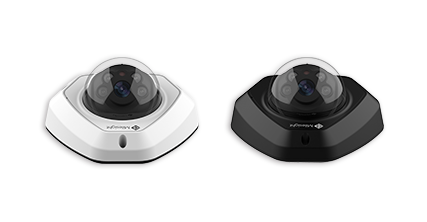

Two Colors Available
Available in White and Black, the H.265+ Vandal-proof Mini Dome Network Camera provides more choices for your preference.
-
SIP/VoIP Support
Chennai WCT H.265+ Vandal-proof Mini Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
-
Camera
Name2MP H.265 Vandal-proof Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, B/W: 0Lux with IR on
WDR140dB Super WDR
Lens2.8mm @F2.0/ 3.2mm @F2.2/ 3.6mm @F2.2
MountM12
Field of ViewH123°/D142°/V68°(2.8mm), H105°/D123°/V58°(3.2mm), H94°/D111°/50°(3.6mm)
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 30m
S/N>55dB
Video
Max. Image Resolution1920x1080
Frame Rate60fps@(1920x1080)(Optional for R Series)30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/OBuilt-in Microphone; 1/1(Multi-interface Version)
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O1/1(Multi-interface Version)
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af); PoE(802.3af)/DC 12V±10%(Multi-interface Version)
Power Consumption2.5W MAX, 5W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
EN50155Support
Dimensions118.5mmX110.8mmX65mm
Weight500g
Warranty3/5 Years
-
Camera
Name5MP H.265 Vandal-proof Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens2.8mm @F2.0/ 3.2mm @F2.2/ 3.6mm @F2.2
MountM12
Field of ViewH111°/D141°/V82°(2.8mm), H96°/D123°/V71°(3.2mm), H80°/D102°/V59°(3.6mm)
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 30m
S/N>55dB
Video
Max. Image Resolution2592x1944
Frame Rate30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080)(Optional for H Series)20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/OBuilt-in Microphone; 1/1(Multi-interface Version)
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O1/1(Multi-interface Version)
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af); PoE(802.3af)/DC 12V±10%(Multi-interface Version)
Power Consumption2.5W MAX, 5.5W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
EN50155Support
Dimensions118.5mmX110.8mmX65mm
Weight500g
Warranty3/5 Years
-
Camera
Name4K H.265 Vandal-proof Mini Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens2.8mm @F2.0/ 3.6mm @F2.2
MountM12
Field of ViewH124°/D140°/V69°(2.8mm), H89°/D103°/V49°(3.6mm)
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 30m
S/N>55dB
Video
Max. Image Resolution3840x2160
Frame Rate15fps@(3840x2160), 30fps@(3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/OBuilt-in Microphone; 1/1(Multi-interface Version)
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O1/1(Multi-interface Version)
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af); PoE(802.3af)/DC 12V±10%(Multi-interface Version)
Power Consumption5.2W MAX, 6.6W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
EN50155Support
Dimensions118.5mmX110.8mmX65mm
Weight500g
Warranty3/5 Years
-
* Naming Convention
P - PoE Supported
B - H.265 Compression
