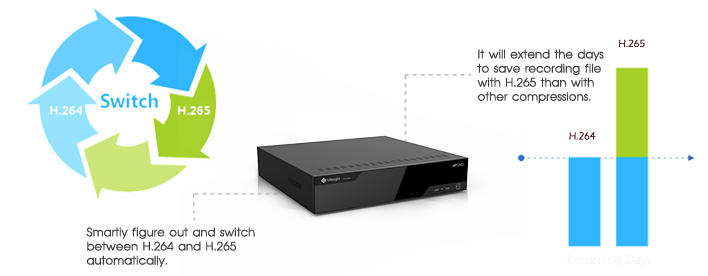

Leading-edge H.265 Compression
-
New File System
Applied with the New Chennai WCT File System (MSFS), Milesight NVRs bring completely new user-experience.
· Lock Record File, Tag Video and Playback File Management
· General, Event, Tag and Picture Playback
· Common Backup, Event Backup and Picture Backup
· NAS and Disk Group Function
-
4K Video Viewing Experience

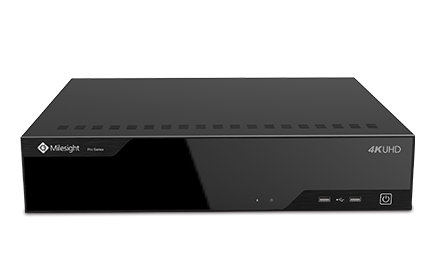

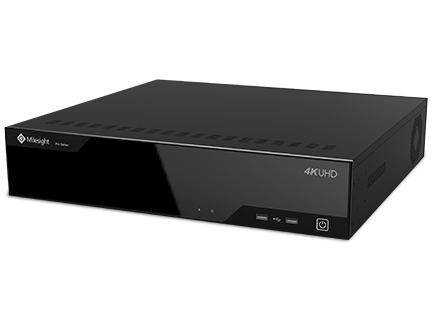

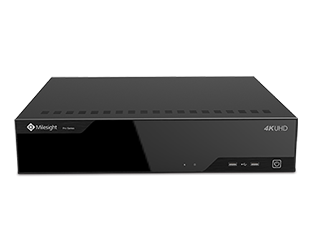

Chennai WCT 4K H.265 Pro NVR 8000 Series introduces a whole new more smooth operation interface. When direct access to 4K network cameras, it can decode 4K real-time video and recording to provide users with ultra-high-definition video viewing experience.
-

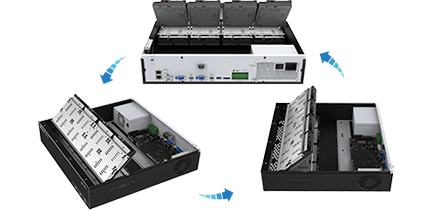

Optimized Hard Disk Installation
Hardware components are optimized to meet the demands for convenient and stable hard disk installation. With the 4 HDDs tightly screwed in a bracket and the bracket locked in the slots design, the hard disks are surprisingly simpler to mount and the installation time is greatly minimized.
-

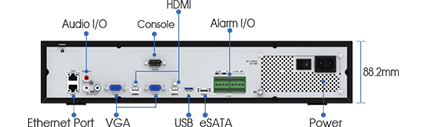

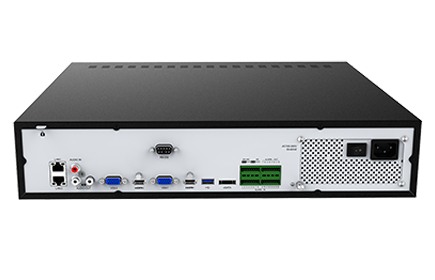

Versatile Interfaces
Chennai WCT 4K H.265 Pro NVR 8000 Series comes with a whole array of ports such as 2 HDMI ports, 2 VGA ports, 3 USB ports, Alarm I/O, Audio I/O and 2 LAN ports. The full set of interfaces provide all necessary features for effective surveillance.
-
Powerful Decoding and Recording Performance
Chennai WCT 4K H.265 Pro NVR 8000 Series is an ideal for those applications requiring robust decoding and recording performance, for this series can support synchronously decoding 4-CH 4K UHD, 8-CH 4MP and 16-CH 1080P network cameras, and synchronously recording up to 32-CH 5MP high resolution cameras.
-
Chennai WCT N+1 Hot Spare
Configured as the architecture of N pcs Master NVRs and 1 hot spare slave NVR, Chennai WCT N+1 Hot Spare guarantees the data integrity and reliability of video surveillance system. If any one of the master NVRs fails, the slave NVR can take over the data to ensure continuous video recording. Meanwhile, when the failed NVR recovered, the slave NVR will send the data back to prevent the risk of data loss.
-
Reliable ANR
Improving the reliability and stability of the storage, the function flexibly allows to automatically store video data on the network camera storage card when the network is disconnected, and retrieves them after recovery of the connection.
-
Transcoding
Transcoding could be set at M-Sight Pro or NVR web page to transcode the recorded stream into a smaller one, aiming to reduce the network load and provide better playback performance.
-
Dual LAN interfaces for three network working modes
Multi-address
Two Ethernet interfaces use different IP addresses and work separately in LAN1 and LAN2. One of them could be chosen as default LAN to transmit data.
Load Balance
Two Ethernet interfaces use the same IP address. And they share the bandwidth of the system, which is aimed at increasing the throughput.
Net Fault-tolerance
Two Ethernet interfaces use the same IP address. One is main, and the other is for backup. If the main Ethernet interface is damaged, it will switch over to the backup one automatically to ensure normal function.
-
RAID 0/1/5/6/10 Supported
RAID (Redundant Array of Independent Disks) is a method of combining hard disks as a logical unit to achieve redundancy and greater speed of writing and reading data. There are 5 different RAID levels (0,1,5,6,10) supported by Milesight 4K H.265 Pro NVR 7000 series, which can be configured according to user’s exact project requirements for data protection and storage space, providing reliability, high availability storage.
-
VCA
With 10 VCA functions availability, Chennai WCT NVRs label themselves as intelligent on the basis of the powerful file system MSFS.
-
Input
Network Video Input32-CH
Bandwidth Requirement256Mbps or 200Mbps(When RAID is enabled) (Incoming)
256Mbps or 200Mbps(When RAID is enabled) (Outgoing)Output
HDMI Output2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
VGA Output2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
Dual StreamSupport
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA8*SATA HDD (3.5”)
eSATA1*eSATA
CapacityUp to 10TB capacity for each HDD
Disk Array
Array TypeRAID0, RAID1, RAID5, RAID6, RAID10
Record
Recording TypeContinuous, Motion Detection, Alarm, Smart Event, Event (Motion Detection, Alarm, Smart Event)
SnapshotManual Snapshot
PlaybackVideo Playback, Image Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface2*RJ45 100M/1000M
USB Interface1*USB 3.0; 2*USB 2.0
Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output1*RCA/2*RCA
Alarm Input16-CH
Alarm Output4-CH
General
CompatibilityONVIF
Advanced FunctionANR, N+1 Hot Spare
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyAC 100V∼240V 50Hz∼60Hz
Consumption≤35W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X420mm(D)X88.2mm(H), Rack Mountable Chassis(2.0U Standard)
Weight6.0Kg
Warranty3/5 Years
-
Input
Network Video Input64-CH
Bandwidth Requirement320Mbps or 200Mbps(When RAID is enabled) (Incoming)
256Mbps or 200Mbps(When RAID is enabled) (Outgoing)Output
HDMI Output2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
VGA Output2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
Dual StreamSupport
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P),64*(30fps @D1)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA8*SATA HDD (3.5”)
eSATA1*eSATA
CapacityUp to 10TB capacity for each HDD
Disk Array
Array TypeRAID0, RAID1, RAID5, RAID6, RAID10
Record
Recording TypeContinuous, Motion Detection, Alarm, Smart Event, Event (Motion Detection, Alarm, Smart Event)
SnapshotManual Snapshot
PlaybackVideo Playback, Image Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface2*RJ45 100M/1000M
USB Interface1*USB 3.0; 2*USB 2.0
Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output1*RCA/2*RCA
Alarm Input16-CH
Alarm Output4-CH
General
CompatibilityONVIF
Advanced FunctionANR, N+1 Hot Spare
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyAC 100V∼240V 50Hz∼60Hz
Consumption≤35W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X420mm(D)X88.2mm(H), Rack Mountable Chassis(2.0U Standard)
Weight6.0Kg
Warranty3/5 Years
-
* Naming Convention
U - 4K
T/H - H.265 Compression
