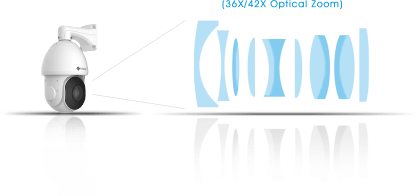

36X/42X Optical Zoom
Chennai WCT 36X/42X H.265+ Speed Dome Network Camera is designed to extend user’s reach to the max with the fast 5.7~205.2mm @F1.55~F4.8/7~300mm @F1.8~F6.5 lens. The 36X/42X optical zoom allows the user to zoom up to distant subjects while still maintaining the clarity, delivering high quality video over the entire zoom range.
-

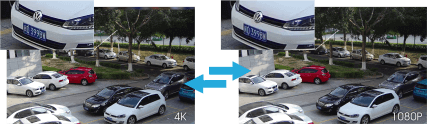

Up to 4K High Resolution
Chennai WCT 36X/42X H.265+ Speed Dome Network Camera delivers clear images up to 4K High resolution by zooming in on objects at distance, providing users with ultra-high-definition video viewing experience.
-

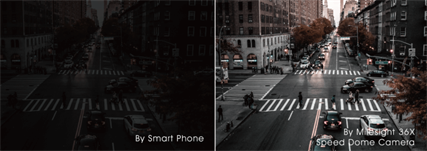

1/1.8” Sensor @36X Model
Equipped with the industry-leading 1/1.8” big sensor, Chennai WCT 36X Speed Dome Camera, the member of Starlight Premium Series, improves every aspects of the image quality, including better low-light sensitivity.
-
0.001Lux Ultra Low-light
The Chennai WCT Speed Dome Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.001Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
-

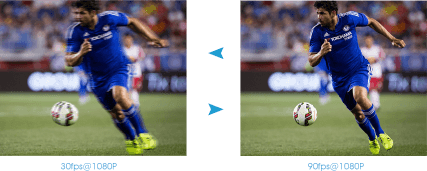

90fps High Frame Rate
The whole Speed Dome lineup has been optimized to the next level for the higher frame rate, including 90fps@2MP, 30fps@5MP, 30fps@4K Models. With the industry-leading high frame rate, Chennai WCT Speed Dome Cameras can easily catch images with no latency despite the high-speed movement.
-
Leading-edge H.265+ Compression
-
Video Content Analysis (VCA)
Chennai WCT VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
-
140dB Super WDR
Chennai WCT’s sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
-

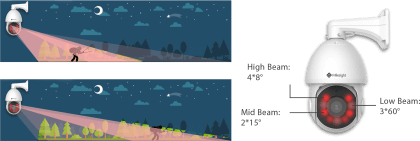

Smart IR II Technology
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 300m. Four LEDs work as High Beam, two LEDs work as Mid Beam, while the other three as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam, Mid Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.
-

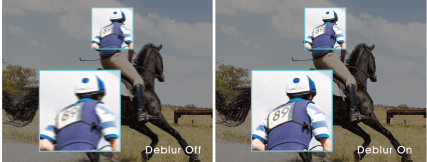

High-quality Deblur
The deblur function in Milesight cameras limits the exposure time under certain gain range by precise algorithm, removing blurring artifacts which caused by motion, so that it can provide distinct images for fast-moving objects.
-

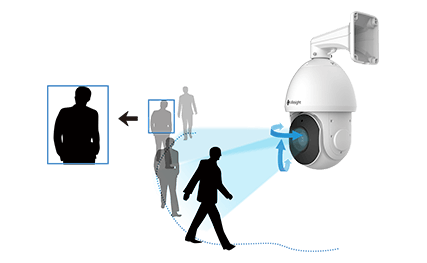

PTZ Auto Tracking
Once PTZ Auto Tracking function enabled, Chennai WCT PTZ cameras could leverage motor mechanism to perform Pan/Tilt/Zoom to track the moving object automatically and adjust zoom status flexibly according to the object distance with the powerful optical zoom capability. Therefore, the target would be shown in the frame center and be zoomed to a proper size, achieving the smart, reliable and real-time video surveillance without any critical details missing.
-
3D Positioning
Chennai WCT Speed Dome Network Camera can be easily controlled via the use of a mouse which is truly user-friendly. Left click on any position of interest in the video image, and the position will right become the center of the current monitoring area. Use the left button of a mouse to drag a rectangle area, then the area will become the central area of monitoring with automatic zoom in or zoom out action. Rolling the mouse wheel up and down, the video image will be zoomed in and zoomed out immediately.
-

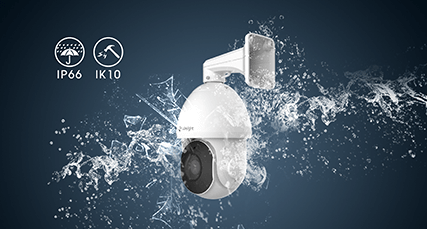

IP66&IK10 (Optional for IK10)
The weather-proof and vandal-proof capacity are the solid foundation to guarantee the stable and reliable operation of the network camera. Applied in Speed Dome Network Camera, the IP66-rated weather proofing and IK10-rated vandal proofing, which are the leading level of the industry, well protect the cameras against adverse impact to ensure the performance.
-

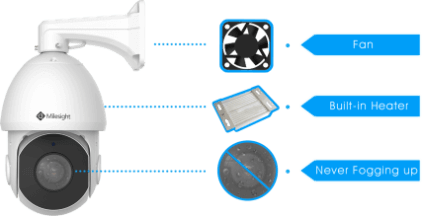

Comprehensive Defogging
The Speed Dome Camera creatively realizes the comprehensive defog performance in hardware of a smart fan, a built-in heater and software of image defogging algorithm, enabling the camera to avoid image fogging problems.
-

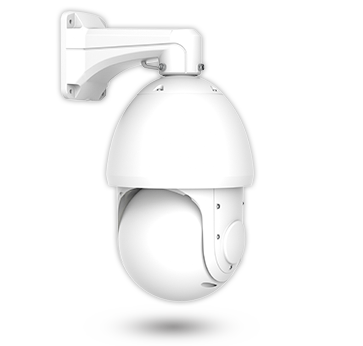

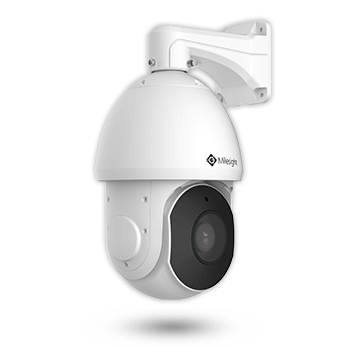

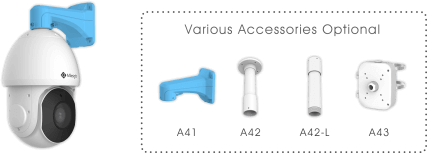

Exquisite Design
Adopting the completely new design, 36X/42X H.265+ Speed Dome Network Camera is born for its originality and elegance. The optimized structure is super chic and simple with the hiding of IR LEDs. And at the same time, whether wall mount or pendant mount, there are different accessories optional for the hassle-free installation.
-
Camera
Name2MP 36X H.265 Speed Dome Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
S/N>55dB
Digital Zoom16X
Lens
Focal Length5.7∼205.2mm, 36X Optical Zoom
Zoom SpeedApprox 7s(Optical Wide-Tele)
Field of ViewH63°∼H3°/D69°∼D3°/V38°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1500∼1500mm(Wide-Tele)
ApertureF1.55∼F4.8
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.5°∼180°/s, Pan Preset Speed: 240°/s
Tilt Range/Tilt Speed0°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼120°/s, Tilt Preset Speed: 200°/s
Proportional ZoomSupport
Preset Quantity255
Preset FreezingSupport
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
PTZ Position DisplayON/OFF
3D PositioningSupport
IR
Irradiation DistanceUp to 300m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution1920x1080
Primary Stream90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
System
Alarm I/O2/2
RS485Support
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ AC 24V/3A ±10%
Power Consumption13W MAX/ 25W MAX(With IR on)
Weather Proof/
HousingUp to IP66-rated for weather-resistant performance / Vandal-proof IK10-rated Metal Housing(Optional)Surge Protection6KV
Dimensions/WeightΦ205mmX308mm/4Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name2MP 42X H.265 Speed Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
S/N>55dB
Digital Zoom16X
Lens
Focal Length7∼300mm, 42X Optical Zoom
Zoom SpeedApprox 7s(Optical Wide-Tele)
Field of ViewH45°∼H2°/D50°∼D2°/V27°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1200∼1500mm(Wide-Tele)
ApertureF1.8∼F6.5
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.5°∼180°/s, Pan Preset Speed: 240°/s
Tilt Range/Tilt Speed0°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼120°/s, Tilt Preset Speed: 200°/s
Proportional ZoomSupport
Preset Quantity255
Preset FreezingSupport
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
PTZ Position DisplayON/OFF
3D PositioningSupport
IR
Irradiation DistanceUp to 300m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution1920x1080
Primary Stream60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
System
Alarm I/O2/2
RS485Support
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ AC 24V/3A ±10%
Power Consumption13W MAX/ 25W MAX(With IR on)
Weather Proof/
HousingUp to IP66-rated for weather-resistant performance / Vandal-proof IK10-rated Metal Housing(Optional)Surge Protection6KV
Dimensions/WeightΦ205mmX308mm/4Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name5MP 42X H.265 Speed Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
S/N>55dB
Digital Zoom16X
Lens
Focal Length7∼300mm, 42X Optical Zoom
Zoom SpeedApprox 7s(Optical Wide-Tele)
Field of ViewH43°∼H2°/D53°∼D2°/V33°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1200∼1500mm(Wide-Tele)
ApertureF1.8∼F6.5
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.5°∼180°/s, Pan Preset Speed: 240°/s
Tilt Range/Tilt Speed0°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼120°/s, Tilt Preset Speed: 200°/s
Proportional ZoomSupport
Preset Quantity255
Preset FreezingSupport
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
PTZ Position DisplayON/OFF
3D PositioningSupport
IR
Irradiation DistanceUp to 300m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution2592x1944
Primary Stream30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
System
Alarm I/O2/2
RS485Support
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ AC 24V/3A ±10%
Power Consumption13.5W MAX/ 25.5W MAX(With IR on)
Weather Proof/
HousingUp to IP66-rated for weather-resistant performance / Vandal-proof IK10-rated Metal Housing(Optional)Surge Protection6KV
Dimensions/WeightΦ205mmX308mm/4Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name4K 36X H.265 Speed Dome Network Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.006Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
S/N>55dB
Digital Zoom16X
Lens
Focal Length5.7∼205.2mm, 36X Optical Zoom
Zoom SpeedApprox 7s(Optical Wide-Tele)
Field of ViewH66°∼H3°/D72°∼D3°/V41°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1500∼1500mm(Wide-Tele)
ApertureF1.55∼F4.8
Iris ControlAuto
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.5°∼180°/s, Pan Preset Speed: 240°/s
Tilt Range/Tilt Speed0°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼120°/s, Tilt Preset Speed: 200°/s
Proportional ZoomSupport
Preset Quantity255
Preset FreezingSupport
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
PTZ Position DisplayON/OFF
3D PositioningSupport
IR
Irradiation DistanceUp to 300m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution3840x2160
Primary Stream30fps@(3840x2160, 3072x2048, 2592x1944, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
System
Alarm I/O2/2
RS485Support
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ AC 24V/3A ±10%
Power Consumption13.5W MAX/ 25.5W MAX(With IR on)
Weather Proof/
HousingUp to IP66-rated for weather-resistant performance / Vandal-proof IK10-rated Metal Housing(Optional)Surge Protection6KV
Dimensions/WeightΦ205mmX308mm/4Kg
Warranty2 Years/3 Years(Optional)
-
* Naming Convention
H - 30fps@5MP Series
R - High Frame Rate (60fps)
P - PoE Supported
B - H.265 Compression
Milesight H.265 Speed Dome Network Camera Datasheet_en.pdf
Milesight PTZ Network Camera User Manual.pdf
Milesight Network Camera Quick Start Guide.pdf
