Leading-edge H.265 Compression
-
New File System
Applied with the New Chennai WCT File System (MSFS), Chennai WCT NVRs bring completely new user-experience.
· Lock Record File, Tag Video and Playback File Management
· General, Event, Tag and Picture Playback
· Common Backup, Event Backup and Picture Backup
· NAS and Disk Group Function
-
Plug and Play

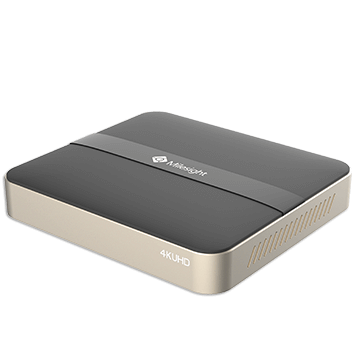

Chennai WCT Mini PoE NVR 1000 features 4 independent PoE ports for easy connection and configuration of network cameras, which will provide power to the camera while streaming video/audio/data over one single cable. The NVR will automatically detect, configure and play the live view of the network cameras once the cable is plugged, greatly eliminating the need for much time and expertise and achieving a virtually hassle-free installation process.
-
4K Video Viewing Experience
Chennai WCT 4K H.265 Mini PoE NVR Series introduces a whole new more smooth operation interface. When direct access to 4K network cameras, it can decode 4K real-time video and recording to provide users with ultra-high-definition video viewing experience.
-
Powerful Decoding and Recording Performance
Chennai WCT 4K H.265 Mini PoE NVR Series is an ideal for those applications requiring robust decoding and recording performance, for this series can support synchronously decoding up to 2-CH@4K UHD, 3-CH@5MP and 8-CH@1080P network cameras, and synchronously recording up to 9-CH 5MP high resolution cameras.
-
Dual Stream Recording
Dual Stream Recording enables the NVR to record in Primary+Secondary Stream. And in the remote playback, the Secondary Stream is recommended to use for better viewing experience.
-
Reliable ANR
Improving the reliability and stability of the storage, the function flexibly allows to automatically store video data on the network camera storage card when the network is disconnected, and retrieves them after recovery of the connection.
-

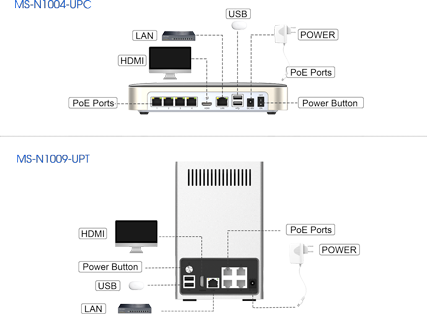

Versatile Interfaces

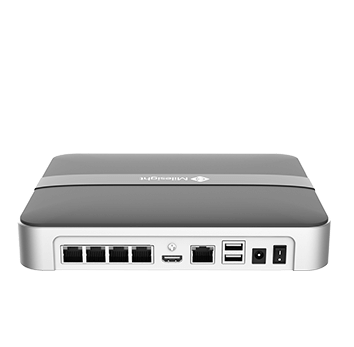

Though developed to take up as less space as possible, the 4K H.265 Mini PoE NVR comes with a whole array of ports such as an HDMI port, 2 USB ports, 4 PoE ports, and a LAN port.
-

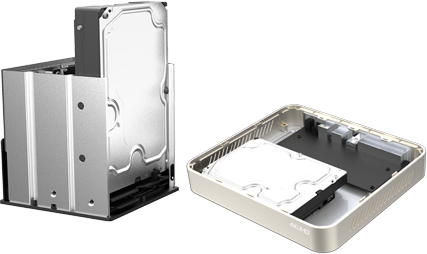

Up to 10TB Capacity
Chennai WCT 4K H.265 Mini PoE NVR includes 1 SATA interface, providing up to 10TB of plug-and-play internal hard disk storage.
-

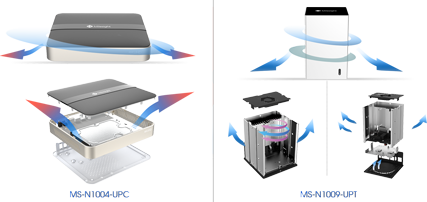

Excellent Heat Dissipation
The metal panel on the bottom of MS-N1004-UPC and the aluminum casing & the intelligent fan of MS-N1009-UPT improve the effect of heat dissipation. Moreover, applied with the ventilation holes on the side and bottom panels of MS-N1004-UPC and the rear and bottom panels of MS-N1009-UPT, Chennai WCT Mini PoE NVRs can easily drive airflow, offering excellent performance of cooling and ensuring great protection for components.
-
VCA
With 10 VCA functions availability, Chennai WCT NVRs label themselves as intelligent on the basis of the powerful file system MSFS.
-
Input
Network Video Input4-CH
Bandwidth Requirement40Mbps (Incoming)
40Mbps (Outgoing)Output
HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
Dual StreamSupport
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 4*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA1*SATA HDD (3.5”)
CapacityUp to 10TB capacity for each HDD
Record
Synchronous Recording4*5MP
Recording TypeContinuous, Motion Detection, Smart Event, Event (Motion Detection, Smart Event)
SnapshotManual Snapshot
PlaybackVideo Playback, Image Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 10M/100M
USB Interface2*USB 2.0
PoE Interface
Interface4*RJ45 10M/100M
Power Output≤40W
Supported StandardIEEE 802.3af/at
General
CompatibilityONVIF
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyDC 48V 1.3A
Consumption≤3.5W(Without HDD, without enabling PoE)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions220mm(W)X200mm(D)X43.6mm(H)
Weight0.2Kg
Warranty3/5 Years
-
Input
Network Video Input9-CH
Bandwidth Requirement90Mbps (Incoming)
90Mbps (Outgoing)Output
HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
Dual StreamSupport
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback2*(30fps@8MP), 2*(30fps@6MP), 3*(30fps@5MP), 4*(30fps@4MP), 5*(30fps@3MP), 8*(30fps@1080P), 9*(30fps@720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA1*SATA HDD (3.5”)
CapacityUp to 10TB capacity for each HDD
Record
Synchronous Recording9*5MP
Recording TypeContinuous, Motion Detection, Smart Event, Event (Motion Detection, Smart Event)
SnapshotManual Snapshot
PlaybackVideo Playback, Image Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 100M/1000M
USB Interface2*USB 2.0
PoE Interface
Interface4*RJ45 10M/100M
Power Output≤40W
Supported StandardIEEE 802.3af/at
General
CompatibilityONVIF
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyDC 48V 1.25A
Consumption≤6W(Without HDD, without enabling PoE)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions115mm(W)X115mm(D)X180mm(H)
Weight1.5Kg
Warranty3/5 Years
-
* Naming Convention
U - 4K
P - PoE
C/T/H - H.265 Compression
