Leading-edge H.265+ Compression
-
180° Panoramic View

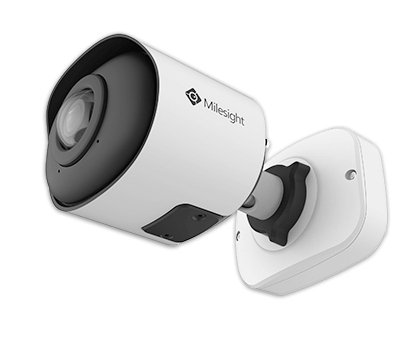

The 180° Panoramic H.265+ Mini Bullet Network Camera is perfect for whole picture viewing experience. It catches 180° horizontal coverage and 95° vertical coverage, achieving 180° panoramic viewing with only single sensor, which is a revolutionary creation in the bullet model.
-

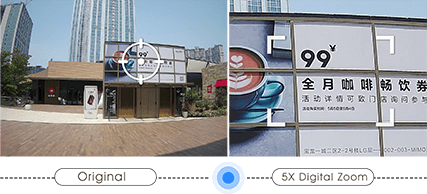

4K Ultra High Definition
The 180° Panoramic H.265+ Mini Bullet Network Camera features with 4K ultra high definition which better restores the images to guarantee superb image quality of 3840x2160. The camera is a special model which produces spherical image and will have the dewarp process to adjust the original images to offer presented images. Therefore, the high resolution is vital for the model.
-

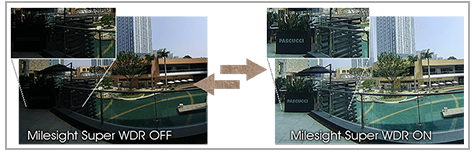

120dB Super WDR
Chennai WCT’s sensor-based WDR technology allows the 180° Panoramic H.265+ Mini Bullet Network Camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.
-

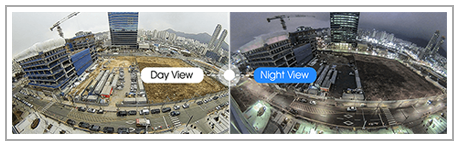

0.005Lux Ultra Low-light
The 180° Panoramic H.265+ Mini Bullet Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.005Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
-

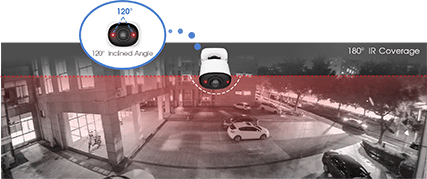

Revolutionary IR Performance
To maximize the IR performance, the 180° Panoramic H.265+ Mini Bullet Network Camera innovated both in the structure and technology. With two IR LEDs which has angles to truly realize the 180° IR coverage, the IR design also features adjustable illumination intensity IR LEDs to guarantee IR performance. And the IR reflection is ably avoided by the separated IR LEDs and Lens, achieving the best effect.
-
Video Content Analysis (VCA)
Chennai WCT VCA with 10 detection modes provides advanced, accurate smart video analysis for the 180° Panoramic H.265+ Mini Bullet Network Camera, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
-
Advanced Heat Map
With scenario-adaptable and flexible configurations, Chennai WCT Advanced Heat Map is embedded into the Panoramic Series, which can analyze customers movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.
-
IP67 & IK10
Supporting IP67-rated weather proofing and IK10-rated vandal proofing which are the leading level of the industry, the 180° Panoramic H.265+ Mini Bullet Network Camera is well protected against adverse impacts to ensure the robust performance.
-

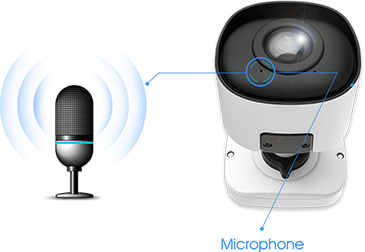

Advanced Built-in Microphone
With the built-in microphone which adopts the advanced codec, the 180° Panoramic H.265+ Mini Bullet Network Camera is able to provide clearer voice. It is worth mentioning that Chennai WCT uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance.
-

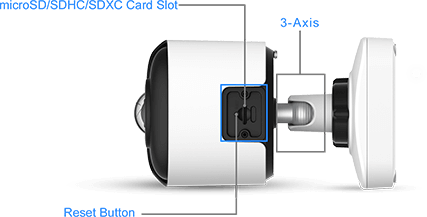

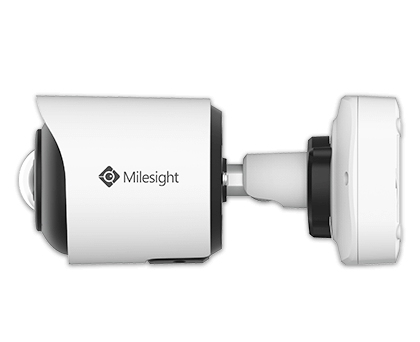

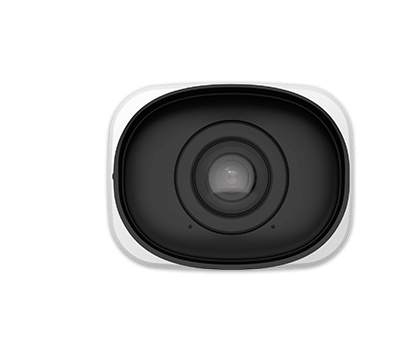

Exquisite Design
With ultra mini size of 95.8mmX74mmX158.5mm, the 180° Panoramic H.265+ Mini Bullet Network Camera is a truly mini bullet with no compromise on the functionality. The considerate structure and the 3-axis mechanical design make sure of the network camera’s best ease of use, realizing the greatest user experience.
-

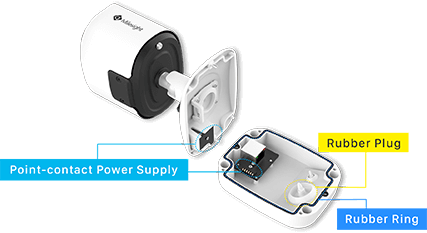

Integrated Junction Box
The well-designed Integrated Junction Box ensures efficient and simple installation. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of unique IP67-rated weather-proof design and pioneering Point-contact Power Supply, the Integrated Junction Box is able to offer stable operation and supreme user-experience.
-
SIP/VoIP Support
The 180° Panoramic H.265+ Mini Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
-
Camera
Name5MP 180° Panoramic H.265 Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens1.68mm @F2.0
MountM12
Field of ViewH180°/V95°
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR Distance180° IR Illumination Up to 15m
S/N>55dB
Video
Max. Image Resolution2592x1944(Original)
Primary Stream30fps(2592x1944)(Original), 30fps(2560x1440, 1920x1080, 1280x720)
Secondary Stream30fps(640x480, 640x360, 320x240)
Tertiary Stream30fps(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio InterfaceBuilt-in Microphone
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption4.1W MAX, 7.1W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Dimensions95.8mmX74mmX158.5mm
Weight630g
Warranty3/5 Years
-
Camera
Name4K 180° Panoramic H.265 Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens1.68mm @F2.0
MountM12
Field of ViewH180°/V86°
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR Distance180° IR Illumination Up to 15m
S/N>55dB
Video
Max. Image Resolution3840x2160
Primary Stream15fps(3840x2160, 3440x1936), 25fps(3200x1800), 30fps(2880x1620, 2560x1440, 1920x1080, 1280x720)
Secondary Stream30fps(704x576, 640x480, 640x360, 320x240)
Tertiary Stream30fps(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio InterfaceBuilt-in Microphone
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5.3W MAX, 8.3W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
Dimensions95.8mmX74mmX158.5mm
Weight630g
Warranty3/5 Years
-
* Naming Convention
P - PoE Supported
B - H.265 Compression
