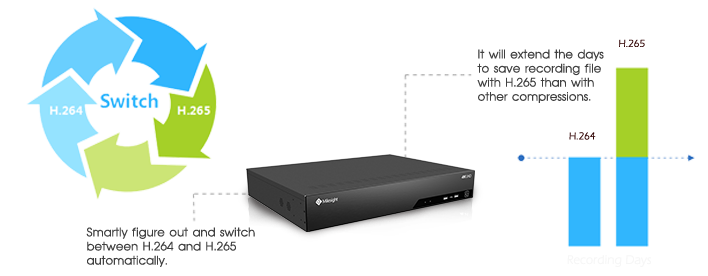

Leading-edge H.265 Compression
-
New File System
Applied with the New Chennai WCT File System (MSFS), Chennai WCT NVRs bring completely new user-experience.
· Lock Record File, Tag Video and Playback File Management
· General, Event, Tag and Picture Playback
· Common Backup, Event Backup and Picture Backup
· NAS and Disk Group Function -
Plug and Play

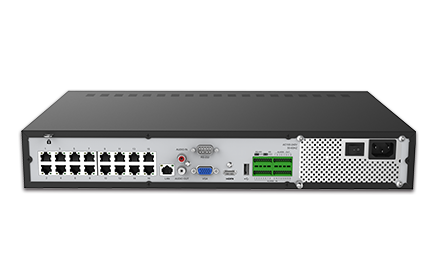

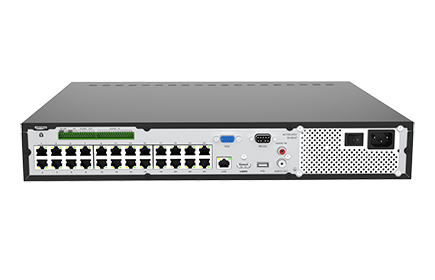

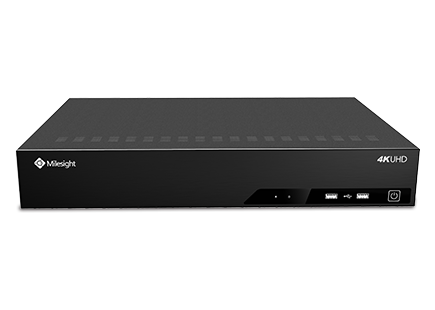

Chennai WCT 16/32-CH H.265 PoE NVR 7000 features 16/24 independent PoE ports for easy connection and configuration of network cameras, which will provide power to the camera while streaming video/audio/data over one single cable. The NVR will automatically detect, configure and play the live view of the network cameras once the cable is plugged, greatly eliminating the need for much time and expertise and achieving a virtually hassle-free installation process.
-
4K Video Viewing Experience
Chennai WCT 4K H.265 PoE NVR 7000 Series introduces a whole new more smooth operation interface. When direct access to 4K network cameras, it can decode 4K real-time video and recording to provide users with ultra-high-definition video viewing experience.
-
Powerful Decoding and Recording Performance
Chennai WCT 4K H.265 PoE NVR 7000 Series is an ideal for those applications requiring robust decoding and recording performance, for this series can support synchronously decoding 4-CH 4K UHD, 8-CH 4MP, 16-CH 1080P and 32-CH 720P network cameras, and synchronously recording up to 32-CH 5MP high resolution cameras.
-

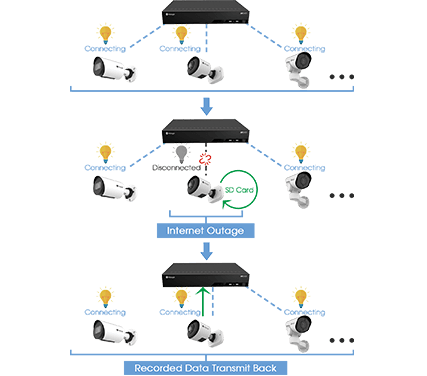

Reliable ANR
Improving the reliability and stability of the storage, the function flexibly allows to automatically store video data on the network camera storage card when the network is disconnected, and retrieves them after recovery of the connection.
-

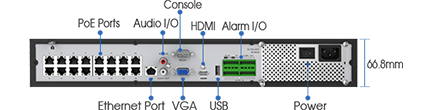

Versatile Interfaces
Chennai WCT 4K H.265 PoE NVR 7000 Series comes with a whole array of ports such as an HDMI port, a VGA port, 3 USB ports, 16/24 PoE ports, Alarm I/O, Audio I/O and a LAN port, etc. The full set of interfaces provide all necessary features for effective surveillance.
-

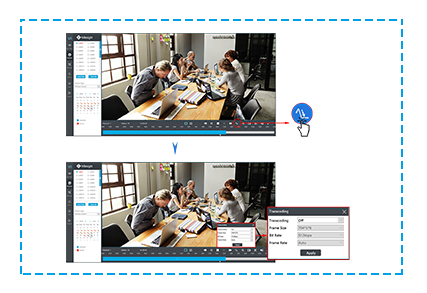

Transcoding
Transcoding could be set at M-Sight Pro or NVR web page to transcode the recorded stream into a smaller one, aiming to reduce the network load and provide better playback performance.
-

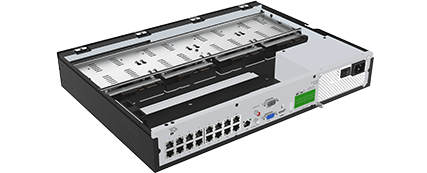

Optimized Hard Disk Installation
Hardware components are optimized to meet the demands for convenient and stable hard disk installation. With the 4 HDDs tightly screwed in a bracket and the bracket locked in the slots design, the hard disks are surprisingly simpler to mount and the installation time is greatly minimized.
-

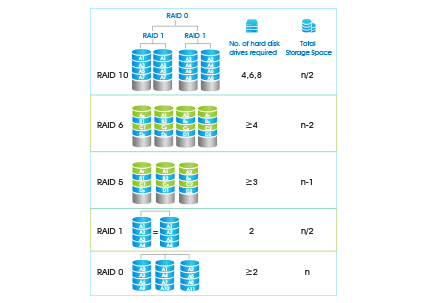

RAID 0/1/5/6/10 Supported
RAID (Redundant Array of Independent Disks) is a method of combining hard disks as a logical unit to achieve redundancy and greater speed of writing and reading data. There are 5 different RAID levels (0,1,5,6,10) supported by Chennai WCT 4K H.265 PoE NVR 7000 series, which can be configured according to user’s exact project requirements for data protection and storage space, providing reliability, high availability storage.
-
VCA
With 10 VCA functions availability, Chennai WCT NVRs label themselves as intelligent on the basis of the powerful file system MSFS.
-
Input
Network Video Input16-CH
Bandwidth Requirement160Mbps (Incoming)
160Mbps (Outgoing)Output
HDMI Output1-CH, Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
VGA Output1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
Dual StreamSupport
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA4*SATA HDD (3.5”)
CapacityUp to 10TB capacity for each HDD
Disk Array
Array TypeRAID0, RAID1, RAID5, RAID6, RAID10
Record
Synchronous Recording16*5MP
Recording TypeContinuous, Motion Detection, Alarm, Smart Event, Event (Motion Detection, Alarm, Smart Event)
SnapshotManual Snapshot
PlaybackVideo Playback, Image Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 100M/1000M
USB Interface1*USB 3.0; 2*USB 2.0
Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output1*RCA/1*RCA
Alarm Input16-CH
Alarm Output4-CH
PoE Interface
Interface16*RJ45 10M/100M
Power Output≤200W
Supported StandardIEEE 802.3af/at
General
CompatibilityONVIF
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyAC 100V∼240V 50Hz∼60Hz
Consumption≤15W(Without HDD, without enabling PoE)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X320mm(D)X66.8mm(H), Rack Mountable Chassis (1.5U Standard)
Weight5.0Kg
Warranty3/5 Years
-
Input
Network Video Input32-CH
Bandwidth Requirement256Mbps or 200Mbps(When RAID is enabled) (Incoming)
256Mbps or 200Mbps(When RAID is enabled) (Outgoing)Output
HDMI Output1-CH, Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
VGA Output1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
Dual StreamSupport
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA4*SATA HDD (3.5”)
CapacityUp to 10TB capacity for each HDD
Disk Array
Array TypeRAID0, RAID1, RAID5, RAID6, RAID10
Record
Synchronous Recording32*5MP
Recording TypeContinuous, Motion Detection, Alarm, Smart Event, Event (Motion Detection, Alarm, Smart Event)
SnapshotManual Snapshot
PlaybackVideo Playback, Image Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 100M/1000M
USB Interface1*USB 3.0; 2*USB 2.0
Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard
Audio Input/Output1*RCA/1*RCA
Alarm Input16-CH
Alarm Output4-CH
PoE Interface
Interface24*RJ45 10M/100M
Power Output≤200W
Supported StandardIEEE 802.3af/at
General
CompatibilityONVIF
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyAC 100V∼240V 50Hz∼60Hz
Consumption≤22W(Without HDD, without enabling PoE)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X390mm(D)X66.75mm(H), Rack Mountable Chassis (1.5U Standard)
Weight4.89Kg
Warranty3/5 Years
-
* Naming Convention
U - 4K
P - PoE
T/H - H.265 Compression
