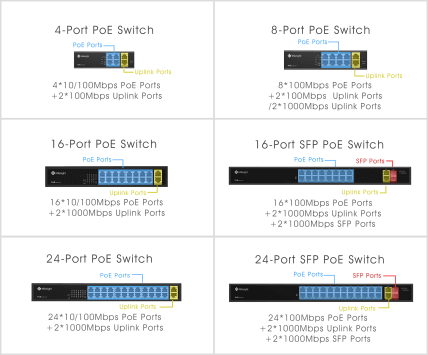

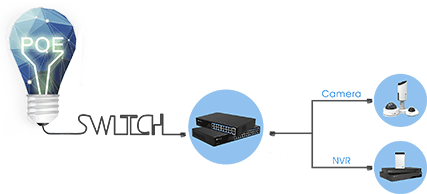

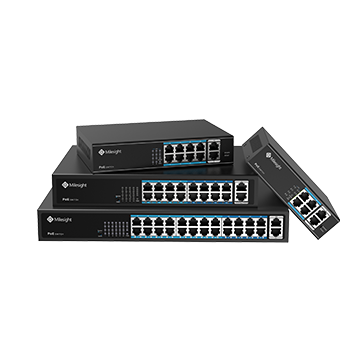

Versatile Ports
With a range of PoE ports form 4, 8, 16 to maximum 24 and 2 SFP ports, Milesight PoE Switch Series provides flexible choices for various applications. It automatically recognizes the power receiving devices and offers power. Also, transmitting the data over one single Ethernet cable, it simplifies the network deployment in remote areas without power outlet.
-
Smart PoE Power Supply
Featuring multiple 10/100Mbps PoE ports which support IEEE 802.3af/at protocol and 2 uplink ports, the Milesight PoE Switch Series provides maximum power budget of 400W for all PoE ports and 30W for every single PoE port respectively, allowing users to have several different camera variations configured.
-
Superb Transmission
With up to 14.8Gbps switching capacity, non-blocking design and full link-speed forwarding, Milesight PoE Switch Series is able to provide fluent transmission. At the same time, its reliability of data transmission is well guaranteed by the self-adaption ports which support both IEEE 802.3x Full Duplex Communication and Backpressure Half Duplex Communication.
-

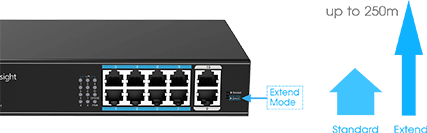

Flexible Extend Mode
With the extend mode, the PoE Switch Series is able to offer more flexible choices for long range transmission, extending the distance up to 250m, which is greatly helpful to bring better user experience.
-

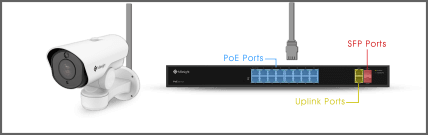

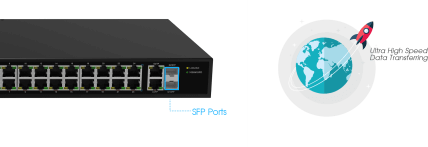

SFP Uplink Port
With SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring.
-
Surge Protection
Reaching 4KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
-

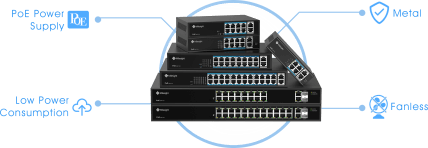

Reliable & Safe Performance
Abide by safety requirements of industrial standard, the Milesight PoE Switch Series is definitely reliable to bring safe perfor-mance. The exquisite metal housing, fanless design, low power consumption and continuous PoE power supply guarantee the efficient and stable running.
-
Easy to Use
The plug and play with no configuration makes the maintaining as easy as ABC. With the indicator lights of PWR and Link/Act, users can easily get the working status of the connected devices. All those will have no doubt to simply the use.
-

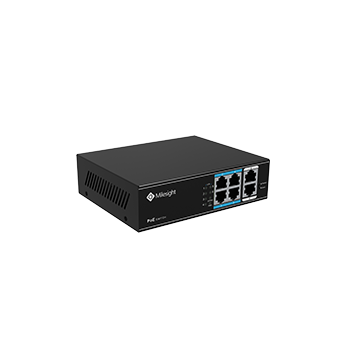

Ports4X10/100Mbps PoE ports (RJ45) + 2X100Mbps uplink ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3xSwitching Capacity1.6Gbps (non-blocking)
Packet Forwarding Rate @64byte0.89Mpps
Packet Forwarding Cache768K
MAC1K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 1APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 65W
Max capacity for single port: 30WFunctional SwitchStandard Mode: Port 1~6: 10/100Mbps auto-sensing @100 meters
Extend Mode: Port 1~4: 10Mbps @250 meters & Port 5~6: 100Mbps @ 100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)Cooling Fan-
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity10%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions142.5mm(W)*115mm(D)*40mm(H)
Weight0.5kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-

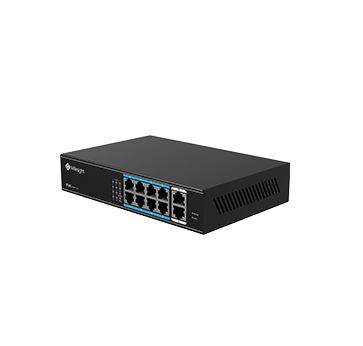

Ports8X10/100Mbps PoE ports (RJ45) + 2X100Mbps uplink ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3xSwitching Capacity2Gbps (non-blocking)
Packet Forwarding Rate @64byte1.488Mpps
Packet Forwarding Cache1.25M
MAC2K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 2.2APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 120W
Max capacity for single port: 30WFunctional SwitchStandard Mode: Port 1~10: 10/100Mbps auto-sensing @100 meters
Extend Mode: Port 1~8: 10Mbps @250 meters & Port 9~10: 100Mbps @100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)Cooling Fan-
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity10%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions195mm(W)*130mm(D)*40mm(H)
Weight0.7kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-
Ports8X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3xSwitching Capacity11.8Gbps (non-blocking)
Packet Forwarding Rate @64byte4.17Mpps
Packet Forwarding Cache2M
MAC2K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 2.2APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 120W
Max capacity for single port: 30WFunctional SwitchStandard Mode: Port 1~10: 10/100Mbps auto-sensing @100 meters
Extend Mode: Port 1~8: 10Mbps @250 meters & Port 9~10: 1000Mbps @100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)Cooling Fan-
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity10%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions195mm(W)*130mm(D)*40mm(H)
Weight0.7kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-
Ports16X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3xSwitching Capacity14.8Gbps (non-blocking)
Packet Forwarding Rate @64byte5.36Mpps
Packet Forwarding Cache4M
MAC16K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 2.5APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 200W
Max capacity for single port: 30WFunctional SwitchStandard Mode: Port 1~16: 10/100Mbps auto-sensing @100 meters & Port 17~18: 1000Mbps @100 meters
Extend Mode: Port 1~8: 10/100Mbps auto-sensing @100 meters & Port 9~16: 10Mbps @250 meters & Port 17~18: 1000Mbps @100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)Cooling Fan1
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity10%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions270.4mm(W)*181mm(D)*44mm(H)
Weight1.5kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-

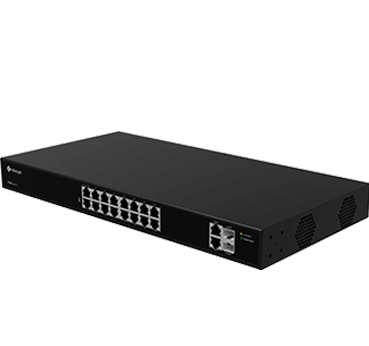

Ports16X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports + 2X1000Mbps SFP ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-T
IEEE802.3xSwitching Capacity14.8Gbps (non-blocking)
Packet Forwarding Rate @64byte5.36Mpps
Packet Forwarding Cache4M
MAC16K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 3APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 250W
Max capacity for single port: 30WFunctional SwitchPort 1~16: 10/100Mbps auto-sensing @100 meters & Port 17~18: 1000Mbps @100 meters & Port 19~20: 1000Mbps
IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)Cooling Fan1
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity5%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions440mm(W)*225mm(D)*44mm(H)
Weight4.4kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-
Ports24X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3xSwitching Capacity14.8Gbps (non-blocking)
Packet Forwarding Rate @64byte6.55Mpps
Packet Forwarding Cache4M
MAC16K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 5APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 400W
Max capacity for single port: 30WFunctional SwitchStandard Mode: Port 1~24: 10/100Mbps auto-sensing @100 meters & Port 25~26: 1000Mbps @100 meters
Extend Mode: Port 1~16: 10/100Mbps auto-sensing @100 meters & Port 17~24: 10Mbps @250 meters & Port 25~26: 1000Mbps @100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)Cooling Fan1
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity10%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions329.8mm(W)*204mm(D)*44mm(H)
Weight2.2kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-

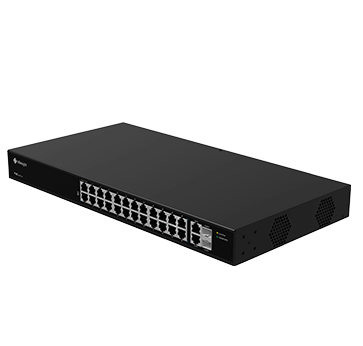

Ports24X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports + 2X1000Mbps SFP ports
StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-T
IEEE802.3xSwitching Capacity14.8Gbps (non-blocking)
Packet Forwarding Rate @64byte6.55Mpps
Packet Forwarding Cache4M
MAC16K
Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 5APoE StandardIEEE802.3af/at
Max. PoE PowerMax capacity: 400W
Max capacity for single port: 30WFunctional SwitchPort 1~24: 10/100Mbps auto-sensing @100 meters & Port 25~26: 1000Mbps @100 meters & Port 27~28: 1000Mbps
IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)Cooling Fan1
Operating Temperature-20°∼55°C
Storage Temperature-40°∼75°C
Operating/Storage Humidity5%∼90%RH(non-condensing)
Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30Dimensions440mm(W)*225mm(D)*44mm(H)
Weight4.5kg
Installation MethodDesktop Type, Wall Mounted Type
Warranty2 years
-
* Naming Convention
E - 10/100Mbps Uplink Port
G - Gigabit Uplink Port
L - Extend Mode
F - Optical Fiber Port(SFP)
