Leading-edge H.265+ Compression
-
License Plate Recognition (LPR/ANPR)
Embedded in the LPR ABF Pro Box Network Camera, the LPR allows the camera to capture real-time license plate in both the highest levels of glare and the darkest hours of the night.
-
120fps
With the industry leading frame rate reaching 120fps, the LPR ABF Pro Box Network Camera can easily catch images with no latency despite of the high-speed movement.
-
3 in 1 Super WDR Pro - 140dB
Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
-
Powerful Auto Back Focus
Equipped with ABF technology, Milesight LPR H.265+ ABF Pro Box Network Camera are able to adjust the position of the image sensor achieving optimal focus to complete the last step of focusing by pressing only one button.
-
0.002Lux Ultra Low-light
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0.001Lux (B/W), and near infrared light environments without any supplementary lighting.
-

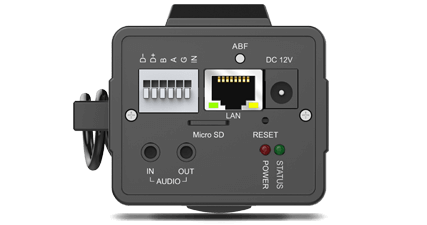

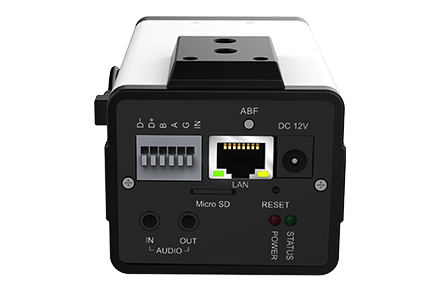

Versatile Interfaces
In the base, the LPR H.265+ ABF Pro Box Network Camera comes with a whole array of built-in interfaces such as PTZ control, Alarm I/O, Ethernet port, power connector, SD card slot, reset button, Audio I/O, power and error LEDs. Such complete interface design is available to meet your different kinds of video surveillance needs.
-
SIP/VoIP Support
Milesight LPR H.265+ ABF Pro Box Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
-
Camera

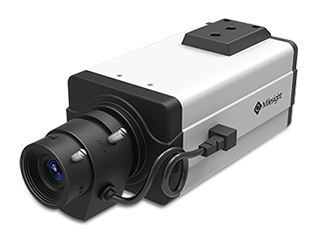

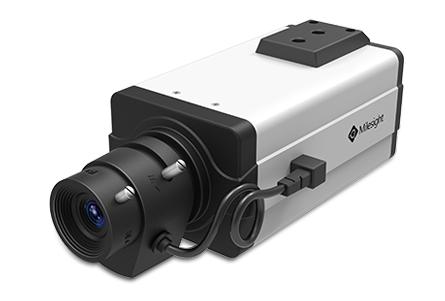

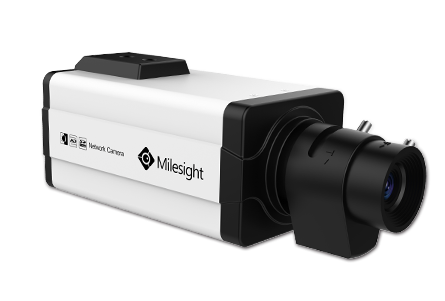

Name2MP LPR H.265 ABF Pro Box Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, B/W: 0.001Lux @F1.2
WDR140dB Super WDR (Super WDR Pro is optional for Q Series)
MountC/CS
IrisP-Iris/DC-Iris
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
S/N>55dB
Max. Vehicle Speed120km/h
Video
Max. Image Resolution1920x1080
Primary Stream120fps@(1920x1080)(Optional for Q Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O1/1
Auto Back FocusSupport(Optional)
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
License Plate RecognitionSupport
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption2.5W MAX for -PB Series7W MAX for -EPB Series
Dimensions115mmX62mmX50mm
Weight407g
Warranty3/5 Years
-
* Naming Convention
Q - High Frame Rate (120fps)
R - High Frame Rate (60fps)
E - Enterprise Edition
L - License Plate Recognition (LPR)
P - PoE Supported
B - H.265 Compression
Milesight LPR H.265 ABF Pro Box Network Camera Datasheet_en.pdf
Milesight Network Camera User Manual.pdf
Milesight Network Camera Quick Start Guide.pdf
A Milesight Technology Moment Auto Back Focus
Milesight LPR Supported Region List.pdf
