Leading-edge H.265+ Compression
-
Video Content Analysis (VCA)
Chennai WCT VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
-

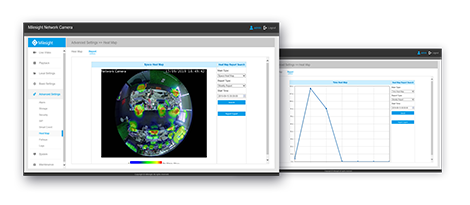

Advanced Heat Map
With scenario-adaptable and flexible configurations, Chennai WCT Advanced Heat Map is embedded into the Panoramic Series, which can analyze customers movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.
-

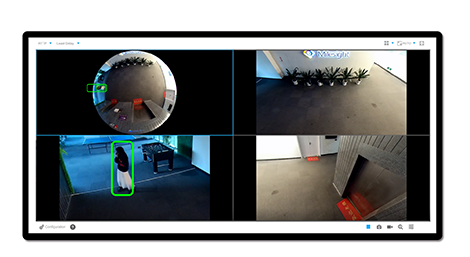

Fisheye Auto Tracking
Fisheye Auto Tracking function is embedded into the Fisheye Camera, which ideally realizes the Auto Tracking in the 360° Panoramic View to monitor the wide areas. Once the function is enabled, the camera can perform the digital Pan/Tilt/Zoom under Regional Views to track the moving objects automatically to avoid any details missing for comprehensive securing.
-

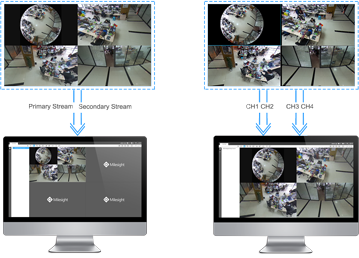

Two Kinds of Compatible Modes
Chennai WCT 360° Panoramic H.265+ Fisheye Network Camera offers Bundle-Stream Mode and Multi-Channel Mode to meet different needs. The Bundle-Stream Mode combines all the channels into one and sends to NVR or VMS, which is easy for compatibility. The Multi-Channel Mode sends all the original channels to NVR or VMS, so the channels can be modified separately.
-

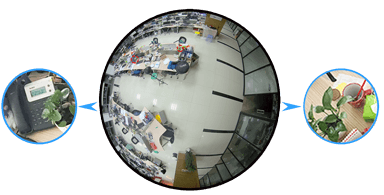

5/12MP Ultra High Resolution
360° Panoramic H.265+ Fisheye Network Camera features with 5/12MP ultra high resolution better restoring the images to guarantee superb image quality. The camera is a special model which produces spherical image and will have the dewarp process to adjust the original images to fit human eyes. The process may cause the pixel losing. That is why the high resolution is vital for a Fisheye Network Camera.
-
Powerful Decoding Capacity
Chennai WCT 360° Panoramic H.265+ Fisheye Network Camera features powerful decoding ability, which could provide high performance in each decoding channels, such as up to 25fps@12MP under 1O and up to 30fps@3MP for each channel under 4R.
-

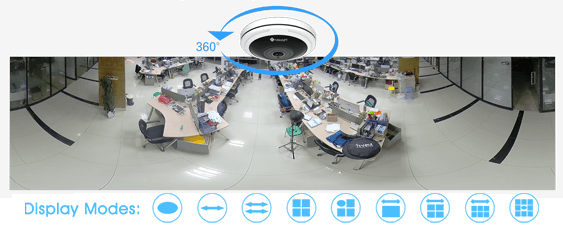

360° Panoramic Experience
Milesight 360° Panoramic H.265+ Fisheye Network Camera is born to bring panoramic experience, which would easily reach the effect of over 4 regular network cameras with higher efficiency, bringing 360° surround view with zero blind spots. At the same time, it brings up to 9 display modes including 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 9R, which fit for your different viewing needs.
-

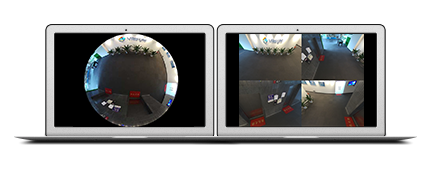

Stunning Dewarping Ability
With superior chipset, Chennai WCT 360° Panoramic H.265+ Fisheye Network Camera has outstanding dewarping ability, which could dewarp the original Fisheye View into other display modes while remaining the high image quality for different kinds of viewing needs.
-
Smart IR II Technology
The Smart IR II Technology has been upgraded to provide videos with a viewing range of up to 15m. Three LEDs work as High Beams and three LEDs work as Low Beams for better image clarity and quality. The advanced IR technology allows even IR light distribution in different situation and the brightness of High Beams and Low Beams can be adjusted manually. Moreover, with the IR anti-reflection panel, the infrared light transmittance is highly increased.
-

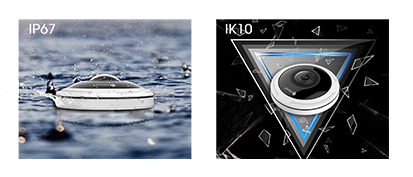

Robust & Reliable Performance
Featuring IP67 Weather-proof and IK10 Vandal-proof, the camera shields its sensitive electronics from dust and water, which ensures stable operation in all weather conditions. Also protect itself from the unexpected violence, guaranteeing the smooth running to avoid potential damages.
-

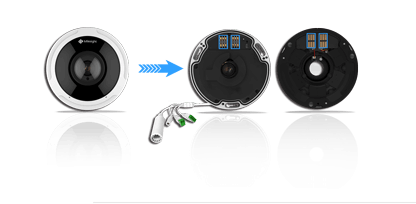

Exquisite Design
The body design of the camera insists on the idea of neatness and exquisiteness. As a whole, the screw-free design and Multiple-interface Cable keep the body neat. The Power Supply Board replaced the traditional way of power supply with cable which freeing interior space, making the camera an art of surveillance inside and out.
-

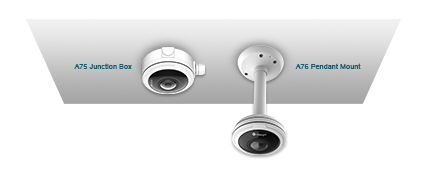

Various Accessories For Easy Installation
Chennai WCT offers various installation accessories to make it easy to install Milesight 360° Panoramic H.265+ Fisheye Network Camera. The Junction Box (A75) greatly helps to easily connect and conceal the cables. And the Pendant Mount (A76) used to install the camera on an ceiling or vertical structure.
- Click to See the Video of Fisheye Camera
-
Camera
Name5MP H.265 Fisheye Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens1.25mm@F2.0
MountM12
Field of ViewCeiling Mount:360°; Wall Mount:180°; Flat Mount:360°
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 15m
S/N>55dB
Display
Mount ModeCeiling Mount / Wall Mount / Flat Mount
Decoding ModeOn-board Dewarping/Client-side Dewarping
Display ModeFisheye View, 360 Panorama View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, Panorama View+3PTZ
Video
Max. Image Resolution2592x1944
Primary StreamFisheye View:30fps@(2592x1944, 1944x1944, 1536x1536, 1280x1280)
Secondary StreamFisheye View:30fps@(1280x960, 1024x1024, 720x720, 320x320)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/OBuilt-in Microphone
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Heat Map, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.
Event ActionFTP upload, SMTP upload, SD card record, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption4.2W MAX, 6.6W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ140mmX45.4mm
Weight1100g
Warranty3/5 Years
-
Camera
Name12MP H.265 Fisheye Network Camera
Image Sensor1/1.7" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Lens1.98mm@F2.8
MountM12
Field of ViewCeiling Mount:360°; Wall Mount:180°; Flat Mount:360°
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 15m
S/N>55dB
Display
Mount ModeCeiling Mount / Wall Mount / Flat Mount
Decoding ModeOn-board Dewarping/Client-side Dewarping
Display ModeFisheye View, 360 Panorama View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, Panorama View+3PTZ, Fisheye + Panorama View+ 3PTZ
Video
Max. Image Resolution4000x3000
Primary StreamFisheye View:25fps@(4000x3000), 30fps(3000x3000, 2560x2560, 1920x1920, 1280x1280)
Secondary StreamFisheye View:30fps@(1280x960, 1024x1024, 720x720, 320x320)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/OBuilt-in Microphone and Audio Input/Output interface
Network
Communication1*RJ45 10M/100M/1000M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O1/1
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Heat Map, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP upload, SMTP upload, SD card record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption4.8W MAX, 8W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ140mmX45.4mm
Weight1100g
Warranty3/5 Years
-
* Naming Convention
P - PoE Supported
B - H.265 Compression
