Leading-edge H.265+ Compression
-
12X Optical Zoom
The 12X Optical Zoom can zoom in to distant subjects while still maintaining the clarity, delivering high quality video over the entire image.
-
License Plate Recognition (LPR/ANPR)
Embedded in the LPR 12X AF Motorized Pro Bullet Network Camera, the LPR allows the camera to capture real-time license plate in both the highest levels of glare and the darkest hours of the night.
-

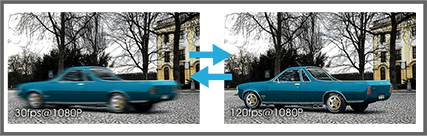

120fps
With the industry leading frame rate reaching 120fps, the LPR 12X AF Motorized Pro Bullet Network Camera can easily catch images with no latency despite of the high-speed movement.
-

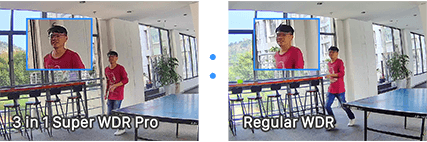

3 in 1 Super WDR Pro - 140dB
Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
-
3rd Generation Dot Matrix IR LEDs
In order to provide superior night visibility, Milesight LPR 12X H.265+ AF Motorized Pro Bullet Network Camera employs the 3rd generation dot matrix IR LEDs, essentially guaranteeing excellent image quality, long lifespan and energy efficiency.
-
0.002Lux Ultra Low-light
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
-
Smart IR II Technology
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 120m. Six LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.
-

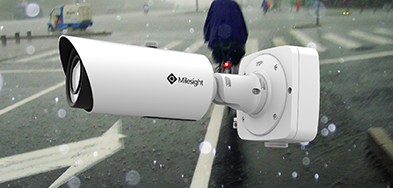

IP67 Weather-proof Housing
IP67-rated housing of the LPR 12X H.265+ AF Motorized Pro Bullet Network Camera shields its sensitive electronics from dust and water, which ensures stable operation in all weather conditions.
-
PTFE Membrane
Applying the PTFE membrane to ventilation holes, the LPR 12X H.265+ AF Motorized Pro Bullet Network Camera housing is designed to keep moisture and dust out while allowing air to flow into and out of the device, which effectively ensures pressure equalization in the enclosures and prevents fogging and a buildup of condensation of the lenses, guaranteeing supreme image clarity.
-
Integrated Cable Management Bracket
In the base, there are power interface, PoE port and other interfaces. Thanks to integrated cable management, it takes no effort in installation.
-

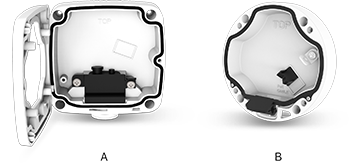

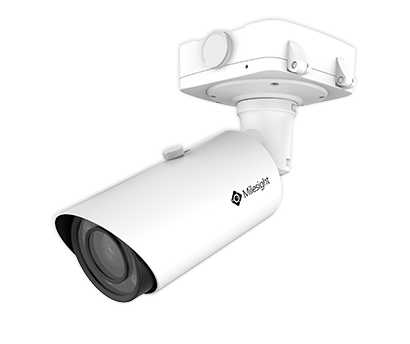

Integrated Junction Box
A: The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
B: The round design of the junction box conceals the cables inside, making it look more neat and clear. -
SIP/VoIP Support
Milesight LPR 12X H.265+ AF Motorized Pro Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
-
Camera
Name2MP LPR 12X H.265 AF Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, B/W: 0Lux with IR on
WDR140dB Super WDR (Super WDR Pro is optional for Q Series)
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 120m
S/N>55dB
Max. Vehicle Speed120km/h
Lens
Lens5.3∼64mm, 12X Optical Zoom
Field of ViewH61°∼H5°/D69°∼D5°/V36°∼V2°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6∼F2.8
Iris ControlAuto
Video
Max. Image Resolution1920x1080
Primary Stream120fps@(1920x1080)(Optional for Q Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O1/1
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
License Plate RecognitionSupport
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5.5W MAX, 11W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
* Naming Convention
Q - High Frame Rate (120fps)
R - High Frame Rate (60fps)
E - Enterprise Edition
L - License Plate Recognition (LPR)
P - PoE Supported
B - H.265 Compression
