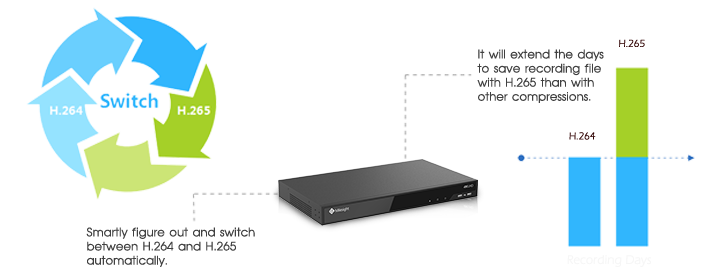

Leading-edge H.265 Compression
-
New File System
Applied with the New Milesight File System (MSFS), Milesight NVRs bring completely new user-experience.
· Lock Record File, Tag Video and Playback File Management
· General, Event, Tag and Picture Playback
· Common Backup, Event Backup and Picture Backup
· NAS and Disk Group Function
-
4K Video Viewing Experience

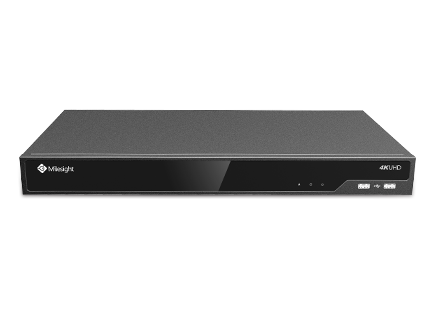

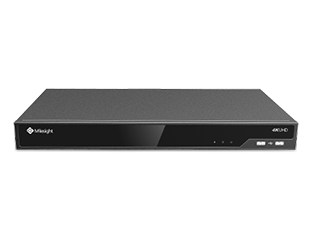

Milesight 4K H.265 Pro NVR 5000 Series introduces a whole new more smooth operation interface. When direct access to 4K network cameras, it can decode 4K real-time video and recording to provide users with ultra-high-definition video viewing experience.
-
Powerful Decoding and Recording Performance
Milesight 4K H.265 Pro NVR 5000 Series is an ideal for those applications requiring robust decoding and recording performance, for this series can support synchronously decoding 2-CH 4K UHD, 4-CH 4MP and 8-CH 1080P network cameras, and synchronously recording up to 16-CH 5MP high resolution cameras.
-
Dual Stream Recording
Dual Stream Recording enables the NVR to record in Primary+Secondary Stream. And in the remote playback, the Secondary Stream is recommended to use for better viewing experience.
-
Reliable ANR
Improving the reliability and stability of the storage, the function flexibly allows to automatically store video data on the network camera storage card when the network is disconnected, and retrieves them after recovery of the connection.
-
Versatile Interfaces

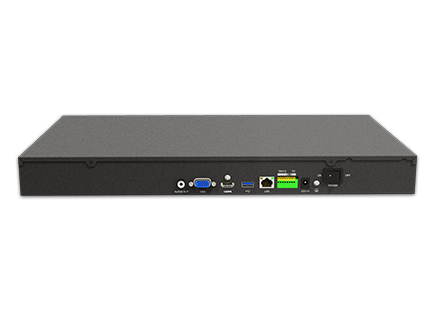

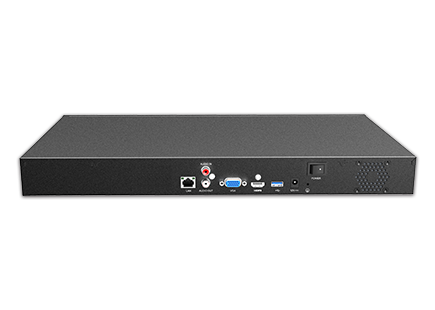

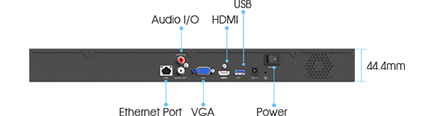

Milesight 4K H.265 Pro NVR 5000 Series comes with a whole array of ports such as an HDMI port, a VGA port, Alarm I/O and a LAN port, etc. The full set of interfaces provide all necessary features for effective surveillance.
-
VCA
With 10 VCA functions availability, Milesight NVRs label themselves as intelligent on the basis of the powerful file system MSFS.
-
Input
Network Video Input8-CH
Bandwidth Requirement80Mbps (Incoming)
80Mbps (Outgoing)Output
HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
VGA Output1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
Dual StreamSupport
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback2*(30fps @8MP), 2*(30fps@6MP), 3*(30fps@5MP), 4*(30fps @4MP), 5*(30fps @3MP), 8*(30fps@1080P), 8*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA2*SATA HDD (3.5”)
CapacityUp to 10TB capacity for each HDD
Record
Synchronous Recording8*5MP
Recording TypeContinuous, Motion Detection, Alarm, Smart Event, Event (Motion Detection, Alarm, Smart Event)
SnapshotManual Snapshot
PlaybackVideo Playback, Image Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 100M/1000M
USB Interface1*USB 3.0; 2*USB 2.0
Audio Input/Output-/1*RCA
Alarm Input4-CH
Alarm Output1-CH
General
CompatibilityONVIF
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyDC 12V 50Hz∼60Hz
Consumption≤10W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X251mm(D)X44.4mm(H), Rack Mountable Chassis(1.0U Standard)
Weight2.6Kg
Warranty3/5 Years
-
Input
Network Video Input16-CH
Bandwidth Requirement160Mbps (Incoming)
160Mbps (Outgoing)Output
HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
VGA Output1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
Dual StreamSupport
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback2*(30fps @8MP), 2*(30fps@6MP), 3*(30fps@5MP), 4*(30fps @4MP), 5*(30fps @3MP), 8*(30fps@1080P), 16*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA2*SATA HDD (3.5”)
CapacityUp to 10TB capacity for each HDD
Record
Synchronous Recording16*5MP
Recording TypeContinuous, Motion Detection, Alarm, Smart Event, Event (Motion Detection, Alarm, Smart Event)
SnapshotManual Snapshot
PlaybackVideo Playback, Image Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 100M/1000M
USB Interface1*USB 3.0; 2*USB 2.0
Audio Input/Output-/1*RCA
Alarm Input4-CH
Alarm Output1-CH
General
CompatibilityONVIF
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyDC 12V 50Hz∼60Hz
Consumption≤10W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions440mm(W)X251mm(D)X44.4mm(H), Rack Mountable Chassis(1.0U Standard)
Weight2.6Kg
Warranty3/5 Years
-
* Naming Convention
U - 4K
T/H - H.265 Compression
