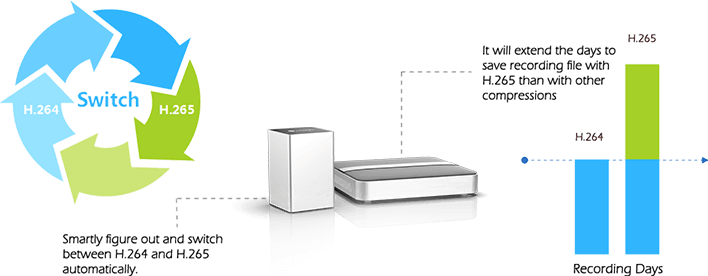

Leading-edge H.265 Compression
-
New File System
Applied with the New Chennai WCT File System (MSFS), Chennai WCT NVRs bring completely new user-experience.
· Lock Record File, Tag Video and Playback File Management
· General, Event, Tag and Picture Playback
· Common Backup, Event Backup and Picture Backup
· NAS and Disk Group Function -

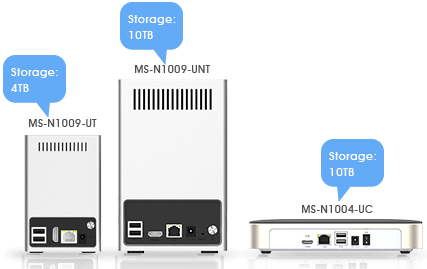

Three Models Available
With three models of MS-1004-UC, MS-1009-UT and MS-1009-UNT available, the Mini NVR Series boast to offer better performance especially in the storage. The storage up to 10TB would satisfy different market demands and bring different user experience.
-
4K Video Viewing Experience
Chennai WCT 4K H.265 Mini NVR introduces a whole new more smooth operation interface. When direct access to 4K network cameras, it can decode 4K real-time video and recording to provide users with ultra-high-definition video viewing experience.
-

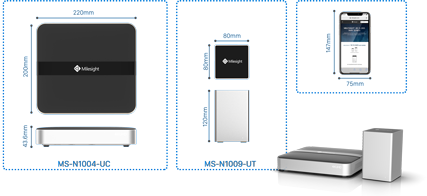

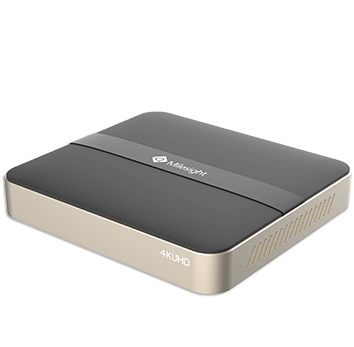

Ultra-mini Size

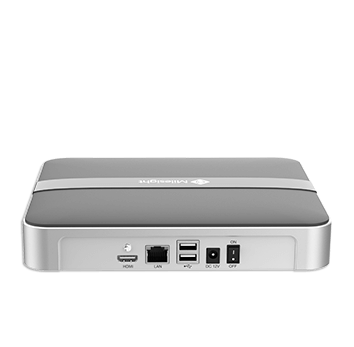

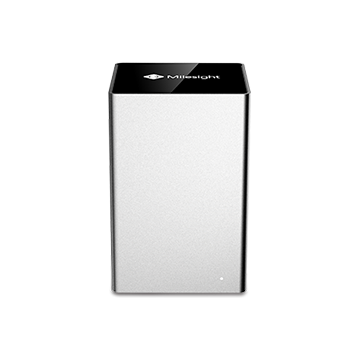

With dimensions of only 80mm*80mm*120mm for MS-N1009-UT and 200mm*220mm*43.6mm for MS-N1004-UC, they both feature compact and discreet design which provides the easier and simpler way to keep your home and business safe.
-
High Decoding Capability
Though it’s a Mini NVR, the decoding capability reaches professional-level, which reaches up to 8-CH@1080P.
-
Dual Stream Recording
Dual Stream Recording enables the NVR to record in Primary+Secondary Stream. And in the remote playback, the Secondary Stream is recommended to use for better viewing experience.
-
Reliable ANR
Improving the reliability and stability of the storage, the function flexibly allows to automatically store video data on the network camera storage card when the network is disconnected, and retrieves them after recovery of the connection.
-

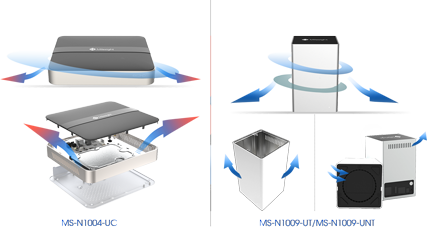

Revolutionary Thermal Design
The metal panel on the bottom of MS-N1004-UC and the aluminum casing of MS-N1009-UT dissipate the heat effectively. Moreover, the ventilation holes on the side and bottom panels of MS-N1004-UC and the rear and bottom panels of MS-N1009-UT maximize airflow and carry the heat away, ensuring heat to transfer under a variety of different load conditions.
-

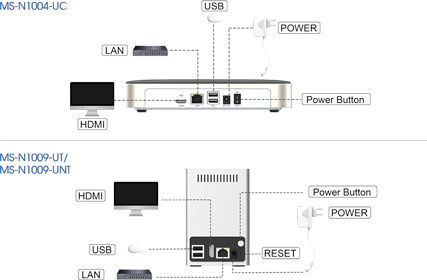

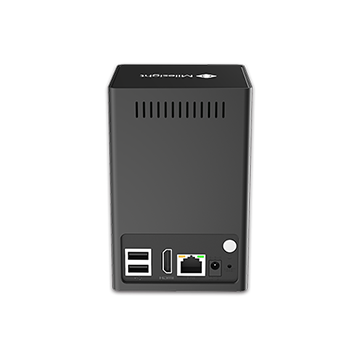

Versatile Interfaces
Though developed to take up as less space as possible, the 4K Mini NVR comes with a whole array of ports such as an HDMI port, 2 USB ports and a LAN port.
-

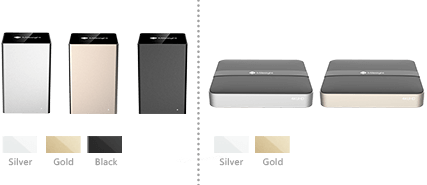

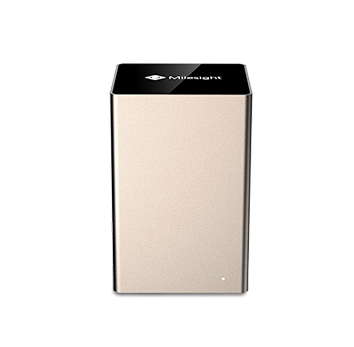

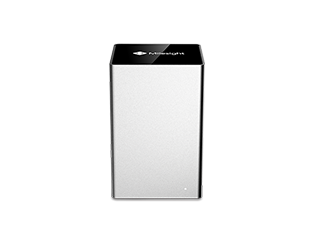

Colors Available
Available in Silver, Gold, and Black, Milesight Mini NVR provides more choices for your preference.
-
VCA
With 10 VCA functions availability, Milesight NVRs label themselves as intelligent on the basis of the powerful file system MSFS.
-
Input
Network Video Input4-CH
Bandwidth Requirement40Mbps (Incoming)
40Mbps (Outgoing)Output
HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
Dual StreamSupport
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 4*(30fps @720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA1*SATA HDD (3.5”)
CapacityUp to 10TB capacity for each HDD
Record
Synchronous Recording4*5MP
Recording TypeContinuous, Motion Detection, Smart Event, Event (Motion Detection, Smart Event)
SnapshotManual Snapshot
PlaybackVideo Playback, Image Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 10M/100M
USB Interface2*USB 2.0
General
CompatibilityONVIF
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyDC 12V 2A
Consumption≤2.3W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions220mm(W)X200mm(D)X43.6mm(H)
Weight0.19Kg
Warranty3/5 Years
-
Input
Network Video Input9-CH
Bandwidth Requirement90Mbps (Incoming)
90Mbps (Outgoing)Output
HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
Dual StreamSupport
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback2*(30fps@8MP), 2*(30fps@6MP), 3*(30fps@5MP), 4*(30fps@4MP), 5*(30fps@3MP), 8*(30fps@1080P), 9*(30fps@720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA2*SATA HDD (2.5”)
CapacityUp to 2TB capacity for each HDD
Record
Synchronous Recording9*5MP
Recording TypeContinuous, Motion Detection, Smart Event, Event (Motion Detection, Smart Event)
SnapshotManual Snapshot
PlaybackVideo Playback, Image Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 100M/1000M
USB Interface2*USB 2.0
General
CompatibilityONVIF
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyDC 12V 1.5A
Consumption≤6W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions80mm(W)X80mm(D)X120mm(H)
Weight0.85Kg
Warranty3/5 Years
-
Input
Network Video Input9-CH
Bandwidth Requirement90Mbps (Incoming)
90Mbps (Outgoing)Output
HDMI Output1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
Dual StreamSupport
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback2*(30fps@8MP), 2*(30fps@6MP), 3*(30fps@5MP), 4*(30fps@4MP), 5*(30fps@3MP), 8*(30fps@1080P), 9*(30fps@720P)
Format
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Audio FormatG.711/AAC/G.722/G.726
Storage
SATA1*SATA HDD (3.5”)
CapacityUp to 10TB capacity for each HDD
Record
Synchronous Recording9*5MP
Recording TypeContinuous, Motion Detection, Smart Event, Event (Motion Detection, Smart Event)
SnapshotManual Snapshot
PlaybackVideo Playback, Image Playback
BackupVideo backup, Image Backup
Network
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface1*RJ45 100M/1000M
USB Interface2*USB 2.0
General
CompatibilityONVIF
Advanced FunctionANR
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
Keyboard ControlMilesight Keyboard(MS-K01)
Power SupplyDC 12V 2A
Consumption≤5W(Without HDD)
Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions115mm(W)X115mm(D)X180mm(H)
Weight1.1Kg
Warranty3/5 Years
-
* Naming Convention
U - 4K
C/T/H - H.265 Compression
