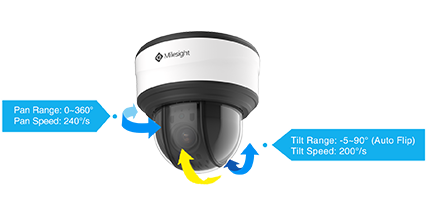

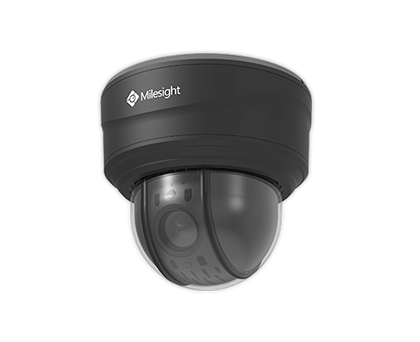

Advanced PTZ Functionality
Reaching 360° endless pan, -5°~90° Auto-flip tilt and 12X/23X optical zoom which are the core functionality of the PTZ dome camera, the 12X/23X H.265+ Mini PTZ Dome Network Camera is able to move for omnidirectional and long range monitoring. To get timely and efficient performance, the camera owns the unparalleled pan and tilt speed and 3D Positioning. It can fast focus and catch without even blinks of an eye.
-

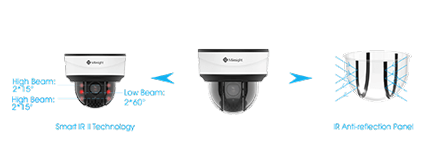

Revolutionary IR Design
Pioneered by Chennai WCT and first applied in the 12X/23X H.265+ Mini PTZ Dome Network Camera, the IR Anti-reflection Design adopts elaborate panels to completely remove the worries of the IR reflection, which guarantees the camera to offer best IR feature. And the supreme Smart IR II technology with combination of high & low beams will release its second-to-none IR performance.
-

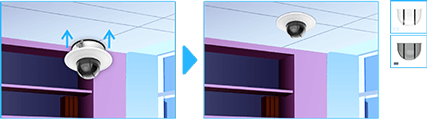

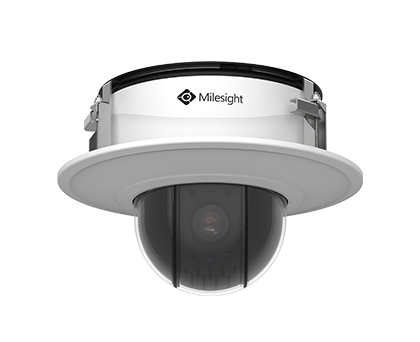

Discreet Installation
With recessed installation and smoked dome cover available, the 12X/23X H.265+ Mini PTZ Dome Network Camera can skillfully blends in with the environment and easily hide the direction for not letting people see where the camera is pointed, bringing discreet monitoring performance.
-

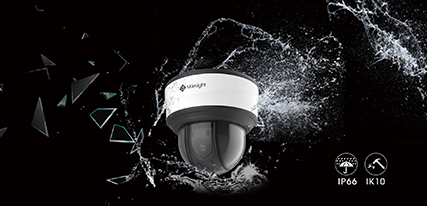

IP66 & IK10
Sharply contrasting to the mini size, the 12X/23X H.265+ Mini PTZ Dome Network Camera features the industry leading IP66-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.
-
Intelligent PTZ Auto Tracking
The dome camera features with intelligent PTZ functionality. Once PTZ Auto Tracking function is enabled, the camera could leverage motor mechanism to perform Pan/Tilt/Zoom to track the moving object automatically, achieving the smart, reliable and real-time video surveillance without any critical details missing. Besides, supporting 10 Milesight VCA modes, the camera is much smarter than your expect.
-
Leading-edge H.265+ Compression

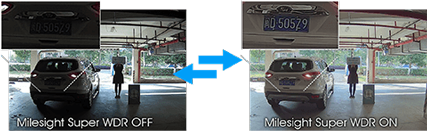

140dB Super WDR
With 140dB Super WDR, the 12X/23X H.265+ Mini PTZ Dome Network Camera is ideal for producing images with great scene details and true color restoring even under extreme back light and high contrast conditions. The WDR technology is able to compensate for the wide range of lighting levels, which is an awesome feature for fast moving dome camera.

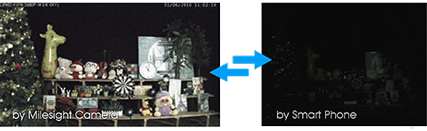

0.002Lux Ultra Low Light
With 0.002Lux ultra low light visibility which is the industry-leading level for especially fast moving dome camera, the 12X/23X H.265+ Mini PTZ Dome Network Camera is able to deliver high detailed color images even in low light environments reaching 0.002Lux of color mode or 0Lux of B/W mode, and near infrared light environments without any supplementary lighting.

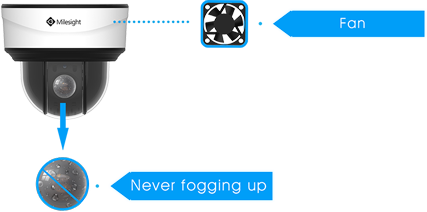

Comprehensive Defog
The dome camera creatively realizes the comprehensive defog performance both in software and hardware. It is able to keep the lens from generating the vapors to form the fog in some particular cases with the help of the fan inside. What’s more, the camera applied with image defogging algorithm to automatically detects fog and digitally filters it out of view to provide clear images in hazy and foggy weather.

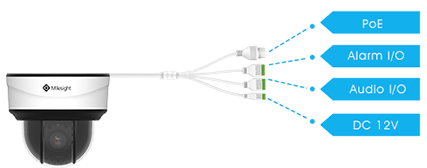

Versatile Interfaces
In the base, the 12X/23X H.265+ Mini PTZ Dome Network Camera comes with a whole array of interfaces such as Alarm I/O, Audio I/O, DC 12V and PoE port. Such complete interface design is available to meet your different kinds of video surveillance needs.

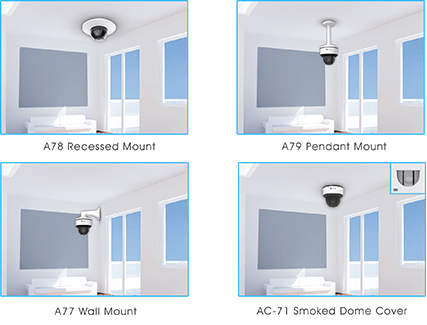

Various Accessories
The 12X/23X H.265+ Mini PTZ Dome Network Camera is a functional model which can be applied in various scenarios. It can be flexibly installed in different way for specific needs. To best guarantee its installation and use experience, four efficient accessories are available to bring supreme performance.
-
Camera
Name2MP 12X H.265 Mini PTZ Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
S/N>55dB
Digital Zoom16X
Lens
Focal Length5.3∼64mm, 12X Optical Zoom
Zoom SpeedApprox 4s (Optical Wide-Tele)
Field of ViewH61°∼H5°/D69°∼D5°/V36°∼V2°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000∼1500mm(Wide-Tele)
ApertureF1.6∼F2.8
Iris ControlAuto
PTZ
Pan Range360° endless
Pan SpeedPan Manual Speed: 0.5°∼180°/s, Pan Preset Speed: 240°/s
Tilt Range-5°∼90° (Auto Flip)
Tilt SpeedTilt Manual Speed: 0.5°∼120°/s, Tilt Preset Speed: 200°/s
Proportional ZoomSupport
Preset Quantity255
Preset FreezingSupport
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
PTZ Position DisplayON/OFF
3D PositioningSupport
IR
Irradiation DistanceUp to 120m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution1920x1080
Primary Stream60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
System
Alarm I/O1/1
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ DC 12V/3A ±10%
Power Consumption10W MAX/ 17W MAX(With IR on)
Weather ProofUp to IP66-rated for weather-resistant performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
DimensionsΦ183mmX174.8mm
Weight2Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name2MP 23X H.265 Mini PTZ Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
S/N>55dB
Digital Zoom16X
Lens
Focal Length5∼117mm, 23X Optical Zoom
Zoom SpeedApprox 6s (Optical Wide-Tele)
Field of ViewH60°∼H3°/D69°∼D4°/V35°∼V2°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance100∼1500mm(Wide-Tele)
ApertureF1.5∼F3.5
Iris ControlAuto
PTZ
Pan Range360° endless
Pan SpeedPan Manual Speed: 0.5°∼180°/s, Pan Preset Speed: 240°/s
Tilt Range-5°∼90° (Auto Flip)
Tilt SpeedTilt Manual Speed: 0.5°∼120°/s, Tilt Preset Speed: 200°/s
Proportional ZoomSupport
Preset Quantity255
Preset FreezingSupport
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
PTZ Position DisplayON/OFF
3D PositioningSupport
IR
Irradiation DistanceUp to 120m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution1920x1080
Primary Stream60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
System
Alarm I/O1/1
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ DC 12V/3A ±10%
Power Consumption10W MAX/ 17W MAX(With IR on)
Weather ProofUp to IP66-rated for weather-resistant performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
DimensionsΦ183mmX174.8mm
Weight2Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name5MP 12X H.265 Mini PTZ Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
S/N>55dB
Digital Zoom16X
Lens
Focal Length5.3∼64mm, 12X Optical Zoom
Zoom SpeedApprox 4s (Optical Wide-Tele)
Field of ViewH57°∼H4°/D69°∼D5°/V44°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000∼1500mm(Wide-Tele)
ApertureF1.6∼F2.8
Iris ControlAuto
PTZ
Pan Range360° endless
Pan SpeedPan Manual Speed: 0.5°∼180°/s, Pan Preset Speed: 240°/s
Tilt Range-5°∼90° (Auto Flip)
Tilt SpeedTilt Manual Speed: 0.5°∼120°/s, Tilt Preset Speed: 200°/s
Proportional ZoomSupport
Preset Quantity255
Preset FreezingSupport
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
PTZ Position DisplayON/OFF
3D PositioningSupport
IR
Irradiation DistanceUp to 120m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution2592x1944
Primary Stream30fps@(2592x1944), 45fps@(2048x1536), 60fps(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
System
Alarm I/O1/1
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ DC 12V/3A ±10%
Power Consumption10W MAX/ 17W MAX(With IR on)
Weather ProofUp to IP66-rated for weather-resistant performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
DimensionsΦ183mmX174.8mm
Weight2Kg
Warranty2 Years/3 Years(Optional)
-
Camera
Name5MP 23X H.265 Mini PTZ Dome Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
S/N>55dB
Digital Zoom16X
Lens
Focal Length5∼117mm, 23X Optical Zoom
Zoom SpeedApprox 6s (Optical Wide-Tele)
Field of ViewH55°∼H3°/D68°∼D4°/V42°∼V2°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance100∼1500mm(Wide-Tele)
ApertureF1.5∼F3.5
Iris ControlAuto
PTZ
Pan Range360° endless
Pan SpeedPan Manual Speed: 0.5°∼180°/s, Pan Preset Speed: 240°/s
Tilt Range-5°∼90° (Auto Flip)
Tilt SpeedTilt Manual Speed: 0.5°∼120°/s, Tilt Preset Speed: 200°/s
Proportional ZoomSupport
Preset Quantity255
Preset FreezingSupport
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
PTZ Position DisplayON/OFF
3D PositioningSupport
IR
Irradiation DistanceUp to 120m
Irradiation AngleAuto/Manual
Video
Max. Image Resolution2592x1944
Primary Stream30fps@(2592x1944), 45fps@(2048x1536), 60fps(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
System
Alarm I/O1/1
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionAuto Tracking, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working ConditionTemperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power SupplyPoE(802.3at)/ DC 12V/3A ±10%
Power Consumption10W MAX/ 17W MAX(With IR on)
Weather ProofUp to IP66-rated for weather-resistant performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
DimensionsΦ183mmX174.8mm
Weight2Kg
Warranty2 Years/3 Years(Optional)
-
* Naming Convention
X12 - 12X Optical Zoom
X23 - 23X Optical Zoom
H - 30fps@5MP Series
R - High Frame Rate (60fps)
P - PoE Supported
B - H.265 Compression
Milesight H.265 Mini PTZ Dome Network Camera Datasheet_en.pdf
Milesight PTZ Network Camera User Manual.pdf
Milesight Network Camera Quick Start Guide.pdf
A Milesight Technology Moment-Installation Instruction-Mini PTZ Dome Camera.pdf
A Milesight Technology Moment-Pioneered IR Design.pdf
MIGHT BE INTERESTED INContact Us eg:+xxx-xxxxxxx

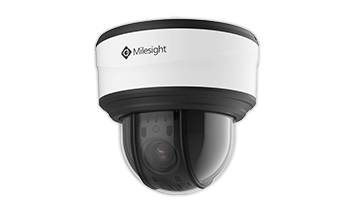

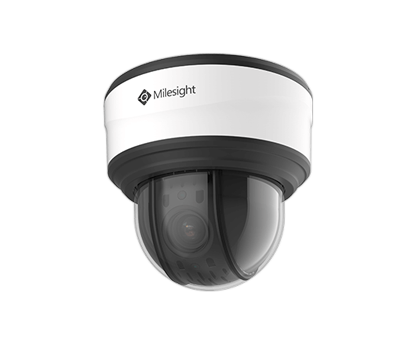

12X/23X H.265+ Mini PTZ Dome Network Camera
Speedy PTZ for A Safer World
2/5MP · 12X/23X Optical Zoom · 140dB Super WDR · 0.002Lux Starlight · IR Anti-reflection Design · IP66&IK10 · PTZ Auto Tracking · Recessed Installation
