Leading-edge H.265+ Compression
-
Video Content Analysis (VCA)
Chennai WCT VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
-
4K Video Viewing Experience

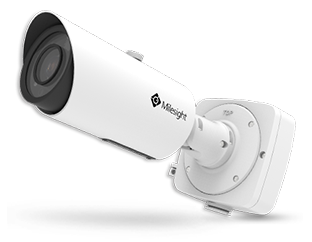

Chennai WCT 4K H.265+ Motorized Pro Bullet Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD) at 30 frames per second (fps), providing users with ultra-high-definition video viewing experience.
-
1/1.8" STARVIS Starlight Sensor
Adopting the top-notch Sony STARVIS Starlight big Sensor, Chennai WCT network camera improves every aspect of image quality. The big sensor allows the camera to achieve excellent video quality in 2MP/4K with better low-light sensitivity.
-
0.001Lux Ultra Low-light
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.001Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
-

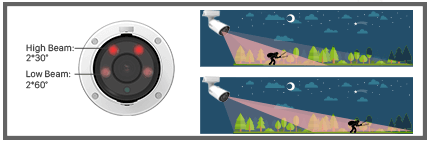

Smart IR II
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 60m(100m). Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.
-
3 in 1 Super WDR Pro - 140dB
Chennai WCT upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
-
120fps
With the industry leading frame rate reaching 120fps, Chennai WCT Network Camera can easily catch images with no latency despite of the high-speed movement.
-
P-Iris Control
Adopting P-Iris control technology, the H.265+ Motorized Pro Bullet Network Camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.
-

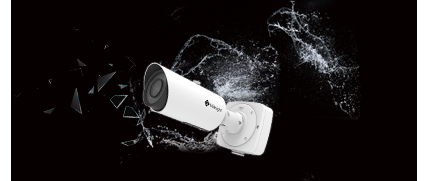

IP67&IK10
Supporting IP67-rated weather proofing and IK10-rated vandal proofing which are the leading level of the industry, the camera is well protected against adverse impact to ensure the performance.
-

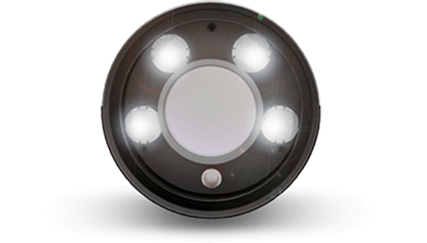

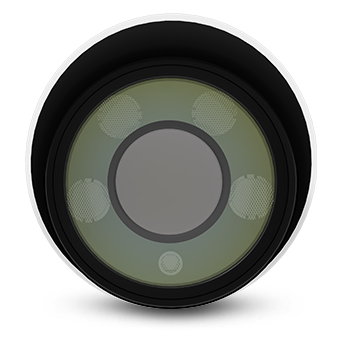

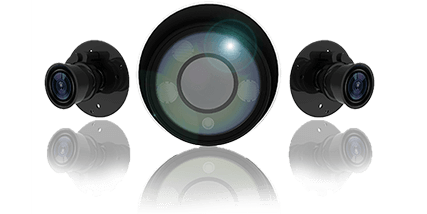

3rd Generation Dot Matrix IR LEDs
In order to provide superior night visibility, Chennai WCT H.265+ Motorized Pro Bullet Network Camera employs the 3rd generation dot matrix IR LEDs, essentially guaranteeing excellent image quality, long lifespan and energy efficiency.
-
Motorized Zoom Lens
Equipped with motorized zoom & focus lens, Chennai WCT H.265+ Motorized Pro Bullet Network Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.
-
PTFE Membrane
Applying the PTFE membrane to ventilation holes, the H.265+ Motorized Pro Bullet Network Camera housing is designed to keep moisture and dust out while allowing air to flow into and out of the device, which effectively ensures pressure equalization in the enclosures and prevents fogging and a buildup of condensation of the lenses, guaranteeing supreme image clarity.
-

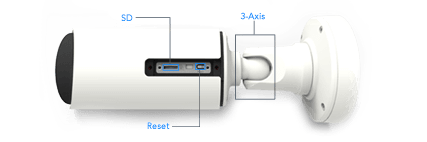

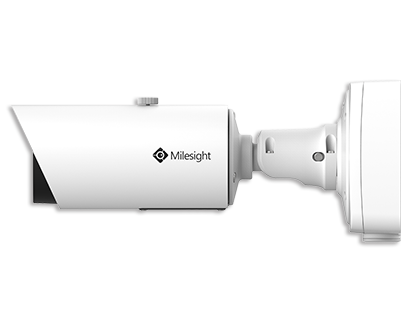

Unique Design
In the H.265+ Motorized Pro Bullet Network Camera's body are SD card slot and reset button, offering maximum enjoyment of usability and extensibility. At the rear is 3-axis adjustable bracket, which perfectly meets tidy and flexible installation.
-

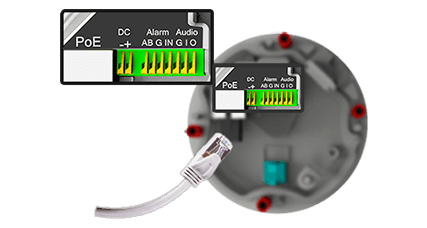

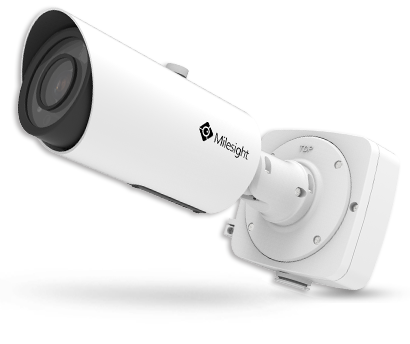

Integrated Cable Management Bracket
In the base support, there are power interface, PoE port, and other interfaces. Thanks to integrated cable management. It takes no effort in installation.
-

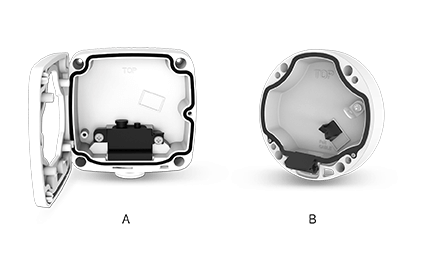

Integrated Junction Box
A: The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
B: The round design of the junction box conceals the cables inside, making it look more neat and clear. -
SIP/VoIP Support
Chennai WCT H.265+ Motorized Pro Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
-
Camera
Name2MP H.265 Motorized Pro Bullet Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 60m
S/N>55dB
Lens
LensMotorized 3.6∼10mm@F1.4, P-Iris(Optional)
Field of ViewH96°∼H42°/D111°∼D48°/V55°∼V23°
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution1920x1080
Frame Rate60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O1/1
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6W MAX, 10W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing (Optional)
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
Camera
Name2MP H.265 Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, B/W: 0Lux with IR on
WDR140dB Super WDR (Super WDR Pro is optional for Q & T Series)
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 60m(3.0∼10.5mm/2.7∼13.5mm)/ 100m(7∼22mm)
S/N>55dB
Lens
LensMotorized 3∼10.5mm/2.7∼13.5mm/7∼22mm@F1.4, P-Iris(Optional)
Field of ViewH93°∼H33°/D107°∼D38°/V52°∼V18°(3∼10.5mm), H92°∼H32°/D107°∼D37°/V51°∼V18°(2.7∼13.5mm), H40°∼H16°/D46°∼D19°/V23°∼V9°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution1920x1080
Frame Rate120fps@(1920x1080)(Optional for Q Series), 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O1/1
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6W MAX, 10.5W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing (Optional)
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
Camera
Name5MP H.265 Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 60m(3.0∼10.5mm/2.7∼13.5mm)/ 100m(7∼22mm)
S/N>55dB
Lens
LensMotorized 3∼10.5mm/2.7∼13.5mm/7∼22mm@F1.4, P-Iris(Optional)
Field of ViewH90°∼H31°/D114°∼D38°/V67°∼V23°(3∼10.5mm), H89°∼H30°/D111°∼D37°/V66°∼V22°(2.7∼13.5mm), H37°∼H15°/D47°∼D19°/V28°∼V11°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution2592x1944
Frame Rate30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080)(Optional for H Series), 20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O1/1
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5W MAX, 9W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing (Optional)
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
Camera
Name4K H.265 Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 60m
S/N>55dB
Lens
LensMotorized 2.7∼13.5mm@F1.4, P-Iris(Optional)
Field of ViewH96°∼H33°/D112°∼D37°/V53°∼V18°
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution3840×2160
Frame Rate30fps@(3840x2160)(Optional for H Series), 15fps@(3840x2160), 30fps@(3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
Network
Communication1*RJ45 10M/100M/1000M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O1/1
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5.4W MAX, 8.2W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing (Optional)
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
Camera
Name4K H.265 Motorized Pro Bullet Network Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.006Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 60m
S/N>55dB
Lens
LensMotorized 3.6∼10mm@F1.4, P-Iris(Optional)
Field of ViewH110°∼H46°/D125°∼D54°/V61°∼V25°
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution3840×2160
Frame Rate30fps@(3840×2160, 3072×2048, 2592x1944, 2592×1520, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio I/O1/1
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O1/1
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6.3W MAX, 9W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing (Optional)
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
* Naming Convention
H - 30fps@5MP/4K Series
Q - High Frame Rate (120fps)
T - High Frame Rate (90fps)
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported (Optional)
P - PoE Supported
B - H.265 Compression
Milesight H.265 Motorized Pro Bullet Network Camera Datasheet_en.pdf
A Milesight Technology Moment-Waterproofing Cable Management Design.pdf
Milesight Network Camera User Manual.pdf
Milesight Network Camera Quick Start Guide.pdf
