Leading-edge H.265+ Compression
-
Video Content Analysis (VCA)
Milesight VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
-
0.002Lux Ultra Low-light
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
-
140dB Super WDR
Milesight’s sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
-
Professional-level Video Quality
The availability of low-light lens and motorized zoom lens enables the H.265+ Motorized Mini Bullet Network Camera to offer professional-level video quality which is either suitable for applications required high light sensitivity or long distance surveillance.
-
Unique Sunshield Design
This stylishly designed H.265+ Motorized Mini Bullet Network Camera has a unique outdoor housing sunshield that almost encircles the camera body, which effectively blocks the sun from entering the lens path and offers great thermal insulation.
-
Waterproofing Design
For easy management and waterproofing, the camera is also equipped with a mounting bracket that conceals the cable within, offering a well-rounded protection of the cable from any water, dust, or shock damages.
-
Built-in PoE Module
Milesight H.265+ Motorized Mini Bullet Network Camera incorporates IEEE 802.3af Power over Ethernet technology, which eases installation by providing power and networking connectivity with a single cable, eliminating the need for additional power cables and reduces installation costs.
-
Easily Adjustable 3-Axis Bracket
The H.265+ Motorized Mini Bullet Network Camera is easy to install on a wall or ceiling. It features 3-axis bracket which provides a robust mounting platform for tidy installation and camera angle adjustments on a 3-axis plane.
-
SIP/VoIP Support
Milesight H.265+ Motorized Mini Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
-
Camera

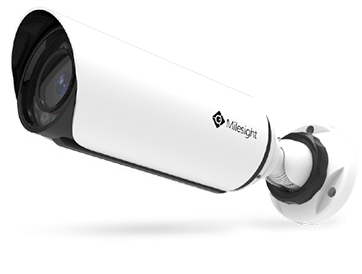

Name2MP H.265 Motorized Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, B/W: 0Lux with IR on
WDR140dB Super WDR
LensMotorized 2.7∼13.5mm@F1.4, P-Iris(Optional)
Field of ViewH92°∼H32°/D106°∼D37°/V51°∼V18°
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 50m
S/N>55dB
Video
Max. Image Resolution1920x1080
Frame Rate60fps(1920x1080)(Optional for R Series), 30fps(1920x1080), 30fps(1280x960), 30fps(1280x720), 30fps(704x576)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video Analysis (Optional)Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile S & G & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5.5W MAX, 9.5W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
DimensionsΦ76mmX236mm
Weight820g
Warranty3/5 Years
-
Camera
Name5MP H.265 Motorized Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, B/W: 0Lux with IR on
WDR120dB Super WDR
LensMotorized 2.7∼13.5mm@F1.4, P-Iris(Optional)
Field of ViewH83°∼H30°/D104°∼D37°/V62°∼V22°
Shutter Time1/100000s∼1s
Day&NightICR Filter Auto Switch
IR DistanceUp to 50m
S/N>55dB
Video
Max. Image Resolution2592x1944
Frame Rate30fps(2592x1944), 60fps(1920x1080)(Optional for H Series), 20fps(2592x1944), 30fps(1920x1080), 30fps(1280x960), 30fps(1280x720), 30fps(704x576)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video Analysis (Optional)Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile S & G & T
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption4.5W MAX, 7W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
DimensionsΦ76mmX236mm
Weight820g
Warranty3/5 Years
-
* Naming Convention
H - 30fps@5MP Series
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported (Optional)
P - PoE Supported
B - H.265 Compression
