Leading-edge H.265+ Compression
-
Video Content Analysis (VCA)
Milesight VCA with 10 detection modes provides advanced, accurate smart video analysis for Milesight network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.
-
140dB Super WDR
Milesight’s sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
-

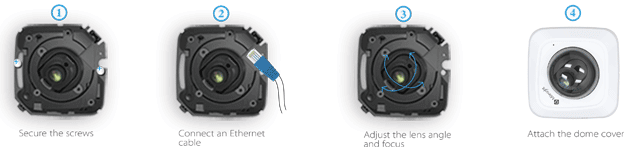

Easy Installation & Adjustment
With a built-in RJ45 port, PoE functionality and 3-axis mechanical design, the installation steps of Milesight H.265+ Mini Dome Network Camera are as easy as ABC.
-

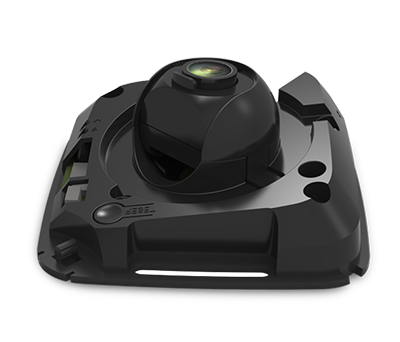

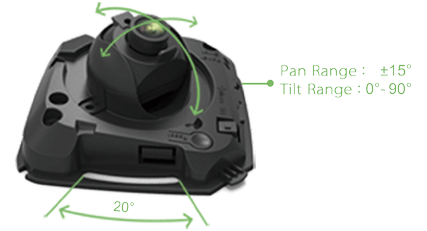

3-Axis Mechanical Design
Milesight H.265+ Mini Dome Network Camera features 3-axis mechanical design for fast and easy adjustment of the camera’s viewing angle, allowing you to position the camera precisely.
-
SIP/VoIP Support
Milesight H.265+ Mini Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
-
Camera
Name4MP H.265 Mini Dome Network Camera
Image Sensor1/3" Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux @F1.2, B/W: 0.004Lux @F1.2
WDR120dB Super WDR
Lens3.6mm @F2.2/ 2.8mm @F2.0/ 6mm @F1.6
MountM12
Field of ViewH82°/D97°/V47°(3.6mm), H113°/D132°/V66°(2.8mm), H53°/D61°/V31°(6mm)
Shutter Time1/100000s∼1s
Video
Max. Image Resolution2592x1520
Frame Rate20fps(2592x1520), 30fps(2304x1296), 30fps(1920x1080), 30fps(1280x960), 30fps(1280x720), 30fps(704x576)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC
Audio InterfaceBuilt-in Microphone
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, Backlight Compensation, HLC, 2D DNR, 3D DNR, ROI, Anti-fog, White Balance, EIS, IP Address Filtering
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video Analysis (Optional)Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile S & G
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)
Power Consumption2W MAX
Dimensions106mmX106mmX47mm
Weight125g
Warranty3/5 Years
-
Camera
Name5MP H.265 Mini Dome Network Camera
Image Sensor1/2.9" Progressive Scan CMOS
Min. IlluminationColor: 0.006Lux @F1.2, B/W: 0.003Lux @F1.2
WDR120dB Super WDR
Lens3.6mm @F2.2/ 2.8mm @F2.0/ 6mm @F1.6
MountM12
Field of ViewH67°/D84°/V50°(3.6mm), H92°/D115°/V69°(2.8mm), H44°/D54°/V34°(6mm)
Shutter Time1/100000s∼1s
Video
Max. Image Resolution2592x1944
Frame Rate20fps(2592x1944), 30fps (1920x1080), 30fps(1280x960), 30fps(1280x720), 30fps(704x576)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC
Audio InterfaceBuilt-in Microphone
Network
Communication1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS)
Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionPrivacy Masking, Backlight Compensation, HLC, 2D DNR, 3D DNR, ROI, Anti-fog, White Balance, EIS, IP Address Filtering
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video Analysis (Optional)Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile S & G
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)
Power Consumption2W MAX
Dimensions106mmX106mmX47mm
Weight125g
Warranty3/5 Years
-
* Naming Convention
P - PoE Supported
B - H.265 Compression
