Camera
Name
Image Sensor
Min. Illumination
WDR
Lens
Field of View
Shutter Time
IR Distance

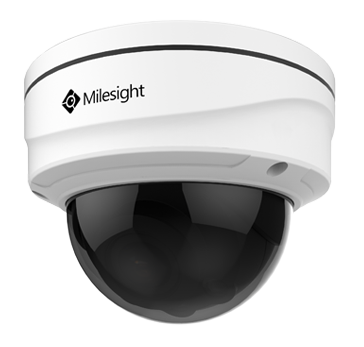

2MP H.265 Motorized Pro Dome Network Camera
1/2" Progressive Scan CMOS
Color: 0.001Lux @F1.2, B/W: 0Lux with IR on
Super WDR up to 140dB
Motorized 3.6∼10mm@F1.4, P-Iris(Optional)
H96°∼H42°/D111°∼D48°/V55°∼V23°
1/100000s∼1/5s
50m
Video
Max. Image Resolution
Frame Rate
Video Compression
Video Bit Rate
Image Settings
Web Access
1920×1080
60fps(1920×1080)(Optional), 30fps(1920×1080), 30fps(1280×960), 30fps(1280×720), 30fps(704×576)
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
16Kbps∼16Mbps (CBR/VBR adjustable)
Saturation/Brightness/Contrast/Sharpness
Support IE/Firefox/Chrome/Safari Browser
Audio
Audio I/O
Audio Compression
Built-in Microphone and 1 Audio Output interface
G.711/AAC
Network
Communication
Network Storage
Network Protocols
1*RJ45 10M/100M Ethernet Port
NAS(Support NFS, SMB/CIFS)
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS
System
Alarm I/O
Storage
Advanced Function
SIP/VoIP Support
Event Trigger
Event Action
Video Analysis (Optional)
System Compatibility
1/1
Support microSD/SDHC/SDXC Card Local Storage, up to 128G
Motion Detection, Privacy Masking, Backlight Compensation, HLC, 3D-DNR, ROI, Anti-fog
Yes, Voice&Video-over-IP
Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
FTP Upload/SMTP Upload/SD Card Record/External Output/SIP Phone
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
ONVIF Profile S & G
General
Working Temperature
Working Humidity
Power Supply
Power Consumption
Weather Proof
Housing
Dimensions
Weight
Warranty
-40℃∼60℃
0∼90%(Non-condensing)
PoE/DC 12V±10%(Optional)
8W MAX, 12W MAX (With IR on)
Up to IP67-rated for weather-resistant performance
Vandal-proof IK10-rated metal housing
Φ143mmX108.4mm
1100g
3/5 Years
Camera
Name
Image Sensor
Min. Illumination
WDR
Lens
Field of View
Shutter Time
IR Distance
2MP H.265 Motorized Pro Dome Network Camera
1/2.8" Progressive Scan CMOS
Color: 0.002Lux @F1.2, B/W: 0Lux with IR on
Super WDR up to 140dB
Motorized 3∼10.5mm/2.8∼12mm/7∼22mm@F1.4, P-Iris(Optional)
H93°∼H33°/D107°∼D38°/V52°∼V18°(3∼10.5mm), H91°∼H34°/D105°∼D39°/V51°∼V19°(2.8∼12mm), H40°∼H16°/D46°∼D19°/V23°∼V9°(7∼22mm)
1/100000s∼1/5s
50m/80m
Video
Max. Image Resolution
Frame Rate
Video Compression
Video Bit Rate
Image Settings
Web Access
1920×1080
60fps(1920×1080)(Optional), 30fps(1920×1080), 30fps(1280×960), 30fps(1280×720), 30fps(704×576)
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
16Kbps∼16Mbps (CBR/VBR adjustable)
Saturation/Brightness/Contrast/Sharpness
Support IE/Firefox/Chrome/Safari Browser
Audio
Audio I/O
Audio Compression
Built-in Microphone and 1 Audio Output interface
G.711/AAC
Network
Communication
Network Storage
Network Protocols
1*RJ45 10M/100M Ethernet Port
NAS(Support NFS, SMB/CIFS)
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS
System
Alarm I/O
Storage
Advanced Function
SIP/VoIP Support
Event Trigger
Event Action
Video Analysis (Optional)
System Compatibility
1/1
Support microSD/SDHC/SDXC Card Local Storage, up to 128G
Motion Detection, Privacy Masking, Backlight Compensation, HLC, 3D-DNR, ROI, Anti-fog
Yes, Voice&Video-over-IP
Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
FTP Upload/SMTP Upload/SD Card Record/External Output/SIP Phone
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
ONVIF Profile S & G
General
Working Temperature
Working Humidity
Power Supply
Power Consumption
Weather Proof
Housing
Dimensions
Weight
Warranty
-40℃∼60℃
0∼90%(Non-condensing)
PoE/DC 12V±10%(Optional)
8W MAX, 12W MAX (With IR on)
Up to IP67-rated for weather-resistant performance
Vandal-proof IK10-rated metal housing
Φ143mmX108.4mm
1100g
3/5 Years
Camera
Name
Image Sensor
Min. Illumination
WDR
Lens
Field of View
Shutter Time
IR Distance
3MP H.265 Motorized Pro Dome Network Camera
1/2.8" Progressive Scan CMOS
Color: 0.005Lux @F1.2, B/W: 0Lux with IR on
Super WDR up to 120dB
Motorized 3∼10.5mm/2.8∼12mm/7∼22mm@F1.4, P-Iris(Optional)
H84°∼H30°/D105°∼D37°/V63°∼V22°(3∼10.5mm), H79°∼H31°/D98°∼D38°/V59°∼V23°(2.8∼12mm), H38°∼H15°/D51°∼D19°/V28°∼V11°(7∼22mm)
1/100000s∼1/5s
50m/80m
Video
Max. Image Resolution
Frame Rate
Video Compression
Video Bit Rate
Image Settings
Web Access
2048×1536
30fps(2048×1536), 30fps(1920×1080), 30fps(1280×960), 30fps(1280×720), 30fps(704×576)
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
16Kbps∼16Mbps (CBR/VBR adjustable)
Saturation/Brightness/Contrast/Sharpness
Support IE/Firefox/Chrome/Safari Browser
Audio
Audio I/O
Audio Compression
Built-in Microphone and 1 Audio Output interface
G.711/AAC
Network
Communication
Network Storage
Network Protocols
1*RJ45 10M/100M Ethernet Port
NAS(Support NFS, SMB/CIFS)
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS
System
Alarm I/O
Storage
Advanced Function
SIP/VoIP Support
Event Trigger
Event Action
Video Analysis (Optional)
System Compatibility
1/1
Support microSD/SDHC/SDXC Card Local Storage, up to 128G
Motion Detection, Privacy Masking, Backlight Compensation, HLC, 3D-DNR, ROI, Anti-fog
Yes, Voice&Video-over-IP
Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
FTP Upload/SMTP Upload/SD Card Record/External Output/SIP Phone
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
ONVIF Profile S & G
General
Working Temperature
Working Humidity
Power Supply
Power Consumption
Weather Proof
Housing
Dimensions
Weight
Warranty
-40℃∼60℃
0∼90%(Non-condensing)
PoE/DC 12V±10%(Optional)
8W MAX, 12W MAX (with IR on)
Up to IP67-rated for weather-resistant performance
Vandal-proof IK10-rated metal housing
Φ143mmX108.4mm
1100g
3/5 Years
Camera
Name
Image Sensor
Min. Illumination
WDR
Lens
Field of View
Shutter Time
IR Distance
4MP H.265 Motorized Pro Dome Network Camera
1/3" Progressive Scan CMOS
Color: 0.008Lux @F1.2, B/W: 0Lux with IR on
Super WDR up to 120dB
Motorized 3∼10.5mm/2.8∼12mm/7∼22mm@F1.4, P-Iris(Optional)
H85°∼H30°/D99°∼D35°/V48°∼V17°(3∼10.5mm), H76°∼H31°/D88°∼D36°/V45°∼V18°(2.8∼12mm), H36°∼H15°/D41°∼D17°/V22°∼V8°(7∼22mm)
1/100000s∼1/5s
50m/80m
Video
Max. Image Resolution
Frame Rate
Video Compression
Video Bit Rate
Image Settings
Web Access
2592×1520
30fps(2592×1520)(Optional), 20fps(2592×1520), 30fps(2304×1296), 30fps(1920×1080), 30fps(1280×960), 30fps(1280*720), 30fps(704×576)
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
16Kbps∼16Mbps (CBR/VBR adjustable)
Saturation/Brightness/Contrast/Sharpness
Support IE/Firefox/Chrome/Safari Browser
Audio
Audio I/O
Audio Compression
Built-in Microphone and 1 Audio Output interface
G.711/AAC
Network
Communication
Network Storage
Network Protocols
1*RJ45 10M/100M Ethernet Port
NAS(Support NFS, SMB/CIFS)
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS
System
Alarm I/O
Storage
Advanced Function
SIP/VoIP Support
Event Trigger
Event Action
Video Analysis (Optional)
System Compatibility
1/1
Support microSD/SDHC/SDXC Card Local Storage, up to 128G
Motion Detection, Privacy Masking, Backlight Compensation, HLC, 3D-DNR, ROI, Anti-fog
Yes, Voice&Video-over-IP
Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
FTP Upload/SMTP Upload/SD Card Record/External Output/SIP Phone
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
ONVIF Profile S & G
General
Working Temperature
Working Humidity
Power Supply
Power Consumption
Weather Proof
Housing
Dimensions
Weight
Warranty
-40℃∼60℃
0∼90%(Non-condensing)
PoE/DC 12V±10%(Optional)
8W MAX, 12W MAX (With IR on)
Up to IP67-rated for weather-resistant performance
Vandal-proof IK10-rated metal housing
Φ143mmX108.4mm
1100g
3/5 Years
Camera
Name
Image Sensor
Min. Illumination
WDR
Lens
Field of View
Shutter Time
IR Distance
5MP H.265 Motorized Pro Dome Network Camera
1/2.8" Progressive Scan CMOS
Color: 0.005Lux @F1.2, B/W: 0Lux with IR on
Super WDR up to 120dB
Motorized 3∼10.5mm/2.8∼12mm/7∼22mm@F1.4, P-Iris(Optional)
H90°∼H31°/D114°∼D38°/V67°∼V23°(3∼10.5mm), H87°∼H31°/D110°∼D39°/V65°∼V24°(2.8∼12mm), H37°∼H15°/D47°∼D19°/V28°∼V11°(7∼22mm)
1/100000s∼1/5s
50m/80m
Video
Max. Image Resolution
Frame Rate
Video Compression
Video Bit Rate
Image Settings
Web Access
2560×1920
20fps(2560×1920), 20fps(2592×1520), 30fps(2304×1296), 30fps (1920×1080), 30fps(1280×960), 30fps(1280*720), 30fps(704×576)
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
16Kbps∼16Mbps (CBR/VBR adjustable)
Saturation/Brightness/Contrast/Sharpness
Support IE/Firefox/Chrome/Safari Browser
Audio
Audio I/O
Audio Compression
Built-in Microphone and 1 Audio Output interface
G.711/AAC
Network
Communication
Network Storage
Network Protocols
1*RJ45 10M/100M Ethernet Port
NAS(Support NFS, SMB/CIFS)
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS
System
Alarm I/O
Storage
Advanced Function
SIP/VoIP Support
Event Trigger
Event Action
Video Analysis (Optional)
System Compatibility
1/1
Support microSD/SDHC/SDXC Card Local Storage, up to 128G
Motion Detection, Privacy Masking, Backlight Compensation, HLC, 3D-DNR, ROI, Anti-fog
Yes, Voice&Video-over-IP
Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
FTP Upload/SMTP Upload/SD Card Record/External Output/SIP Phone
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
ONVIF Profile S & G
General
Working Temperature
Working Humidity
Power Supply
Power Consumption
Weather Proof
Housing
Dimensions
Weight
Warranty
-40℃∼60℃
0∼90%(Non-condensing)
PoE/DC 12V±10%(Optional)
8W MAX, 12W MAX (With IR on)
Up to IP67-rated for weather-resistant performance
Vandal-proof IK10-rated metal housing
Φ143mmX108.4mm
1100g
3/5 Years
* Naming Convention
H - 30fps@4MP&5MP Series
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported (Optional)
P - PoE Supported
B - H.265 Compression
