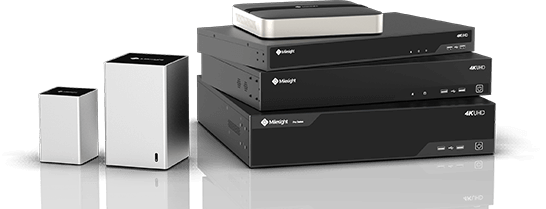

milesight NVR Security Camera System

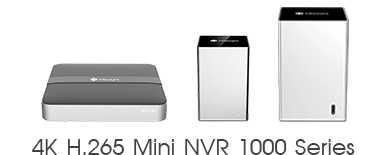

Milesight 4K H.265 Mini NVR 1000 Series

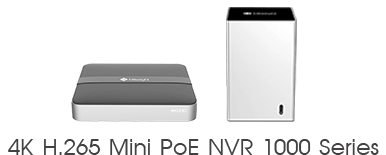

Milesight 4K H.265 Mini PoE NVR 1000 Series

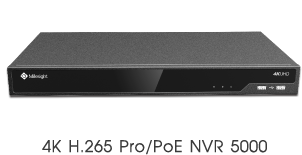

Milesight 4K H.265 Pro/PoE NVR 5000

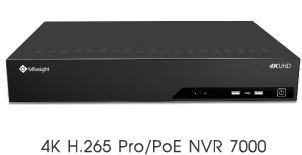

Milesight 4K H.265 Pro/PoE NVR 7000

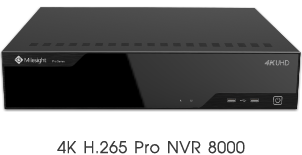

Milesight 4K H.265 Pro 8000

Milesight 4K H.265 NVR Series provides users with an ideal NVR security camera system for professional monitoring and unsurpassed reliability. The 4K H.265 NVR family is composed of Mini NVR 1000, Pro NVR 5000/7000/8000 and PoE NVR 1000/5000/7000, which all feature a full range of high-performance units. It is worth mentioning that besides supporting the functions required to offer a robust system for the demanding surveillance applications, the PoE NVRs can also automatically detect, configure and play the live view of the network cameras with the true plug-and-play performance.

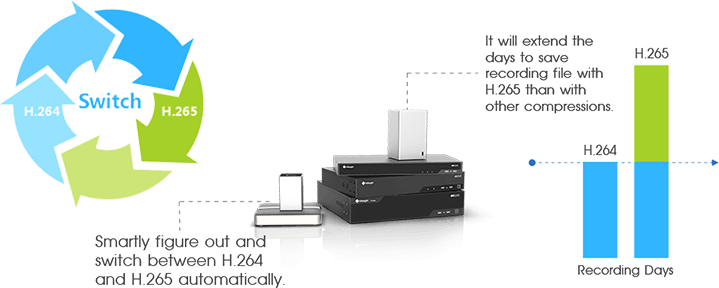

Leading-edge H.265 Compression

Milesight 4K H.265 Pro NVR Series features with H.265

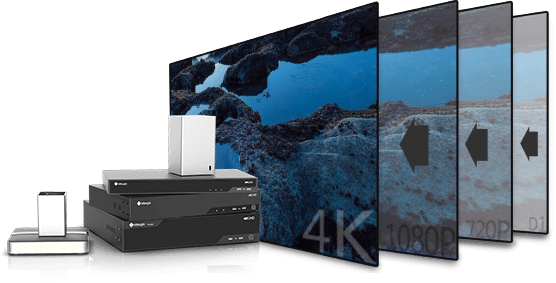

4K Video Viewing Experience

Milesight 4K H.265 NVR Series supports up to 4K definition (3840*2160, effectively four times that of Full HD) live viewing, playback and recording, providing users with ultra-high-definition video viewing experience.

4K video viewing experience of Milesight NVR

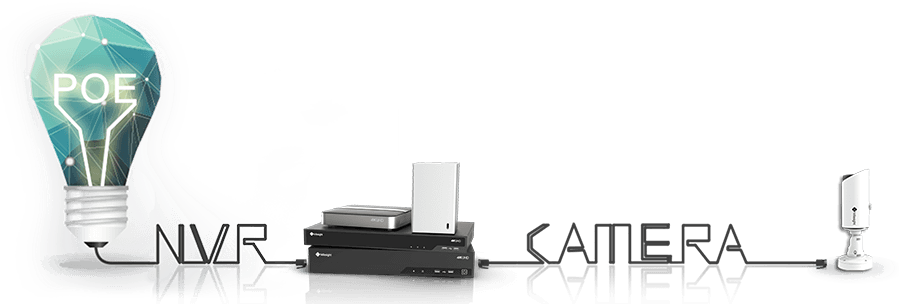

Plug and Play

Milesight PoE NVR Series features independent PoE ports for easy connection and configuration of network cameras, which will provide power to the camera while streaming video/audio/data over one single cable. The NVR will automatically detect, configure and play the live view of the network cameras once the cable is plugged, greatly eliminating the need for much time and expertise and achieving a virtually hassle-free installation process.

POE NVR

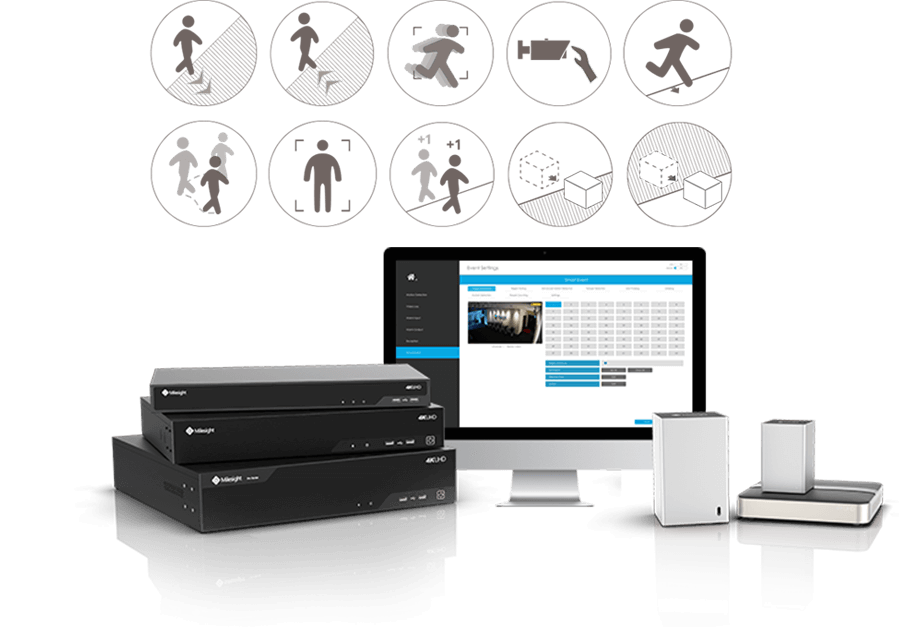

VCA

Milesight NVRs label themselves as intelligent on the basis of the powerful file system MSFS with 10 VCA functions availability, including Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left and Object Removed.

10 VCA Function support including Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left and Object Removed

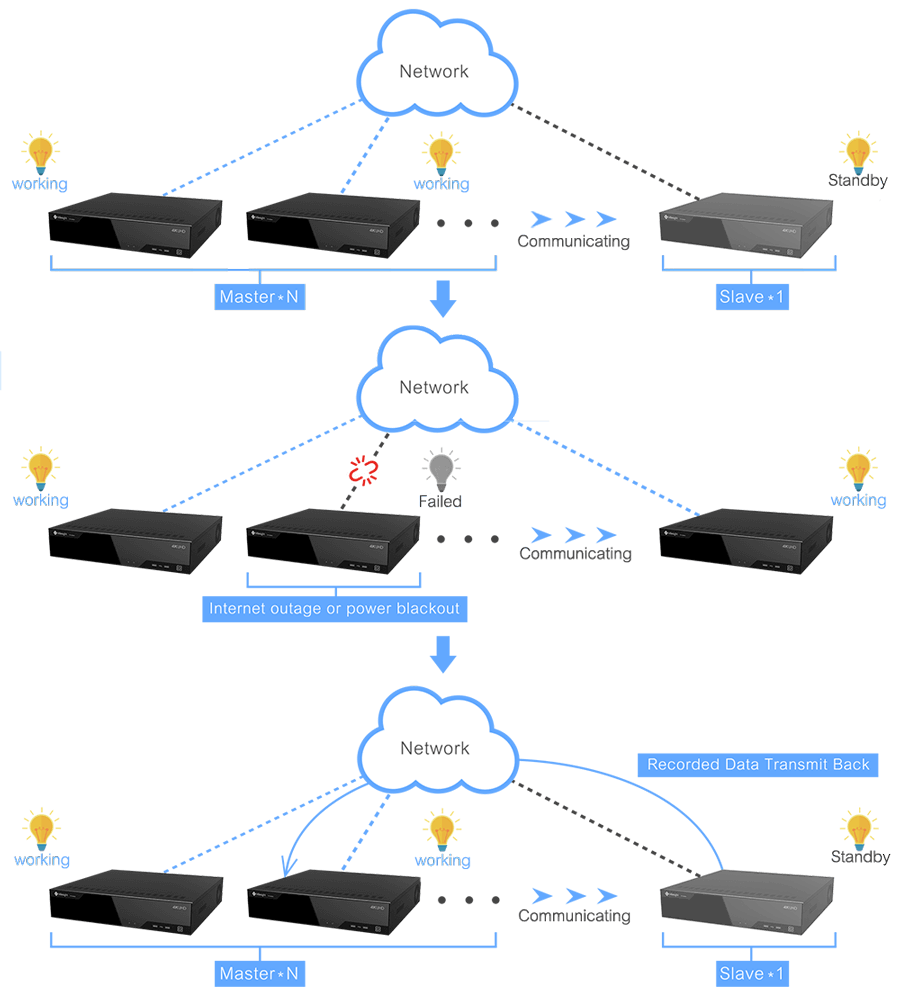

Milesight N+1 Hot Spare

(Applicable for 4K H.265 Pro NVR 7000 and 8000 Series)

Configured as the architecture of N pcs Master NVRs and 1 hot spare slave NVR, Milesight N+1 Hot Spare guarantees the data integrity and reliability of video surveillance system. If any one of the master NVRs fails, the slave NVR can take over the data to ensure continuous video recording. Meanwhile, when the failed NVR recovered, the slave NVR will send the data back to prevent the risk of data loss.

N+1 hot spare

Click to Learn More About N+1 Hot Spare

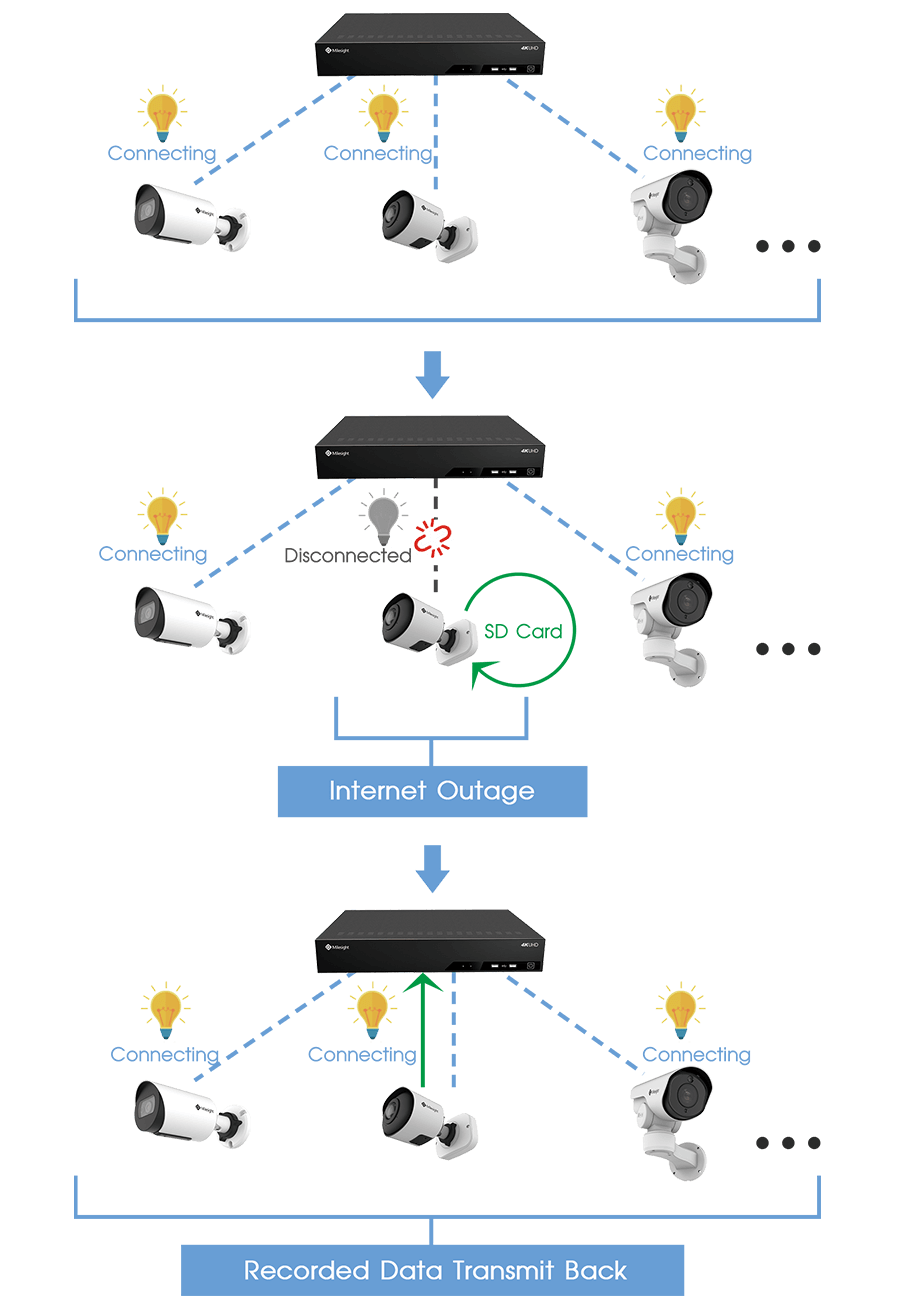

ANR

NVRs with ANR function will automatically store video data on the Network Camera storage card when the network fails and automatically retrieves the data back to the NVRs after recovery of the network, effectively improving the reliability and flexibility of storage.

ANR

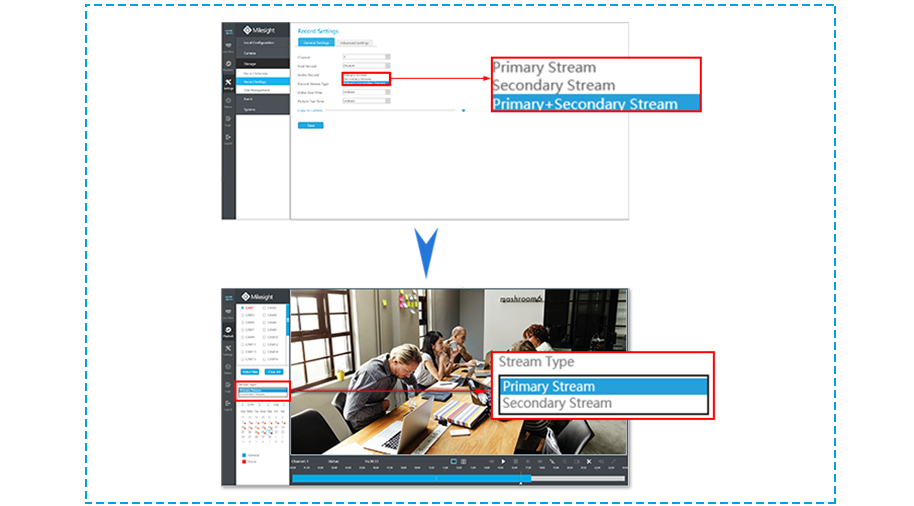

Dual Stream Recording

Dual Stream Recording enables the NVR to record in Primary+Secondary Stream. And in the remote playback, the Secondary Stream is recommended to use for better viewing experience.

Dual Stream Recording

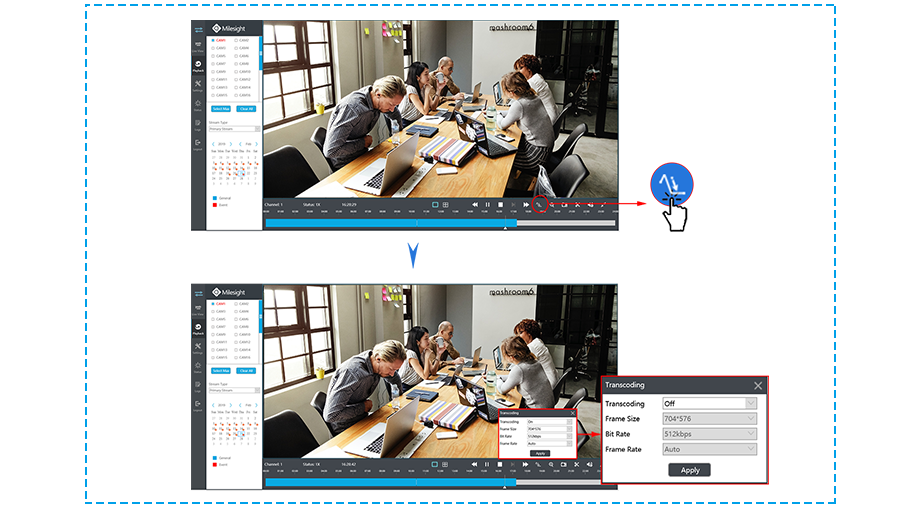

Transcoding

Transcoding could be set at M-Sight Pro or NVR web page to transcode the recorded stream into a smaller one, aiming to reduce the network load and provide better playback performance.

Transcoding

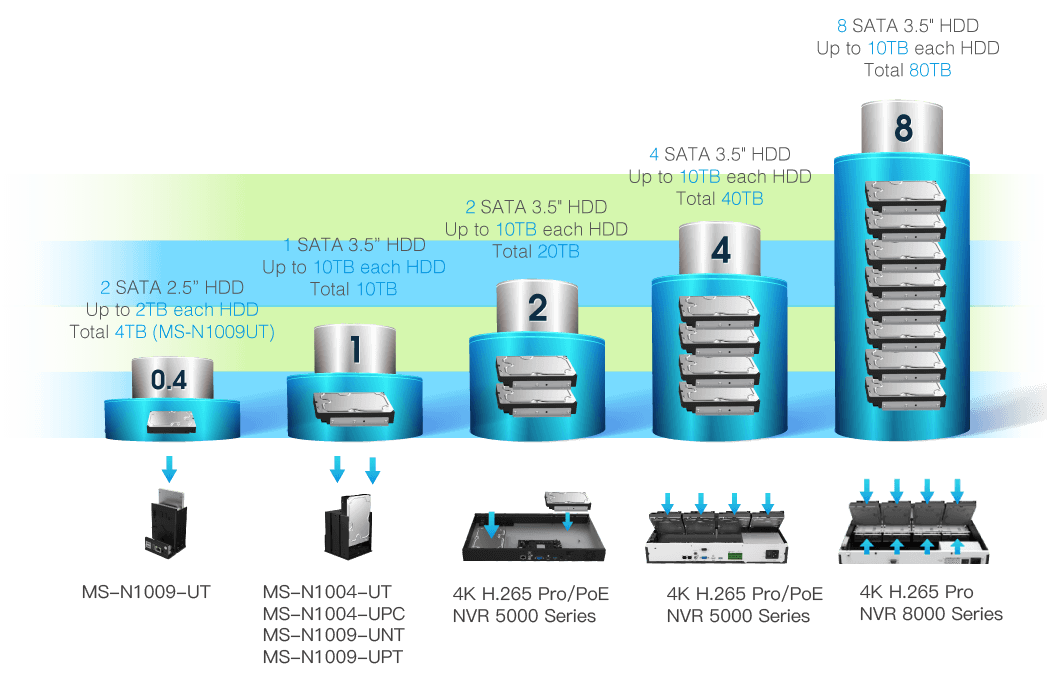

Maximum Storage Capacity

Maximum Storage Capacity

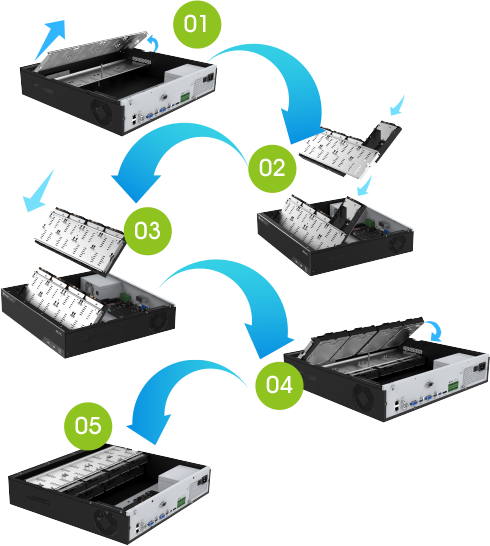

Optimized HDD Installation Structure

(4K H.265 Pro/PoE NVR 7000 and Pro NVR 8000 Series)

Optimized HDD Installation Structure

The inner structures of Pro/PoE NVR 7000 and Pro NVR 8000 are optimized to meet the demands for convenient and neat hard disk installation. Innovative design with streamlined HDD installation structure subverts your impression of traditional rack-mounted NVR which surprisingly saves great time and effort.

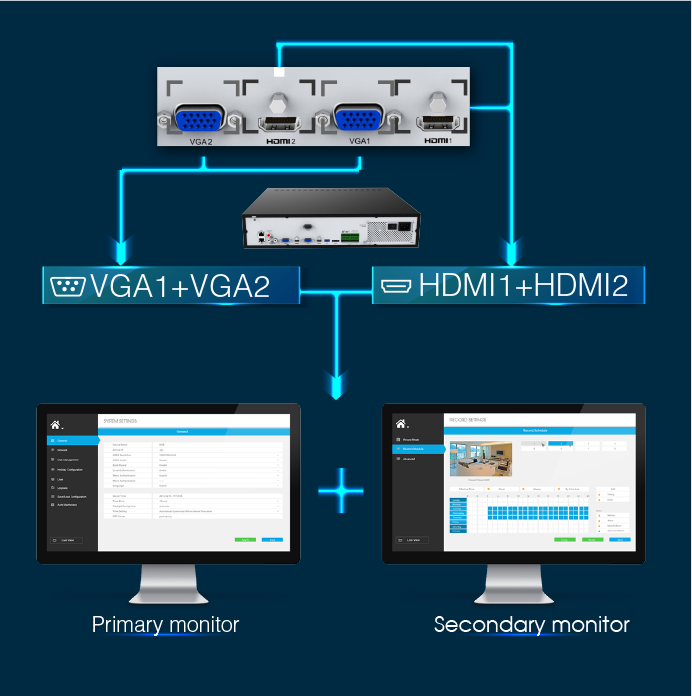

Dual Monitor Display

(Applicable for 4K H.265 Pro NVR 8000 Series)

Milesight 4K H.265 Pro NVR 8000 can set up dual monitor display with 2 HDMI and 2 VGA interfaces. The primary monitor and secondary monitor can be configured separately and have their own display settings which enable users to have a different live view or playback display layout simultaneously, offering a more efficient and explicit surveillance.

Dual Monitor Display of Milesight 4K H.265 Pro NVR 8000 Series

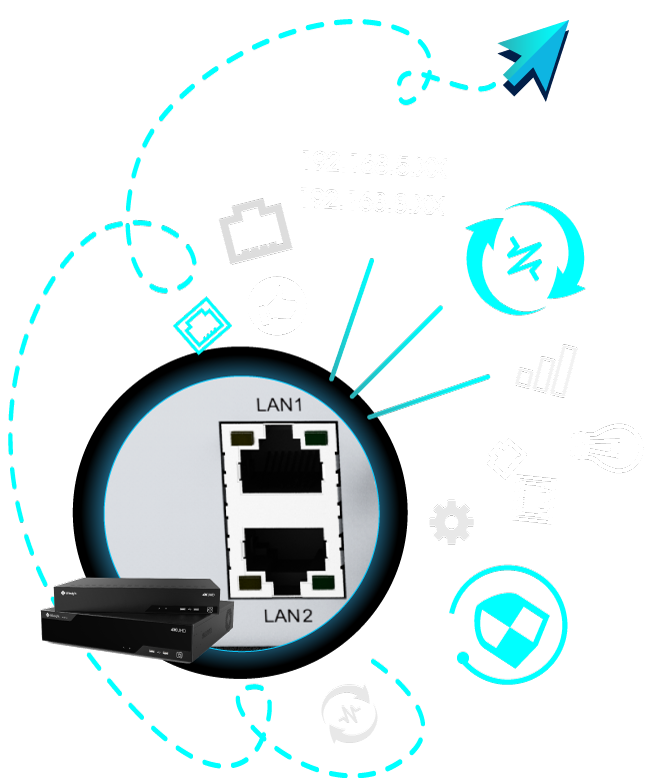

Dual LAN Interfaces for Three Network Working Modes

(Applicable for 4K H.265 Pro NVR 7000 and 8000 Series)

1) Multi-address: Two Ethernet interfaces use different IP addresses and work separately in LAN1 and LAN2. One of them could be chosen as default LAN to transmit data.
2) Load Balance: Two Ethernet interfaces use the same IP address. And they share the bandwidth of the system, which is aimed at increasing the throughput.
3) Net Fault-tolerance: Two Ethernet interfaces use the same IP address. One is the main, and the other is for backup. If the main Ethernet interface is damaged, it will switch over to the backup one automatically to ensure normal function.

Dual Monitor Display of Milesight 4K H.265 Pro NVR 8000 Series

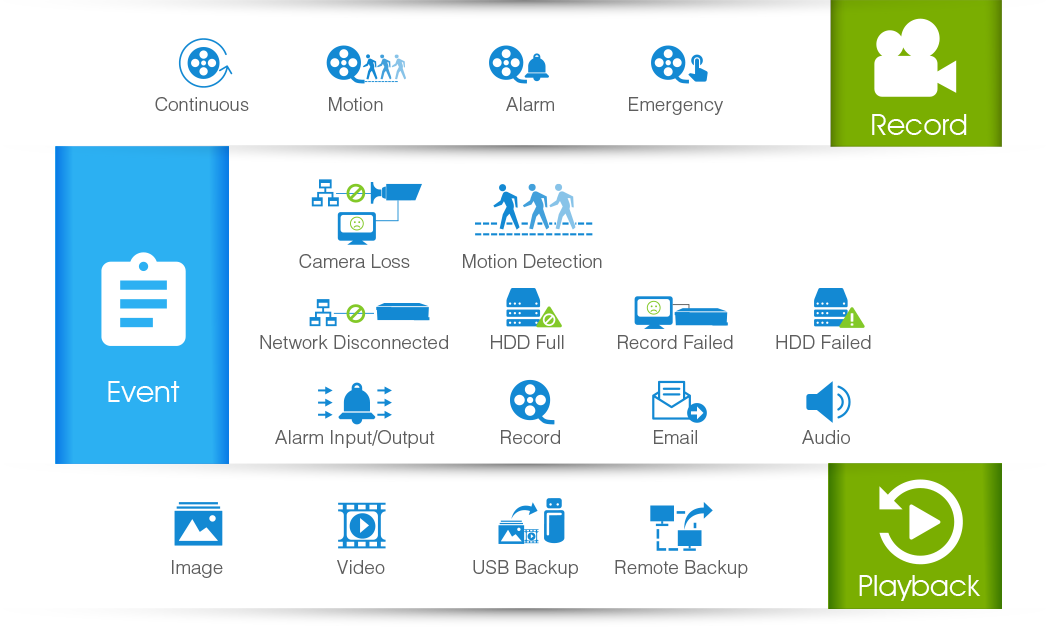

General Functions

General functions of Milesight NVR

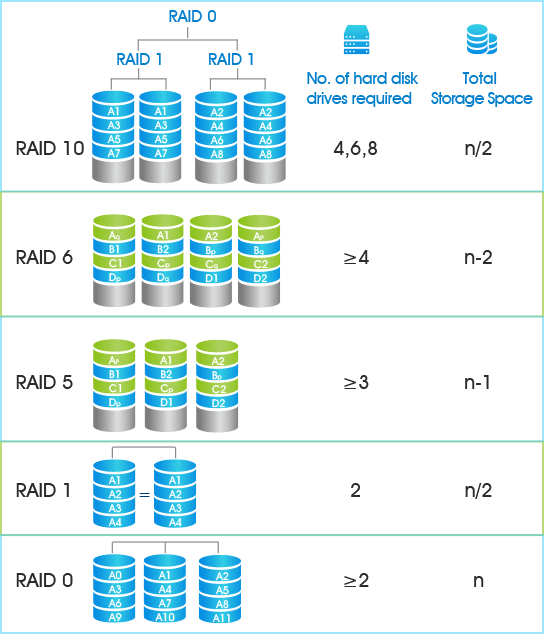

RAID 0/1/5/6/10 Supported

RAID (Redundant Array of Independent Disks) is a method of combing hard disks as a logical unit to achieve redundancy and greater speed of writing and reading data. There are 5 different RAID levels (0, 1, 5, 6, 10) supported by Milesight 4K H.265 Pro/PoE 7000 and Pro 8000 series, which can be configured according to user’s exact project requirements for data protection and storage space, providing reliability, high availability storage.

4K NVR RAID Functions

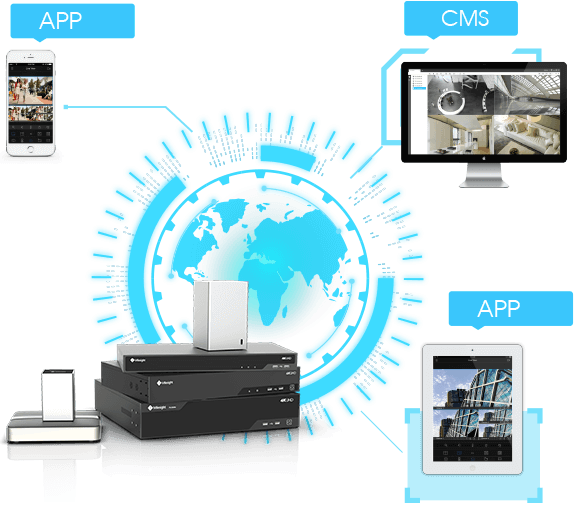

Remote Access Via Milesight CMS and APP

Milesight 4K H.265 NVR Series can be easily accessed and managed remotely via Milesight CMS and mobile APP. Milesight CMS is an intelligent surveillance solution for users to manage up to 256 devices, with remote access to live view and playback. Available on iOS and Android devices, the mobile APP M-Sight Pro is specially designed for Milesight NVR to provide users with real-time surveillance.

Milesight 4K H.265 Pro NVR Series Remote Access Via Milesight CMS and APP
