Milesight 4K H.265 Pro NVR Series provides users an ideal video management system for professional monitoring and unsurpassed reliability. The 4K H.265 Pro NVR family is composed of Pro NVR 5000/7000/8000 and PoE NVR 5000/7000, which all feature a full range of high performance units. It is worth mentioning that besides supporting the functions required to offer a robust system for the demanding applications, the PoE NVRs can also automatically detect, configure and play the live view of the network cameras with the true plug-and-play performance.
Leading-edge H.265 Compression
New File System
Applied with the New Milesight File System (MSFS), Milesight NVRs bring completely new user-experience.
· Lock Record File, Tag Video and Playback File Management
· General, Event, Tag and Picture Playback
· Common Backup, Event Backup and Picture Backup
· NAS and Disk Group Function
4K Video Viewing Experience
Milesight 4K H.265 Pro NVR Series supports up to 4K definition (3840*2160, effectively four times that of Full HD) live viewing, playback and recording, providing users with ultra-high-definition video viewing experience.

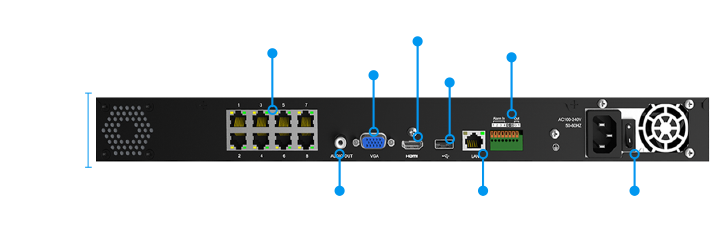

Plug and Play
Milesight PoE NVR Series features independent PoE ports for easy connection and configuration of network cameras, which will provide power to the camera while streaming video/audio/data over one single cable. The NVR will automatically detect, configure and play the live view of the network cameras once the cable is plugged, greatly eliminating the need for much time and expertise and achieving a virtually hassle-free installation process.
VCA
Milesight VCA function includes Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left and Object Removed. With 10 VCA functions availability, Milesight NVRs label themselves as intelligent on the basis of the powerful file system MSFS.

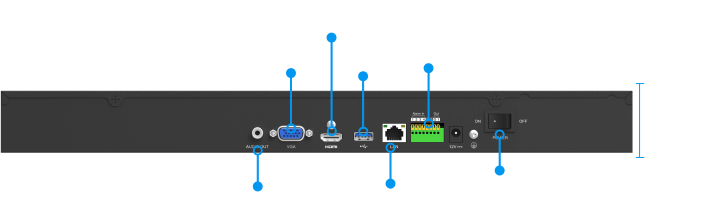

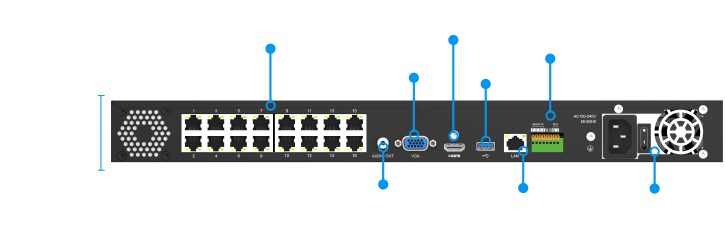

Versatile Interfaces
Milesight 4K H.265 Pro NVR Series comes with a whole array of interfaces which can be up to 2 HDMI, 2 VGA, 3 USB and 2 LAN interfaces. The full set of interfaces provide all necessary features for effective surveillance.
PRO NVR 5000 Series
MS-N5008-UT
MS-N5016-UT
PoE NVR 5000 Series
MS-N5008-UPT
MS-N5016-UPT
PRO NVR 7000 Series
MS-N7016-UH
MS-N7032-UH
PoE NVR 7000 Series
MS-N7016-UPH
MS-N7032-UPH
PRO NVR 8000 Series
MS-N8032-UH
MS-N8064-UH
| Model | 4K Pro 5000 Series | 4K PoE 5000 Series | 4K Pro 7000 Series | 4K PoE 7000 Series | 4K Pro 8000 Series |
|---|---|---|---|---|---|
| Power | DC 12V | AC 100V-240V | AC 100V-240V | AC 100V-240V | AC 100V-240V |
| Ethernet Port | 1 | 1 | 2 | 1 | 2 |
| USB | 1*USB 3.0.2;2*USB 2.0 | 1*USB 3.0.2;2*USB 2.0 | 1*USB 3.0.2;2*USB 2.0 | 1*USB 3.0.2;2*USB 2.0 | 1*USB 3.0.2;2*USB 2.0 |
| HDMI | 1 | 1 | 1 | 1 | 2 |
| VGA | 1 | 1 | 1 | 1 | 2 |
| Audio I/O | 1*RCA(MS-N5032-UH)/1*RCA | 0*RCA/1*RCA | 1*RCA/1*RCA | 1*RCA/1*RCA | 1*RCA/2*RCA |
| Alarm I/O | 4-CH/1-CH(Except MS-N5032-UH) | 4-CH/1-CH | 16-CH/4-CH | 16-CH/4-CH | 16-CH/4-CH |
| Serial Interface | 1*RS485 Series Port for PTZ(Except MS-N5032-UH) | 1*RS485 Series Port for PTZ | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard |
| SATA | 2*3.5'' | 2*3.5'' | 4*3.5'' | 4*3.5'' | 8*3.5'' |
| eSATA | X | X | X | X | 1 |
| PoE Ports | X | 8/16 | X | 16 | X |

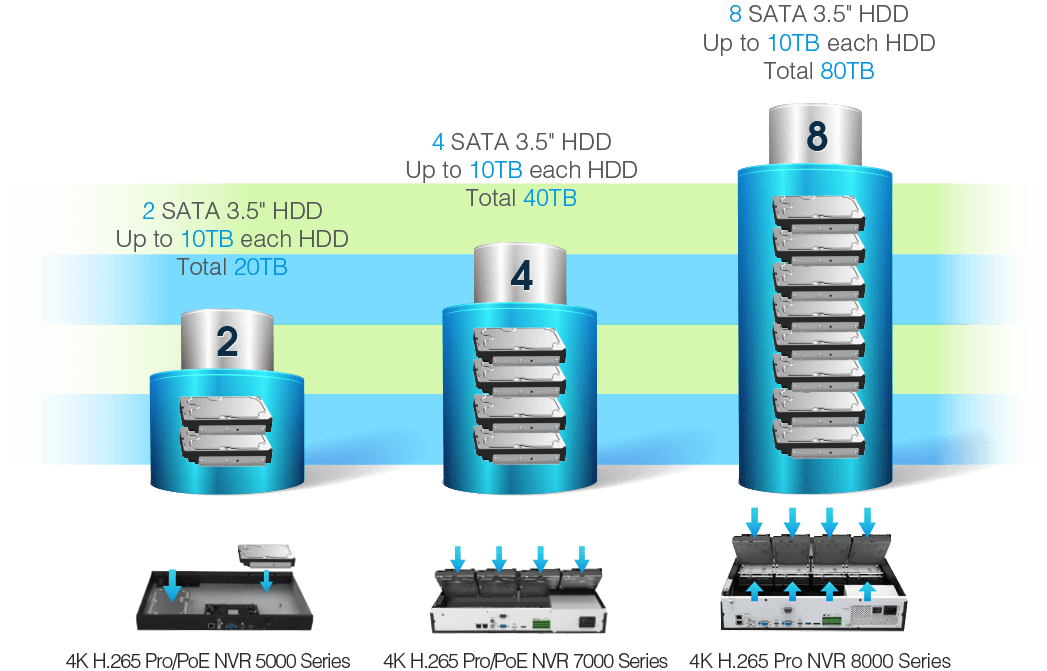

Maximum Storage Capacity
Optimized HDD Installation Structure
(4K H.265 Pro/PoE NVR 7000 and Pro NVR 8000)
The inner structures of Pro/PoE NVR 7000 and Pro NVR 8000 are optimized to meet the demands for convenient and neat hard disk installation. Innovative design with streamlined HDD installation structure subverts your impression of traditional rack-mounted NVR which surprisingly save great time and efforts.
Dual Monitor Display
(Applicable for 4K H.265 Pro NVR 8000)
Milesight 4K H.265 Pro NVR 8000 can set up dual monitor display with 2 HDMI and 2 VGA interfaces. The primary monitor and secondary monitor can be configured separately and have their own display settings which enable users to have different live view or playback display layout simultaneously, offering a more efficient and explicit surveillance.

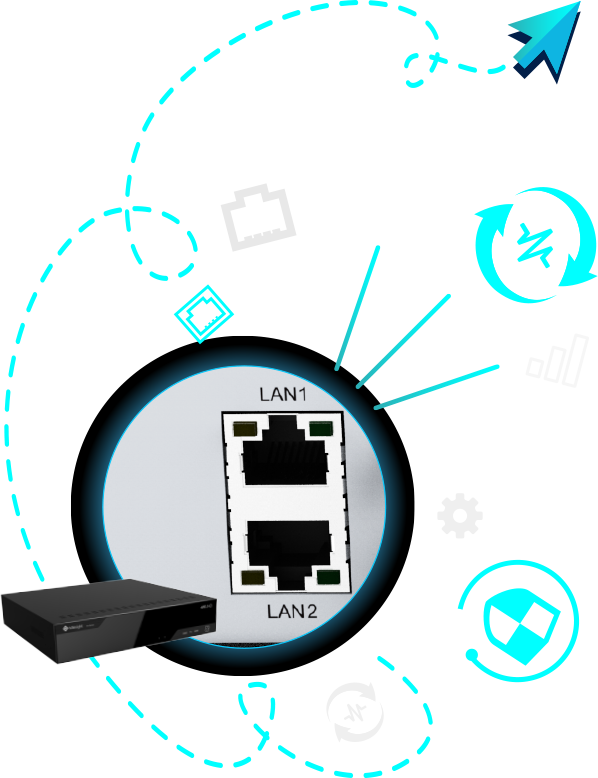

Dual LAN Interfaces for Three Network Working Modes
(Applicable for 4K H.265 Pro NVR 7000 and 8000)
1) Multi-address: Two Ethernet interfaces use different IP addresses and work separately in LAN1 and LAN2. One of them could be chosen as default LAN to transmit data.
2) Load Balance: Two Ethernet interfaces use the same IP address. And they share the bandwidth of the system, which is aimed at increasing the throughput.
3) Net Fault-tolerance: Two Ethernet interfaces use the same IP address. One is main, and the other is for backup. If the main Ethernet interfaces is damaged, it will switch over to the backup one automatically to ensure normal function.
General Functions
RAID 0/1/5/6/10 Supported
RAID (Redundant Array of Independent Disks) is a method of combing hard disks as a logical unit to achieve redundancy and greater speed of writing and reading data. There are 5 different RAID levels (0, 1, 5, 6, 10) supported by Milesight 4K H.265 Pro/PoE 7000 and Pro 8000 series, which can be configured according to user’s exact project requirements for data protection and storage space, providing reliability, high availability storage.

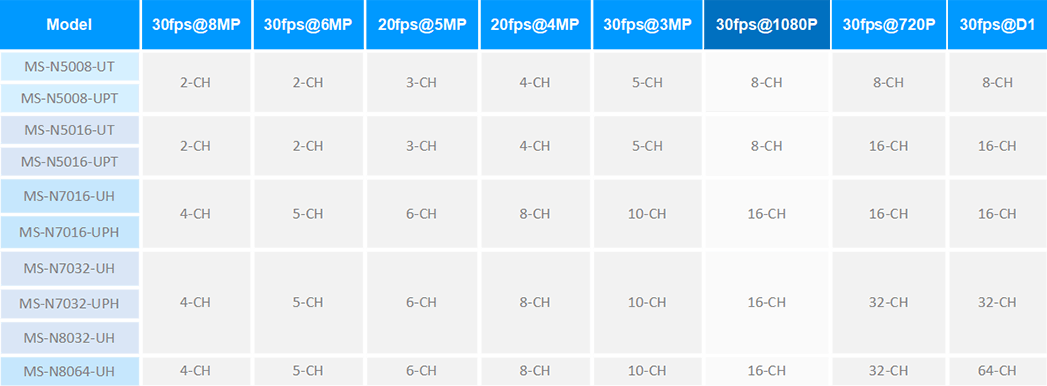

Powerful Decoding and Recording Performance
Milesight 4K H.265 Pro NVR Series is ideal for applications requiring robust decoding and recording performance.

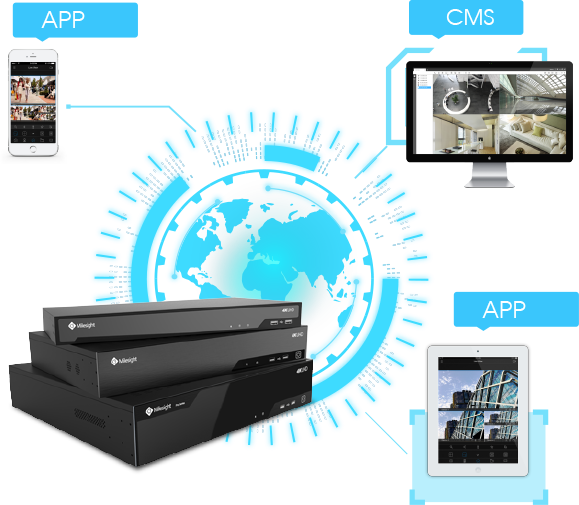

Remote Access Via Milesight CMS and APP
Milesight 4K H.265 Pro NVR Series can be easily accessed and managed remotely via Milesight CMS and mobile APP. Milesight CMS is an intelligent surveillance solution for users to manage up to 64 devices, with remote access to liveview and playback. Available on iOS and Android devices, APP is specially designed for Milesight NVR to provide users real-time surveillance.
