Introduction
Milesight introduces Recessed Installation in most of dome-type cameras, covering the basic product line to high-end product line to satisfy your diverse requirements. The Recessed Installation manages to securely mount a camera into a flat ceiling and is an effective option for indoor discreet monitoring. It allows cameras to seamlessly blend in with any interior to protect you and your assets 24/7 inconspicuously.

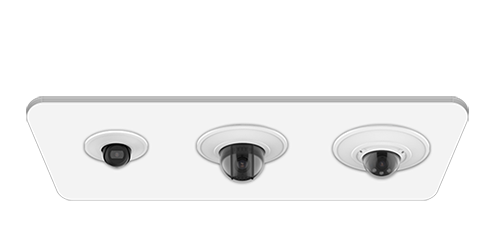

Full Coverage of Recessed Installation in Milesight Dome Cameras
Milesight offers two kinds of Recessed Mount --- A78 and A81. A81 is compatible with the cable out version of Weather-proof Mini Dome Network Camera and A78 is used for Motorized Pro Dome Network Camera and Mini PTZ Dome Network Camera. The camera can be tucked into the ceiling tile with only its dome part protruding while not interrupting the visual appearance of the building interior. With smoked dome cover AC-72(compatible with Motorized Pro Dome Camera) and AC-71(compatible with Mini PTZ Dome Camera) available, you can easily hide the direction of camera lens for not letting people see where it is pointing.
Recessed Installation of Mini PTZ Dome Network Camera

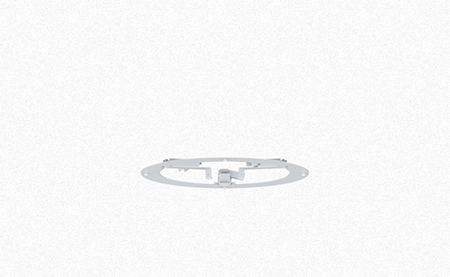

1. Assemble The Mounting Adaptor;

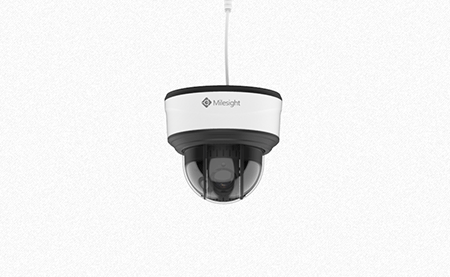

2. Remove The Black Cover;

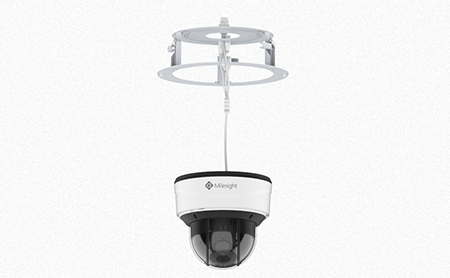

3. Lock The Camera with Mounting Adaptor;

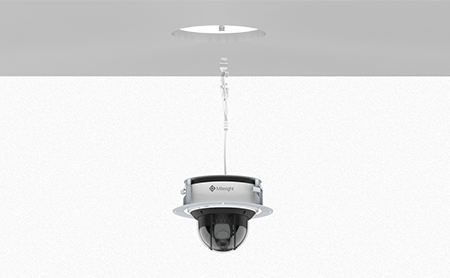

4. Connect The Cables and Tighten 3 Screws to Lock The Camera to The Ceiling;

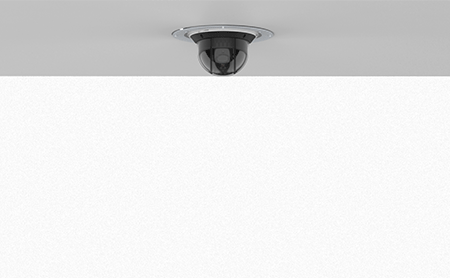

5. Put The Magnetic Ring Cover on.
