1.1 VMS-Pro Multi-Monitor Introduction

The VMS-Pro provides a powerful monitor surveillance tool that enhances security by providing administrators flexibility to monitor the live video from the network camera. It’s a video management system that works with the network cameras to provide video monitoring.

1.2 Environmental Requirement

The multi-monitor function supports up to 4 monitors. This function requires your PC need to support at least 2 display interfaces(HDMI/DVI/VGA).

1.3 Performance Overview

Multi Monitor

Chapter II Operations and Settings

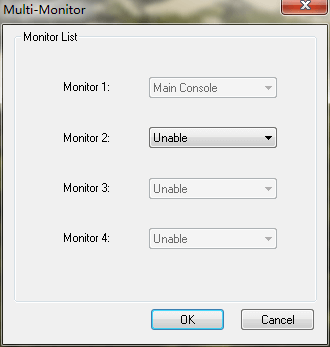

Add additional displayers to the PC. Click Tools, Multi Monitor to enter the configuration.

Multi Monitor

Then the window will pop up:

Multi Monitor

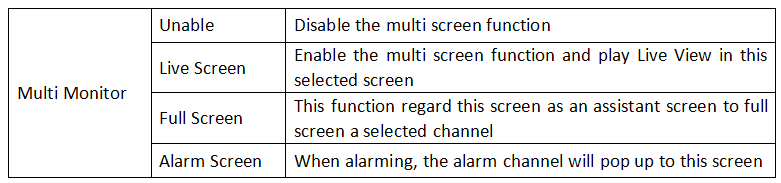

There are three more options for you to choose.

Multi Monitor

2.1 Live Screen

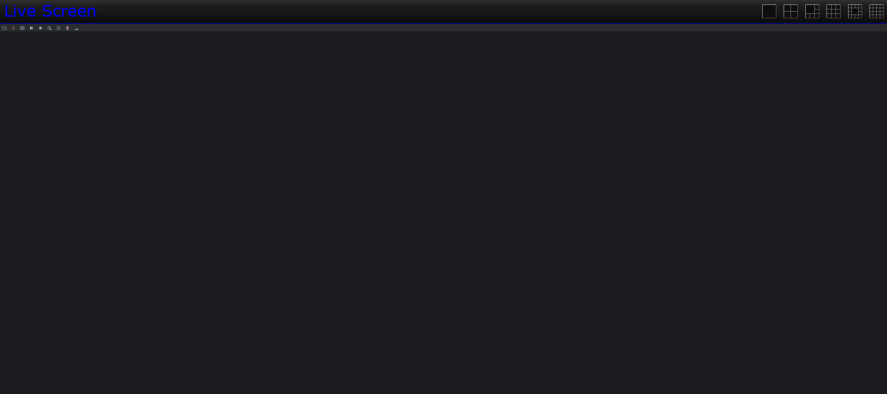

Choose the Live Screen, the second screen will show the display:

Live Screen

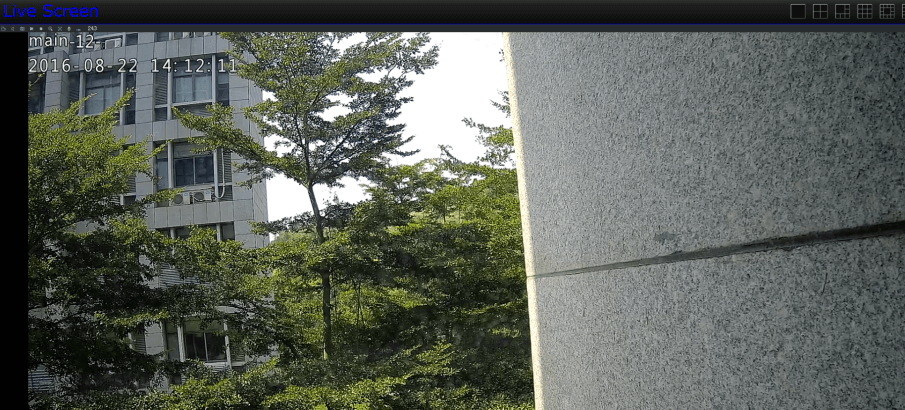

Left click your interested channel, drag and drop to the second screen. It will quickly display the Live View of this channel.

Live Screen

You can also select the different theme view to see more channels.

Live Screen

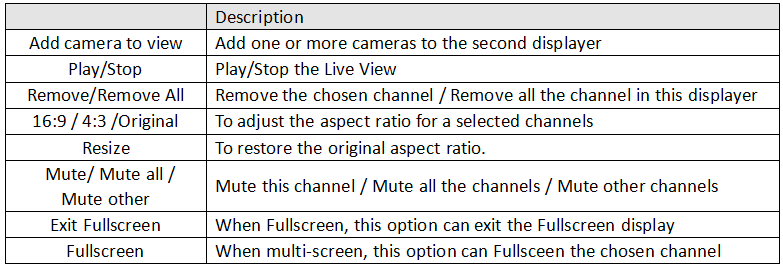

When playing Live View, you can right click the mouse. The list is shown follow:

Live Screen

The Live Toolbar is available in the second displayer.

Live Screen

For more details please refer to User Manual of VMS Pro.

2.2 Fullscreen

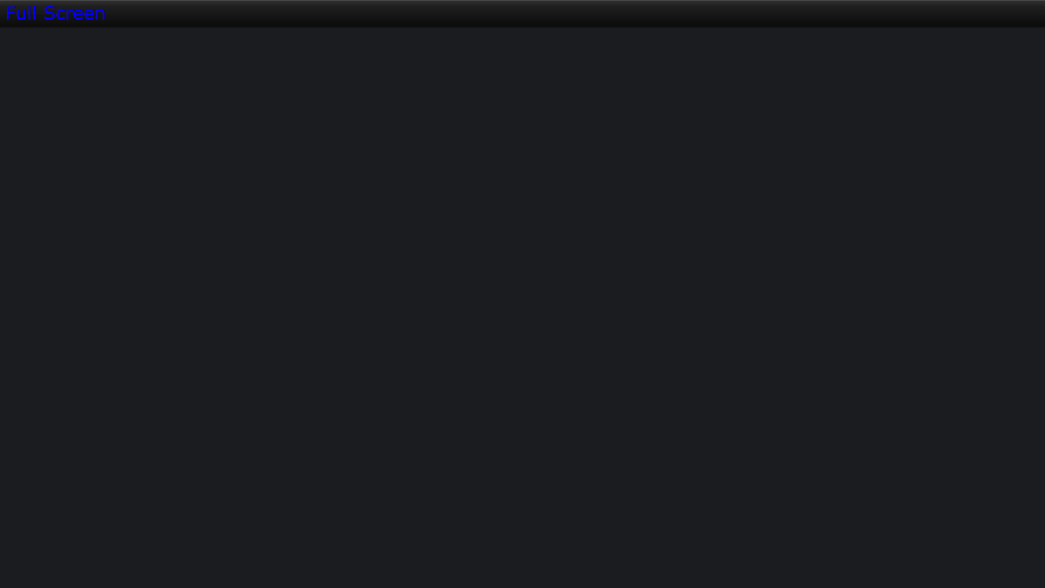

Choose the Fullscreen, the second screen will show the display:

Fullscreen

To use the second screen for fullscreen, you can double click a Live View channel, and this channel will be fullscreen displayed in the second screen.

When playing fullscreen Live View, you can right click the mouse. The list is shown follow:

Fullscreen

2.3 Alarm Screen

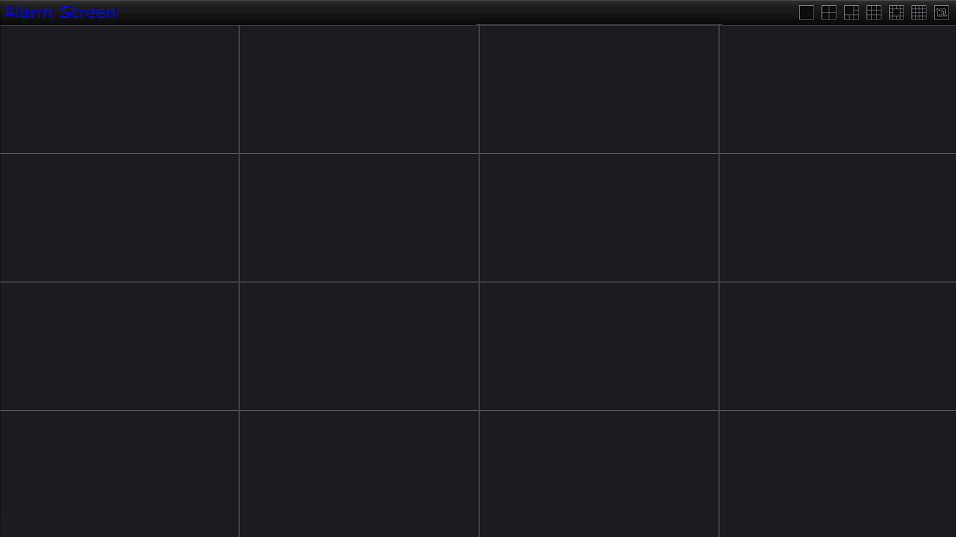

Choose the Alarm Screen, the second screen will show the display:

Alarm Screen

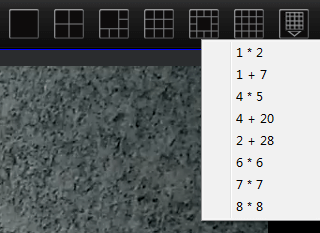

You can also select the different theme view to see more channels.

Alarm Screen

And you should set alarm parameters and set up the record schedule to make this alarm function work. After that, if any of the motion detection has triggered, the Live View will be shown in the second screen for 5 seconds.

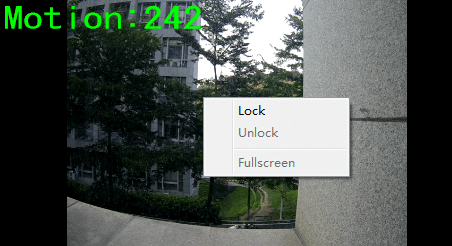

You can right click on the alarm channel, choose Lock to hold the channel.

Alarm Screen

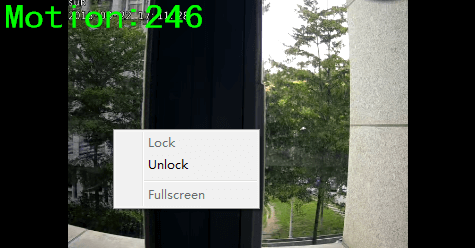

Click the Unlock option to unlock the locked channel.

Alarm Screen

Click the Fullscreen option to make the selected channel fullscreen.
