4K H.265 Pro NVR Series 8000

NVR de 32/64 Canales con Rendimiento 4K UHD

Almacenamiento 80TB · 4K Ultra HD · Doble Flujo · HDMI· RAID · Capatibilidad de Fisheye Modo · Audio E/S · Alarma E/S · ONVIF

Ultra HD H.265 HDMI VGA transcoding dual screen mobile connection alarm audio small nvr VCA N+1 Hot Spare ANR

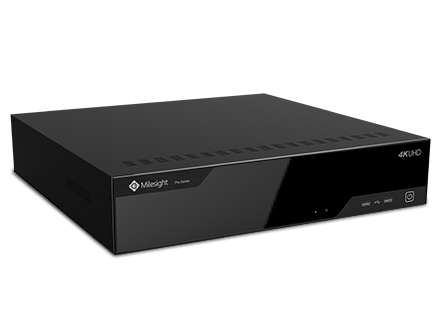

Pro NVR 8000
Pro NVR 8000
Pro NVR 8000
Pro NVR 8000
  • Input

    Network Video Input32-CH

    Bandwidth Requirement256Mbps or 200Mbps(When RAID is enabled) (Incoming)
    256Mbps or 200Mbps(When RAID is enabled) (Outgoing)

    Output

    HDMI Output2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    VGA Output2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.

    Dual StreamSupport

    Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF

    Synchronous Playback4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P)

    Format

    Video CompressionH.265+/H.265(HEVC)/H.264+/H.264

    Audio FormatG.711/AAC

    Storage

    SATA8*SATA HDD (3.5”)

    eSATA1*eSATA

    CapacityUp to 10TB capacity for each HDD

    Disk Array

    Array TypeRAID0, RAID1, RAID5, RAID6, RAID10

    Record

    Recording TypeContinuous, Motion Detection, Alarm, Smart Event, Event (Motion Detection, Alarm, Smart Event)

    SnapshotManual Snapshot

    PlaybackVideo Playback, Image Playback

    BackupVideo backup, Image Backup

    Network

    Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

    Interface

    Network Interface2*RJ45 100M/1000M

    USB Interface1*USB 3.0; 2*USB 2.0

    Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard

    Audio Input/Output1*RCA/2*RCA

    Alarm Input16-CH

    Alarm Output4-CH

    General

    CompatibilityONVIF

    Advanced FunctionANR, N+1 Hot Spare

    Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting

    Power SupplyAC 100V∼240V 50Hz∼60Hz

    Consumption≤35W(Without HDD)

    Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%

    Dimensions440mm(W)X420mm(D)X88.2mm(H), Rack Mountable Chassis(2.0U Standard)

    Weight6.0Kg

    Warranty3/5 Years

  • Input

    Network Video Input64-CH

    Bandwidth Requirement320Mbps or 200Mbps(When RAID is enabled) (Incoming)
    256Mbps or 200Mbps(When RAID is enabled) (Outgoing)

    Output

    HDMI Output2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    VGA Output2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.

    Dual StreamSupport

    Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF

    Synchronous Playback4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps@5MP), 8*(30fps @4MP), 10*(30fps @3MP), 16*(30fps @1080P), 32*(30fps @720P),64*(30fps @D1)

    Format

    Video CompressionH.265+/H.265(HEVC)/H.264+/H.264

    Audio FormatG.711/AAC

    Storage

    SATA8*SATA HDD (3.5”)

    eSATA1*eSATA

    CapacityUp to 10TB capacity for each HDD

    Disk Array

    Array TypeRAID0, RAID1, RAID5, RAID6, RAID10

    Record

    Recording TypeContinuous, Motion Detection, Alarm, Smart Event, Event (Motion Detection, Alarm, Smart Event)

    SnapshotManual Snapshot

    PlaybackVideo Playback, Image Playback

    BackupVideo backup, Image Backup

    Network

    Network ProtocolsIPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

    Interface

    Network Interface2*RJ45 100M/1000M

    USB Interface1*USB 3.0; 2*USB 2.0

    Serial Interface1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard

    Audio Input/Output1*RCA/2*RCA

    Alarm Input16-CH

    Alarm Output4-CH

    General

    CompatibilityONVIF

    Advanced FunctionANR, N+1 Hot Spare

    Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting

    Power SupplyAC 100V∼240V 50Hz∼60Hz

    Consumption≤35W(Without HDD)

    Working ConditionsTemperature: -10℃∼+55℃ / Humidity: 10%∼90%

    Dimensions440mm(W)X420mm(D)X88.2mm(H), Rack Mountable Chassis(2.0U Standard)

    Weight6.0Kg

    Warranty3/5 Years

  • * Naming Convention

      U - 4K

      T/H - H.265 Compression
