Introduction

License plate recognition (LPR/ANPR) camera, is a specialized type of video surveillance camera designed to recognize the numbers and letters of license plates on still or moving vehicles. They are designed with built-in algorithm that compensates for speed, weather, and headlight glare, which are typically for traffic solutions. Designing a surveillance system to monitor traffic and capture license plates is a more technical process than designing a traditional security camera system.

What Is License Plate Recognition (LPR/ANPR)

License Plate Recognition

License Plate Recognition is a technology that uses optical character recognition on images to read vehicle registration plates. It can use existing closed-circuit television, road-rule enforcement cameras, or cameras specifically designed for the task to store the images captured by the cameras as well as the text from the license plate.

How License Plate Recognition Works

License plate recognition involves capturing photographic video or images of license plates, whereby they are processed by a series of algorithms that are able to provide an alpha numeric conversion of the captured license plate images into a text entry.

Milesight License Plate Recognition

Milesight LPR/ANPR is embedded in Milesight Network Cameras. It automatically detects and captures licence plate in real time and then compares to a predefined list. Independent of the back end products, they are able to achieve standalone LPR functionality, realizing the further black and white list management.

Core Value of Algorithm Technology

The core dependence of any License Plate Recognition system is the effectiveness of its algorithms. The algorithms are quite meticulous and typically require hundreds of thousands lines of software code to compensate for such complexities. As a whole, a series of five primary algorithms are necessary for a License Plate Recognition system to be successful.

License Plate Localization

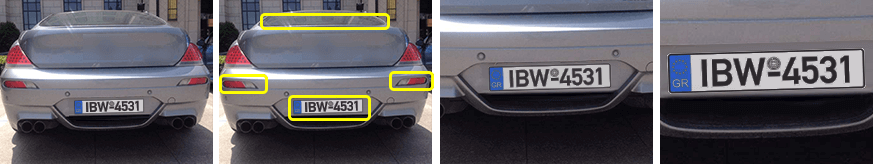

Localizing is an algorithmic function that determines what aspect of the vehicle's image is the license plate. For example, the algorithm must rule out a vehicle's mirror, grill, headlight, bumper, sticker, etc. In general, algorithms look for geometric shapes of rectangular proportion. (Figure 1)

Recognize license plate localization by LPR algorithm
Figure 1

Optimal Size and Orientation

They are components of algorithms that adjust for the angular skew of the license plate image to accurately sample, correct, and proportionally recalculate to an optimal size.

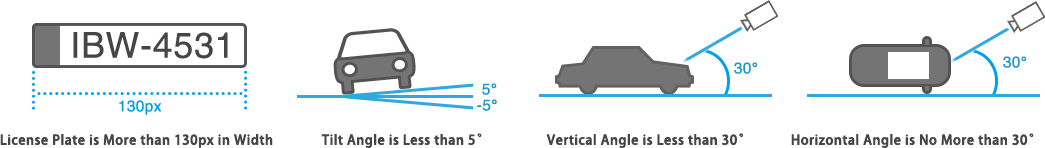

Note: The license plate should be more than 130 pixel in width and no more than 5° tilt; The recognition of vertical and horizontal angle should be less than 30° and no more than 30° respectively. (Figure 2)

License plate sizing and orientation of LPR algorithm
Figure 2

Character Segmentation

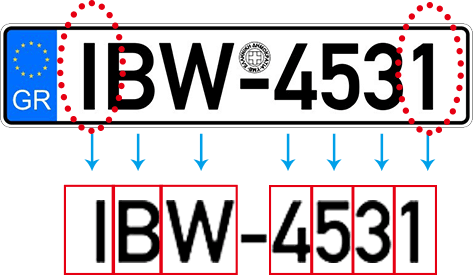

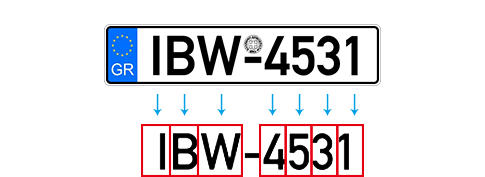

It is a algorithm that locates the separate alpha numeric characters on a license plate, which is able to figure out the letters and numbers for different countries and regions. (Figure 3)

Character segmentation of LPR algorithm
Figure 3

Optical Character Recognition (OCR)

It is a algorithm for Translating the captured image into an alpha numeric text entry. (Figure 4)

Optical character recognition (OCR) of LPR algorithm
Figure 4

Recognition Confidence Level

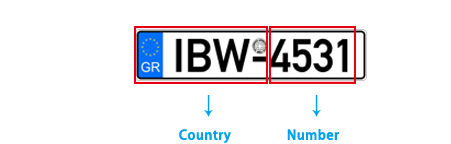

It is a algorithm to ensure the accuracy of the recognition to avoid the confusion of some similar characters. For example, the letter “I” and the number “1” which are alike could be rightly distinguished and correctly outputted. So does the letter “E” and the number “3”. (Figure 5)

Syntactical/Geometrical analysis of LPR algorithm
Figure 5

How Milesight LPR Network Camera Works

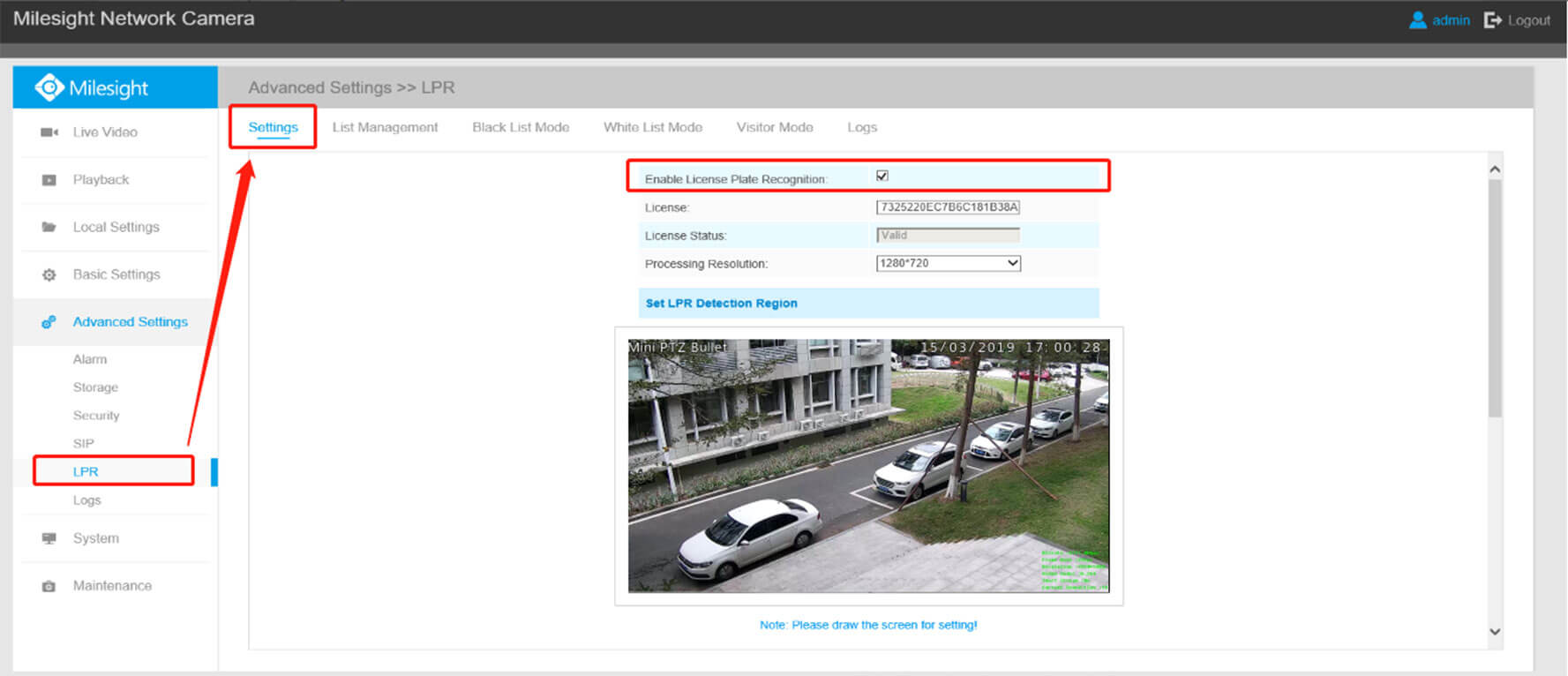

Step1: After log in the web, and go to Advanced Settings → LPR → Settings. Check the checkbox Enable License Plate Recognition, you can draw the screen to select area interested; (Figure 6)

Settings of Milesight LPR Camera interface
Figure 6

Step2: Schedule Settings. You can draw the schedule by clicking Edit button. And then click Save or Reset after setting. You also can copy the settings to other channels;

Step3: Save all the settings;

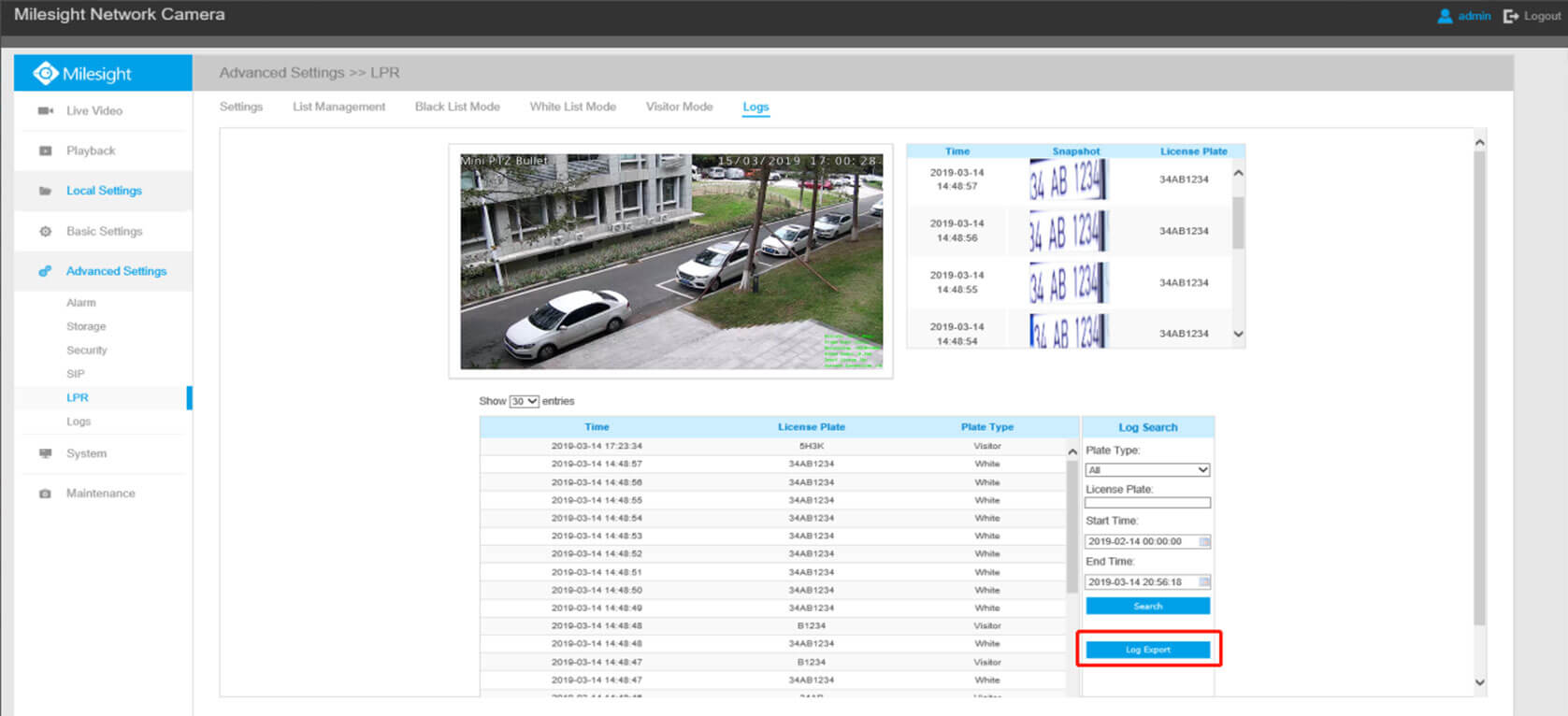

Step4: Output result. The results from LPR detection will be displayed on the page shown below. And the information could be exported by clicking the Log Export button. (Figure 7)

multiple-interfaces cable
Figure 7

Black/White List Management

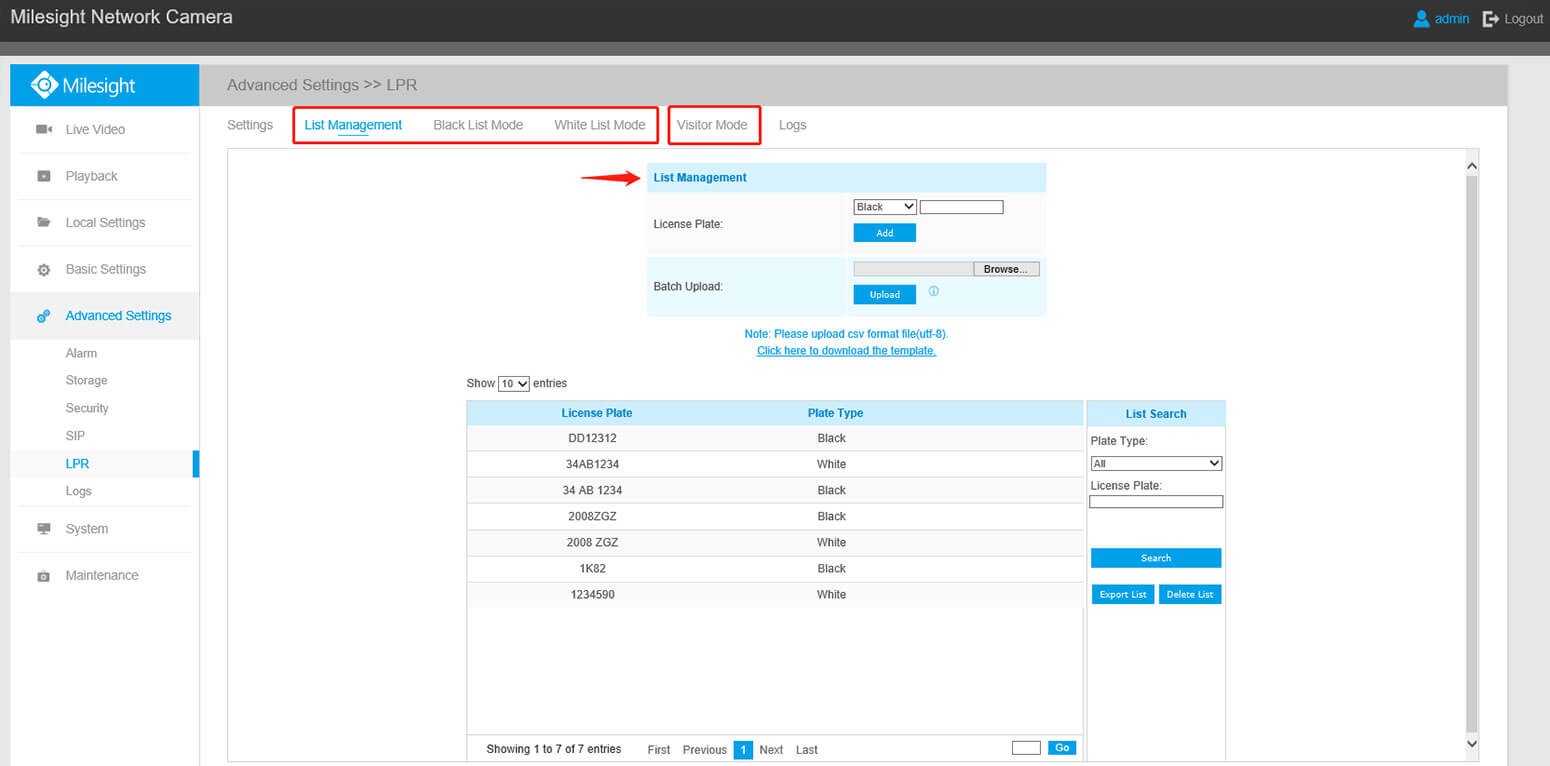

Add the license plates to this interface as Black or White type (Black/White List), and then you can set the alarm action for these license plates in the corresponding black list mode or white list mode interface. When these license plates are detected, the camera will respond accordingly to your settings. (Figure 8)

Note: When a license plate that is not marked as "Black" or "White" is detected, the camera will respond as visitor mode settings.

multiple-interfaces cable
Figure 8

Regional Support of Milesight LPR Network Camera

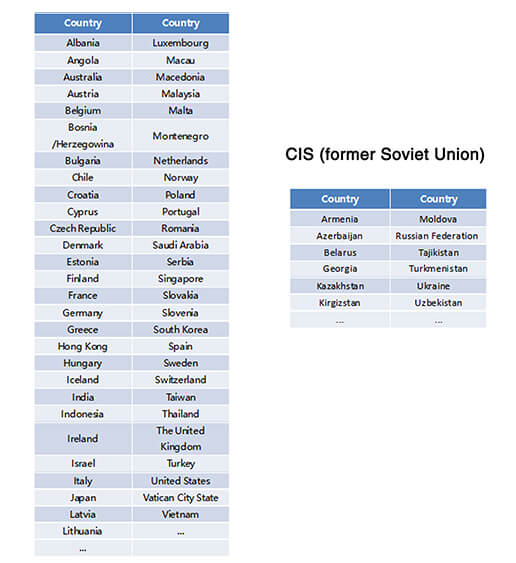

Vehicles are large mass objects with a variety of shapes, designs and colors. Algorithms must be able to determine what part of the vehicle is actually the license plate. Different countries, states, cities and regions have different standards, dimensions, colors and character sets for license plates. This inconsistency requires algorithms to be inclusive to such extensive criteria. Milesight LPR Cameras support various regions and countries.(Figure 9)

Download Milesight LPR Supported Region List
connet thernet cable with pro dome camera
Figure 9

Typical Applications

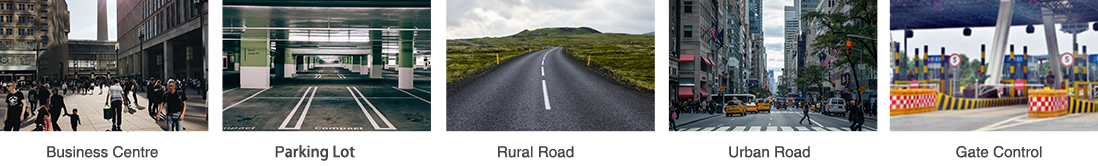

Milesight LPR Cameras application scenes
Figure 10

Key Features of Milesight LPR Network Cameras

Related Products

Conclusion

Reliable License plate recognition(LPR/ANPR) has traditionally been costly and only relevant for a limited number of applications. The rapid development of network cameras now allow for wider use of LPR solutions. They are of great help for increasing efficiency and security, and will become more widely used in the coming days.
