Milesight-Troubleshooting-How to set up Email

Milesight-Troubleshooting-How to set up Email.pdf

1. What is Email function?

Email function can be configured to send an email notification to all designated receivers if an Event is detected, e.g., Motion Detection, Video Loss, etc.

2. How to set up Email?

There are three steps to complete the setting.

Step1: Go to“Email”,then input some information about Email.

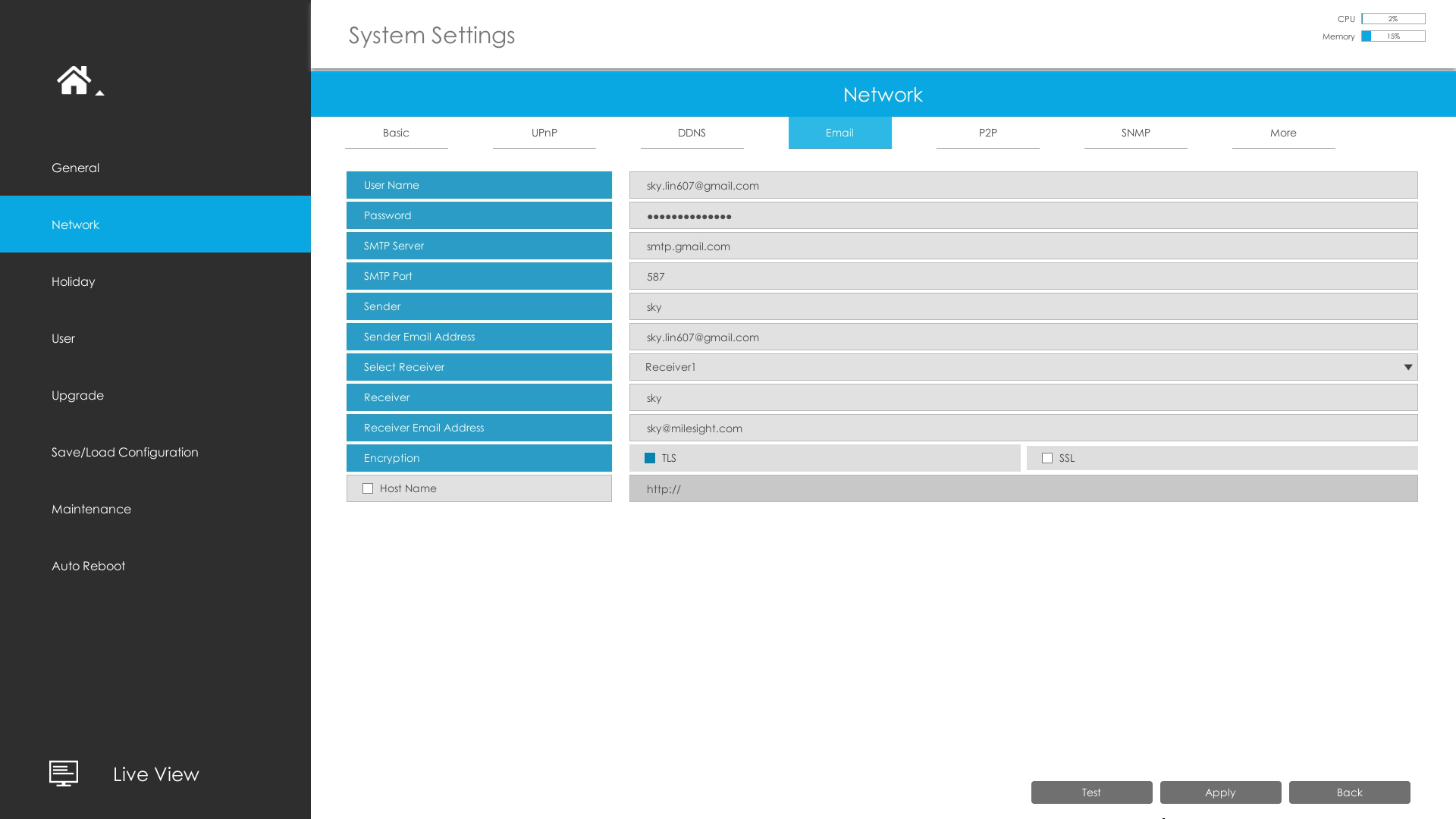

On Monitor: “Settings”→“Network”→“Email”

Email settings on NVR

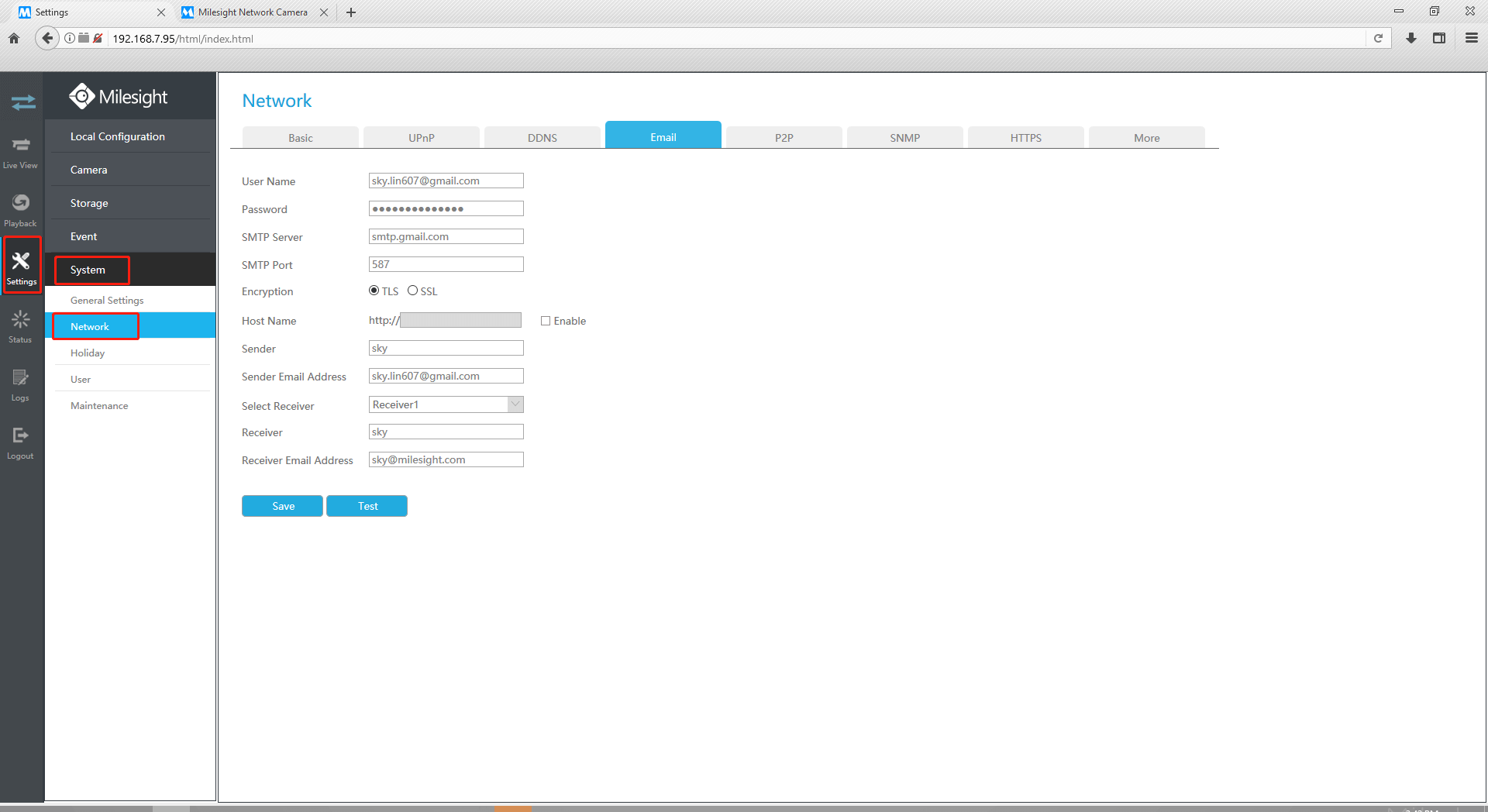

On Webpage: “Settings”→“System”→“Network”→“Email”

Email settings on NVR

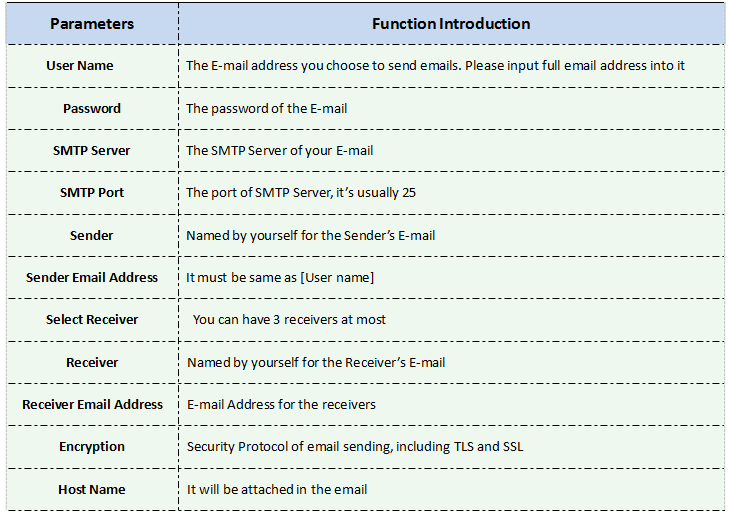

Description of the buttons:

Email settings on NVR

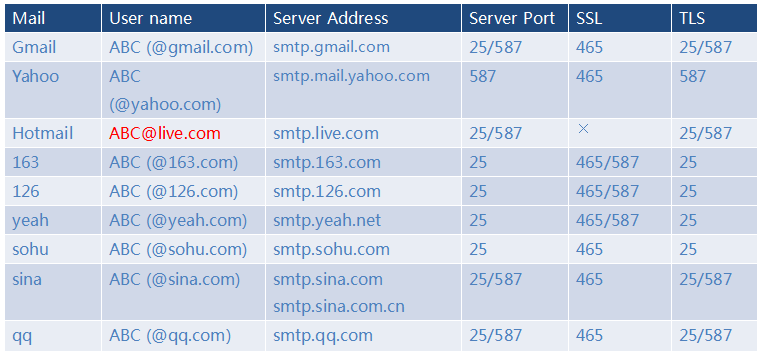

Note: The SMTP server address, port and other information of common mail

SMTP server address, port and other information of common mail

Step2: Click the “TEST”button to test if the Email setting is successful.

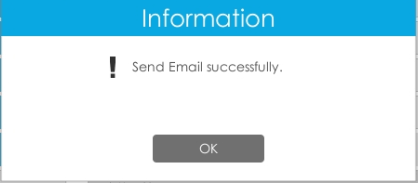

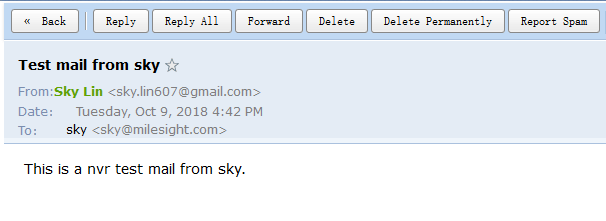

If there is a “Send Email Successfully” prompt and receiving a TEST Mail, it shows that Email has been set successfully and you can take the next step.

Check Email
Check Email

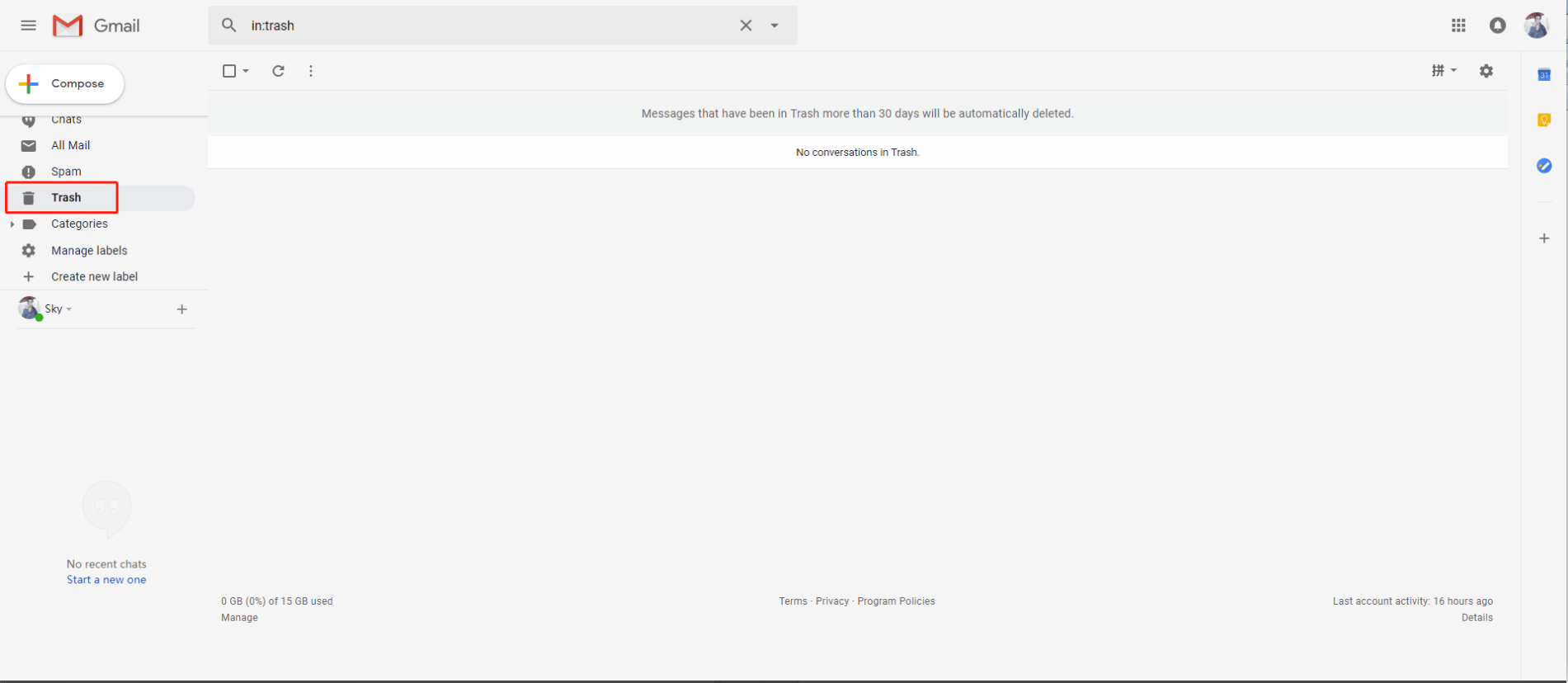

Note: If there is a “Send Email Successfully” prompt but do not receive a TEST Mail, please check the Trash to see if it is recognized as spam mail.

Check Email

If there is “Fail to send email”or other prompts, you need to do the following steps to troubleshoot.

1) Check if all the information you filled in is correct.

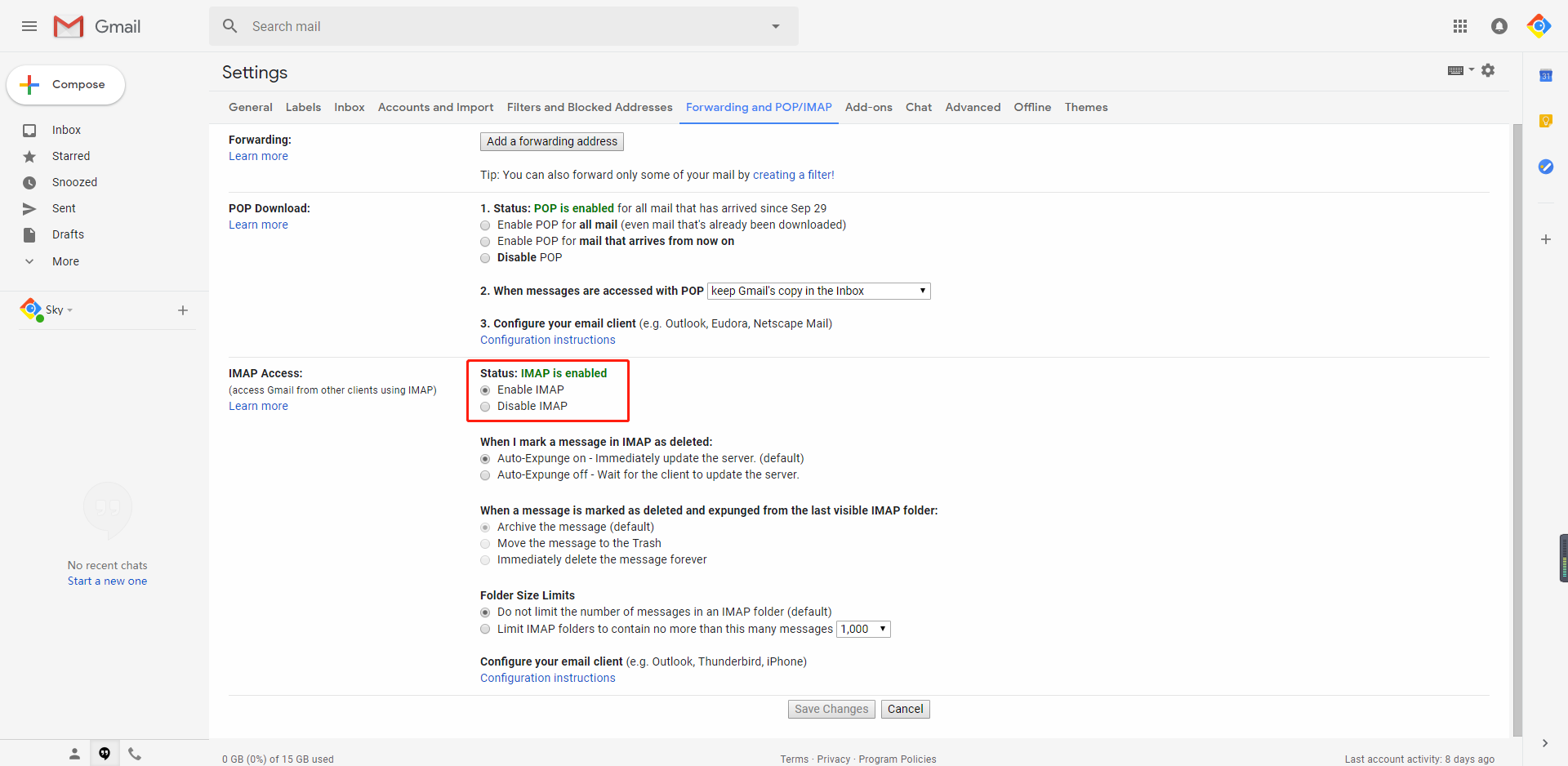

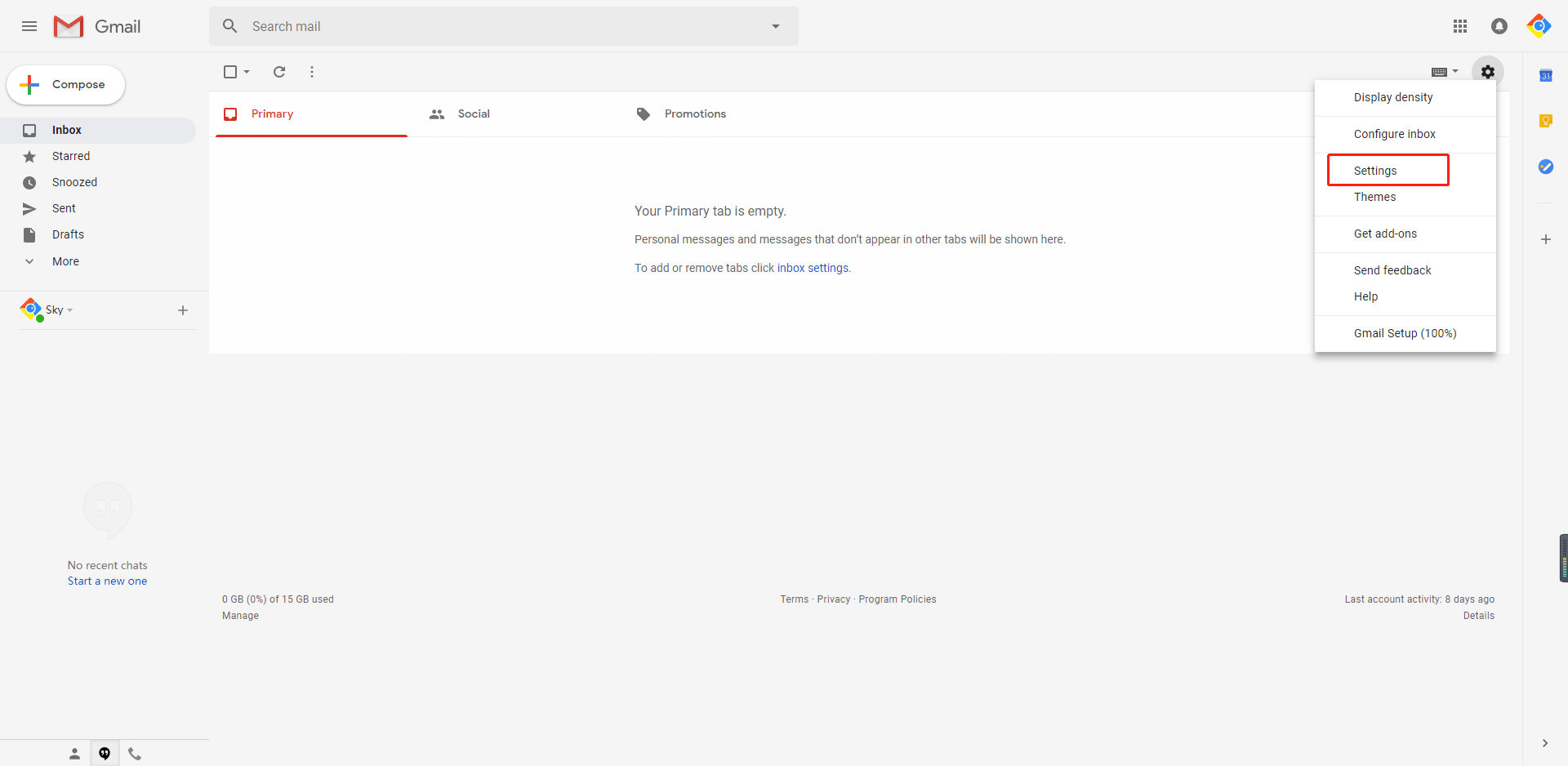

2) Check if the Email enables IMAP.

Check Email
Check Email

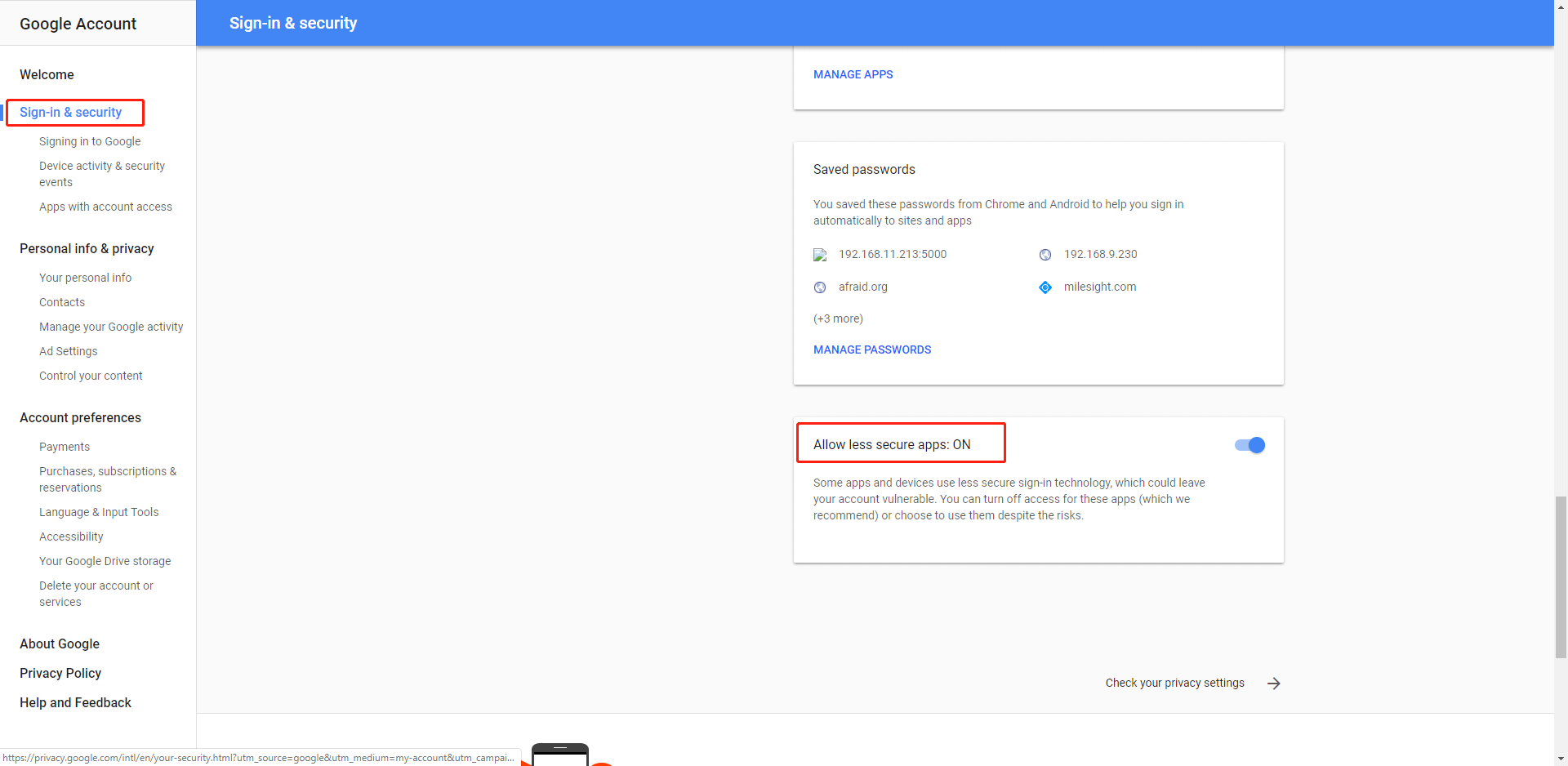

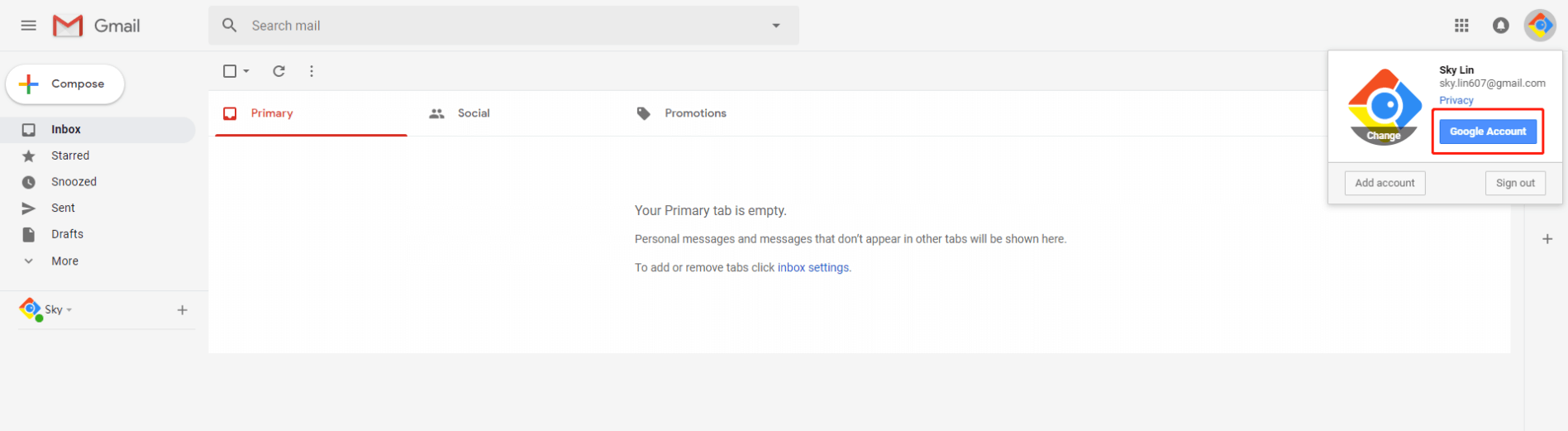

3) Check if the Email enables “Allow less secure apps”.

Check Email
Check Email

Step3: After Email setting, you can use it in Events. Take Motion Detection as an example. Enables the Motion Detection and set the Motion region and schedule first, then click “Action”to schedule “Email Linkage” and save the setting.

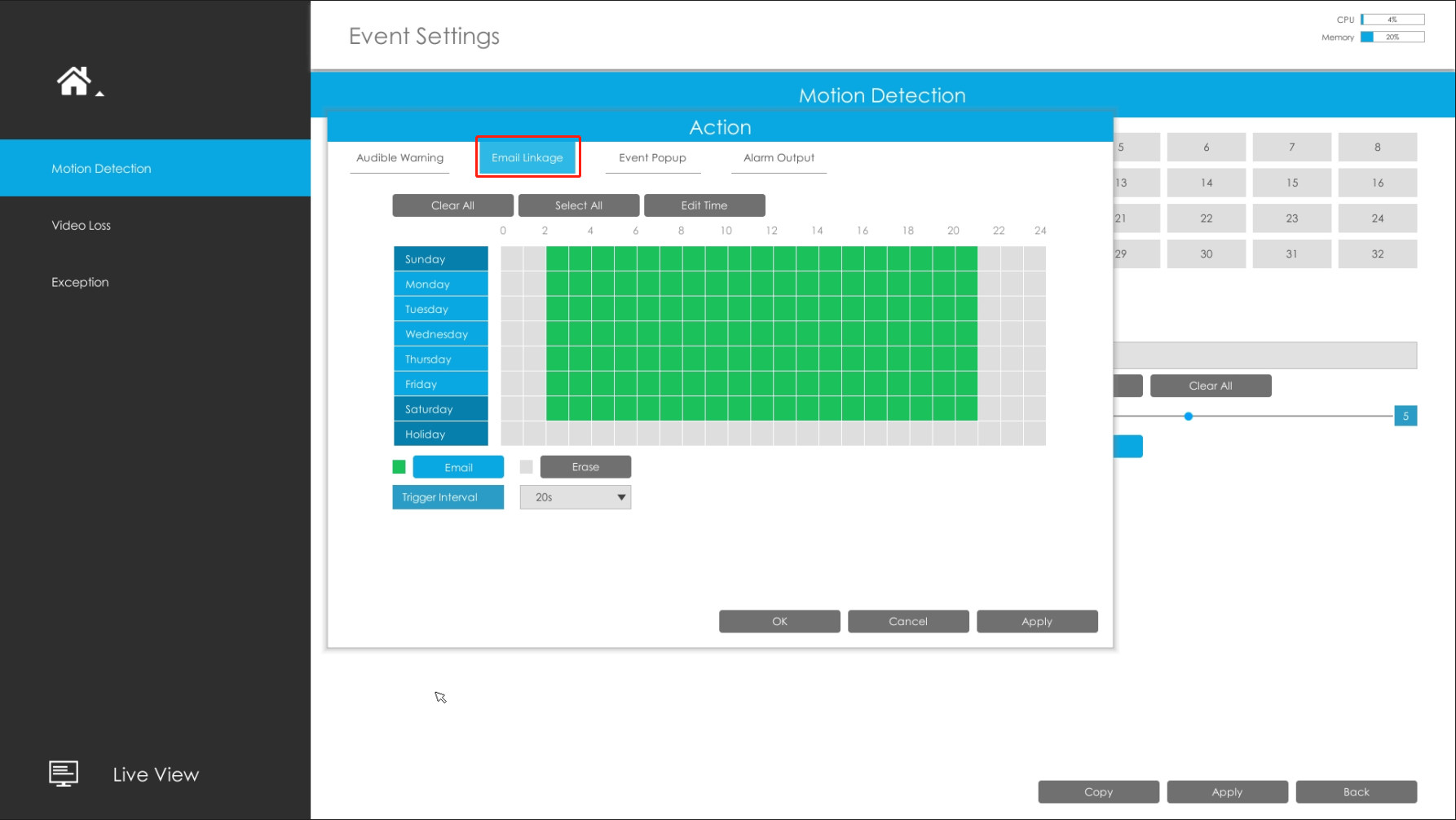

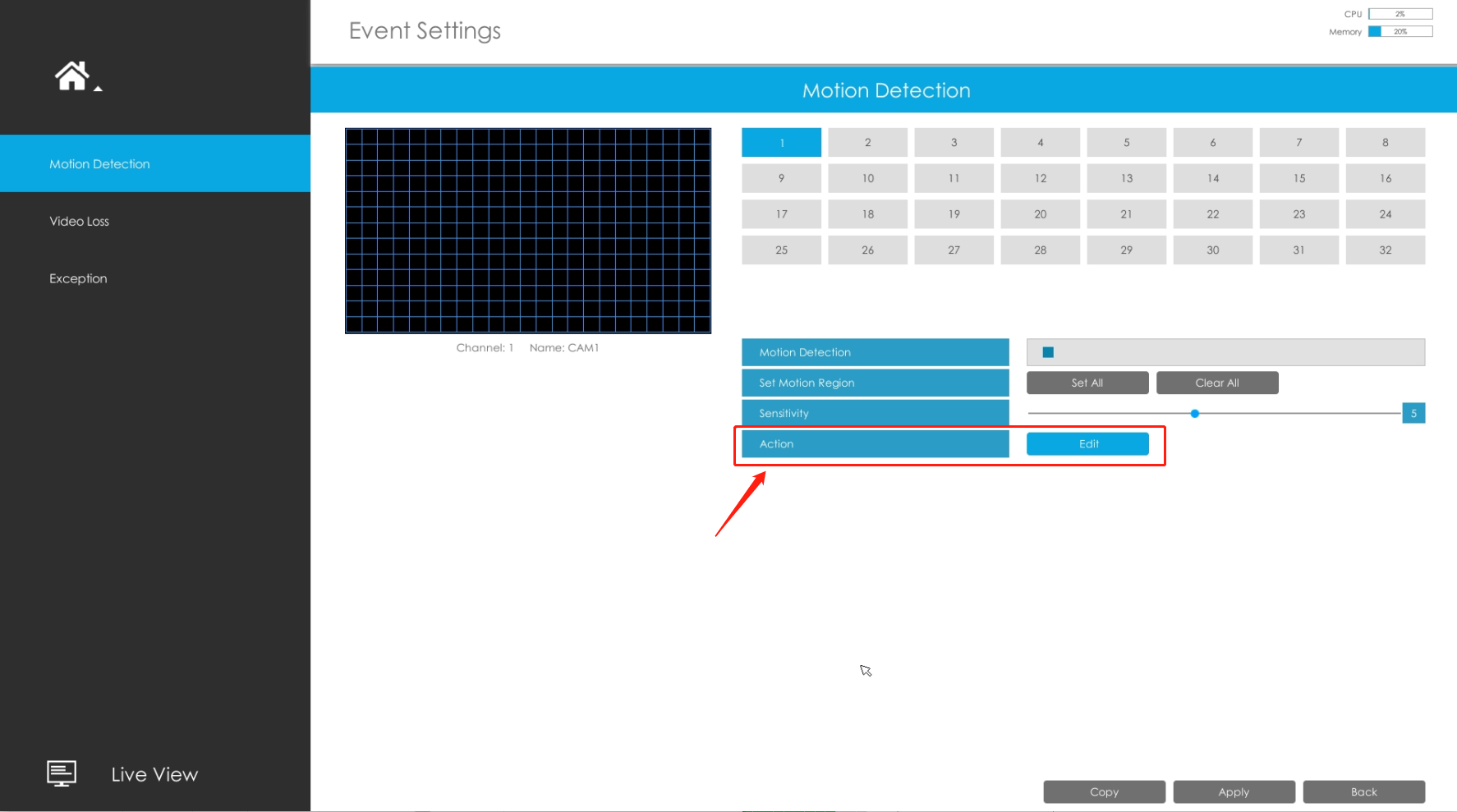

On Monitor:

Set email linkage for event
Set email linkage for event

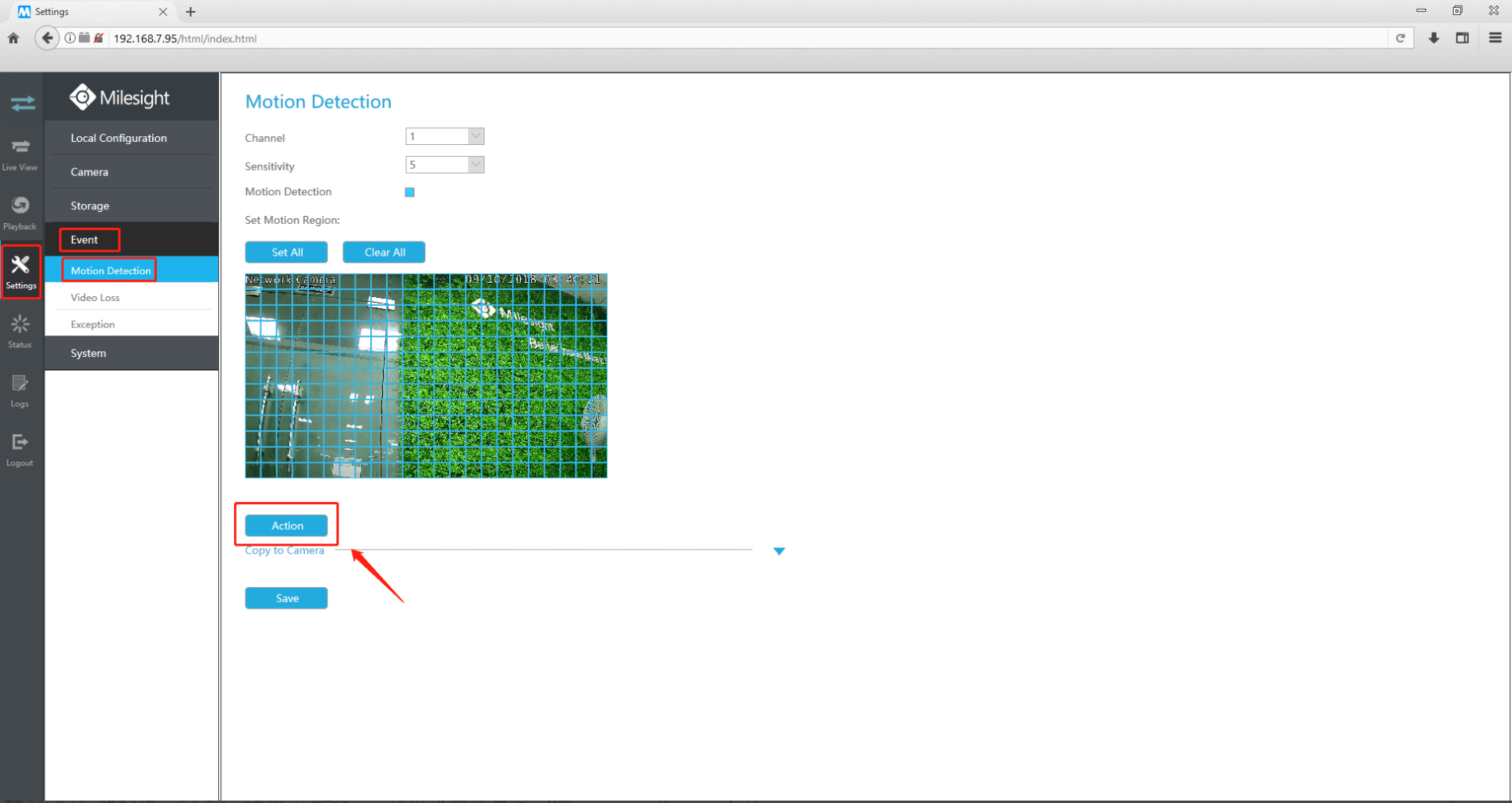

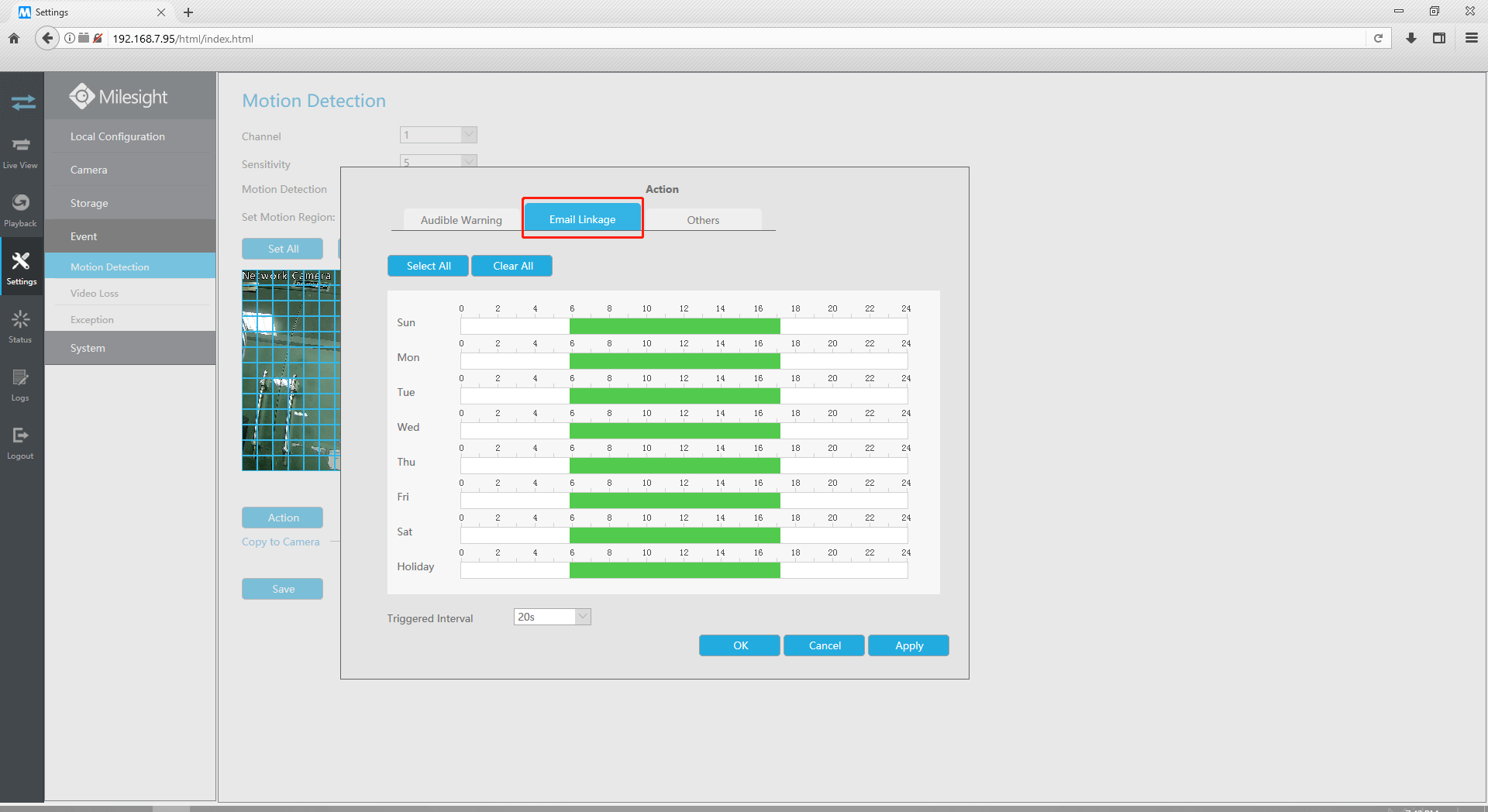

On Webpage:

Set email linkage for event
Set email linkage for event

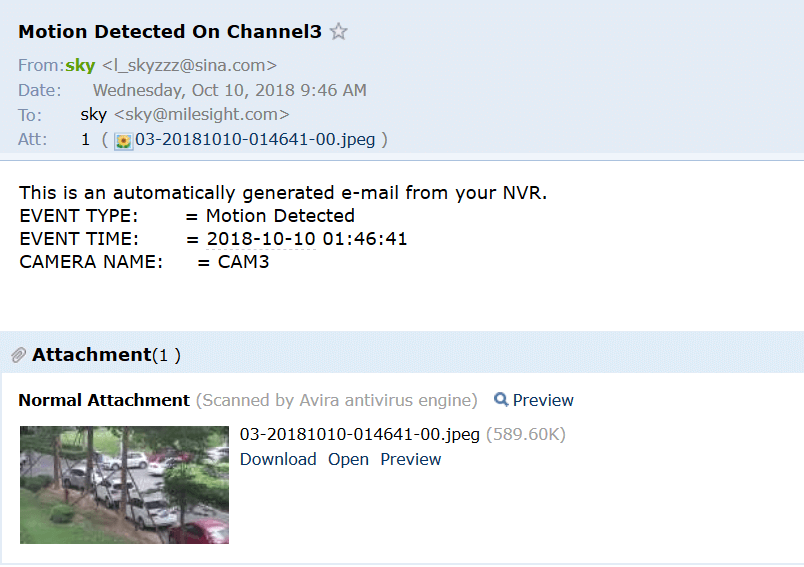

After setting motion detection and alarm action successfully, when the motion detection is triggered, you will receive an Email and the detail as follows.

Set email linkage for event

Note:The Email setting of other Events is the same as above.
