Milesight-Troubleshooting-How to Upgrade Firmware for NVR

Milesight-Troubleshooting-How to Upgrade Firmware for NVR.pdf

1. Choose Firmware

4K Series

71.X.0.X(MS-N50XX-UH/MS-N70XX-UH/MS-N70XX-UPH/MS-N80XX-UH): http://www.milesight.com/support/download.asp
72.X.0.X(MS-N1009-UNT/MS-N1009-UPT/MS-N50XX-UT/MS-N50XX-UPT): http://www.milesight.com/support/download.asp
73.X.0.X(MS-N1004-UC/MS-N1004-UPC): http://www.milesight.com/support/download.asp

Previous Versions

61.7.0.7-r5(MS-N1009-UT): https://drive.google.com/open?id=0B8u2Oc2-fG-mc0dCR3paYzNKMGs

30.7.0.7(MS-N5009/5016): https://drive.google.com/open?id=0B3OW8hozx4jWT182aXBfMGxGUGs

31.7.0.7(MS-N1004/1008): https://drive.google.com/open?id=0B3OW8hozx4jWd2FhTmk0cWJmNFk

2.7.0.7(MS-N5004/5008): https://drive.google.com/open?id=0B3OW8hozx4jWY3lmOF8takNQWnc

1.7.0.7-r3(MS-N7016/8016/8032): https://drive.google.com/open?id=0B8u2Oc2-fG-md0pwOFJMM3V4X2c

Note:

1) The second number of firmware stands for major version number, while the last two number means the minor version number. Take 71.7.0.5 for example, it means that the NVR’s major version is 7 and it’s minor version is 5.

2) You can use monitor to upgrade your NVR, or you can upgrade it via browser. If click the link to get the upgrade firmware failed, please copy the link to browser and open again.

3) If the firmware of your MS-N1009-UT begins with 61.X.X.X, or the SN begins with 12xxxxxxxxx, then use the 61.X.X.X.

If your MS-M1009-UT firmware begins with 71.X.X.X, or the SN begins with 13xxxxxxxxxx, then use the 72.X.X.X.

2. Steps for Monitor

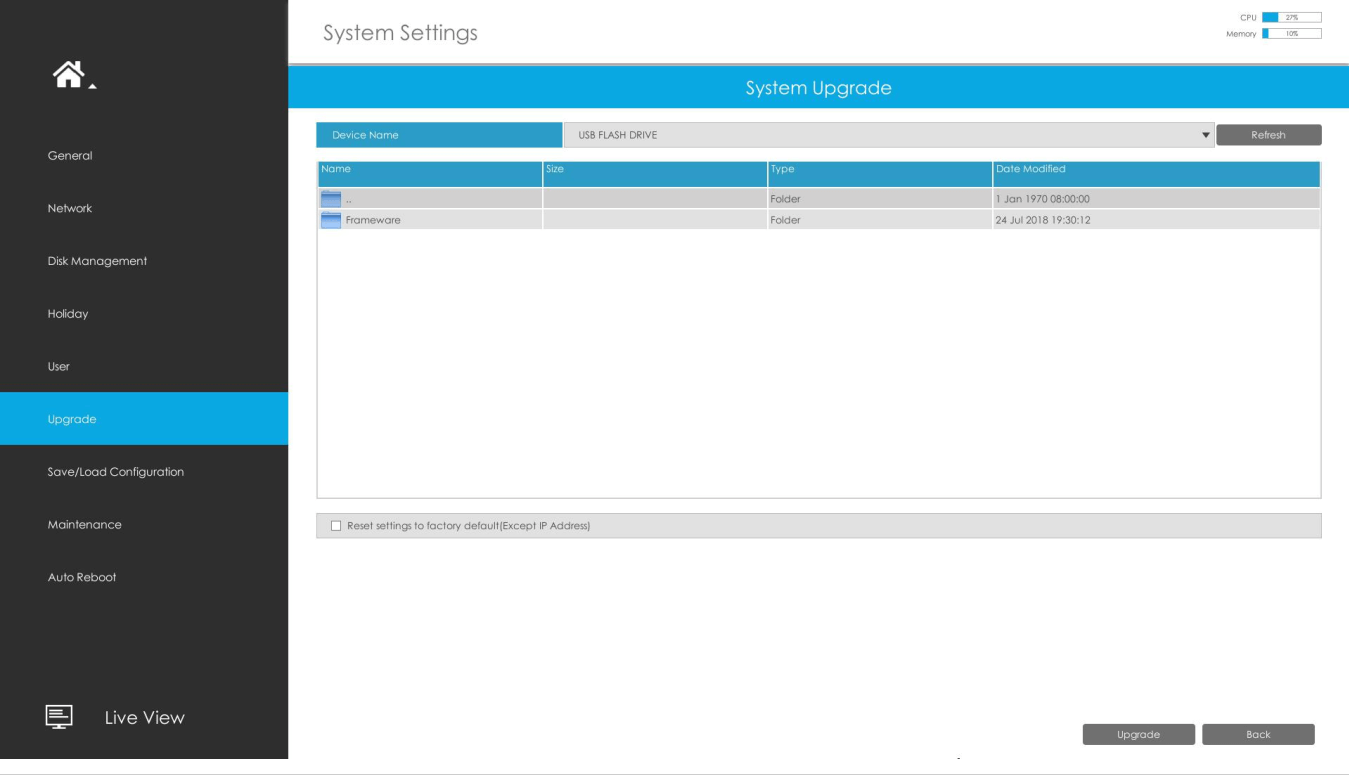

Step1: Enter upgrade menu by clicking “Main Menu”→“System Settings”→“Upgrade”.

Upgrade on monitor

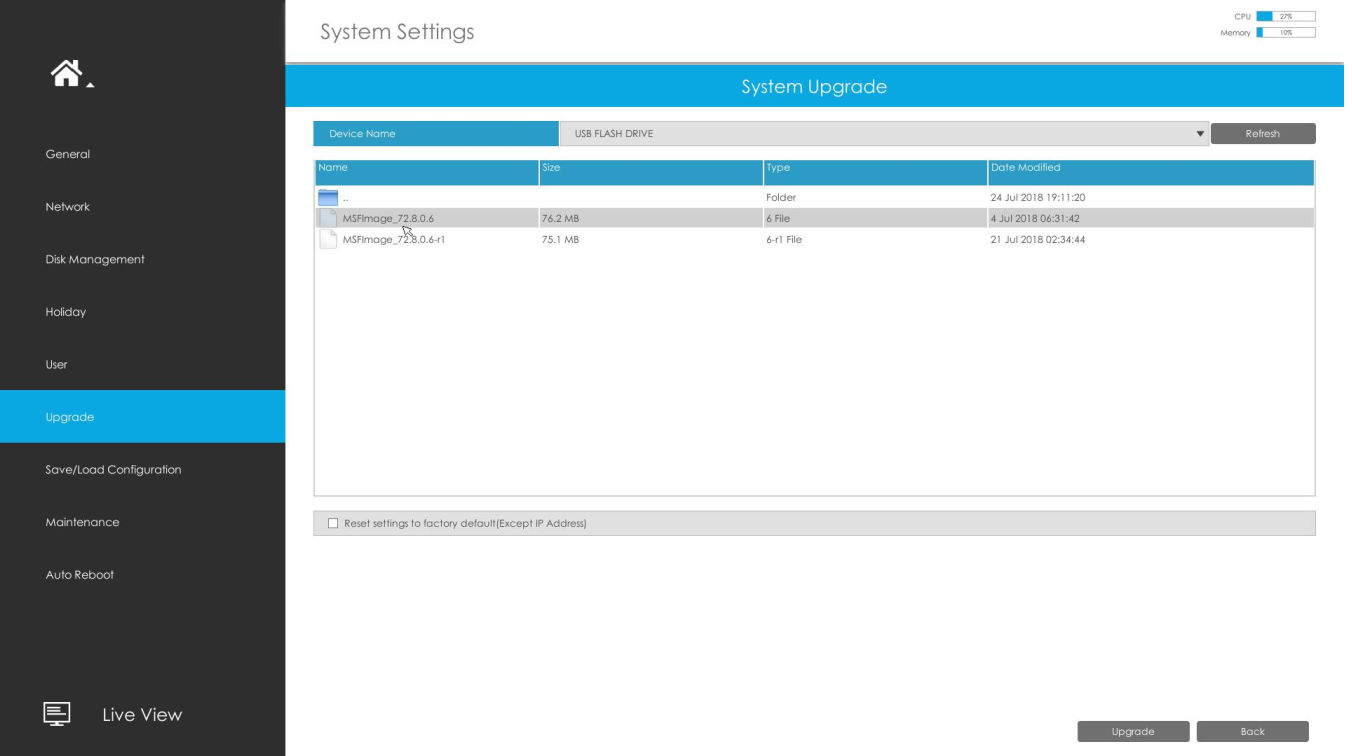

Step2: Search for the device you downloaded in your USB, and select the file.

Upgrade on monitor

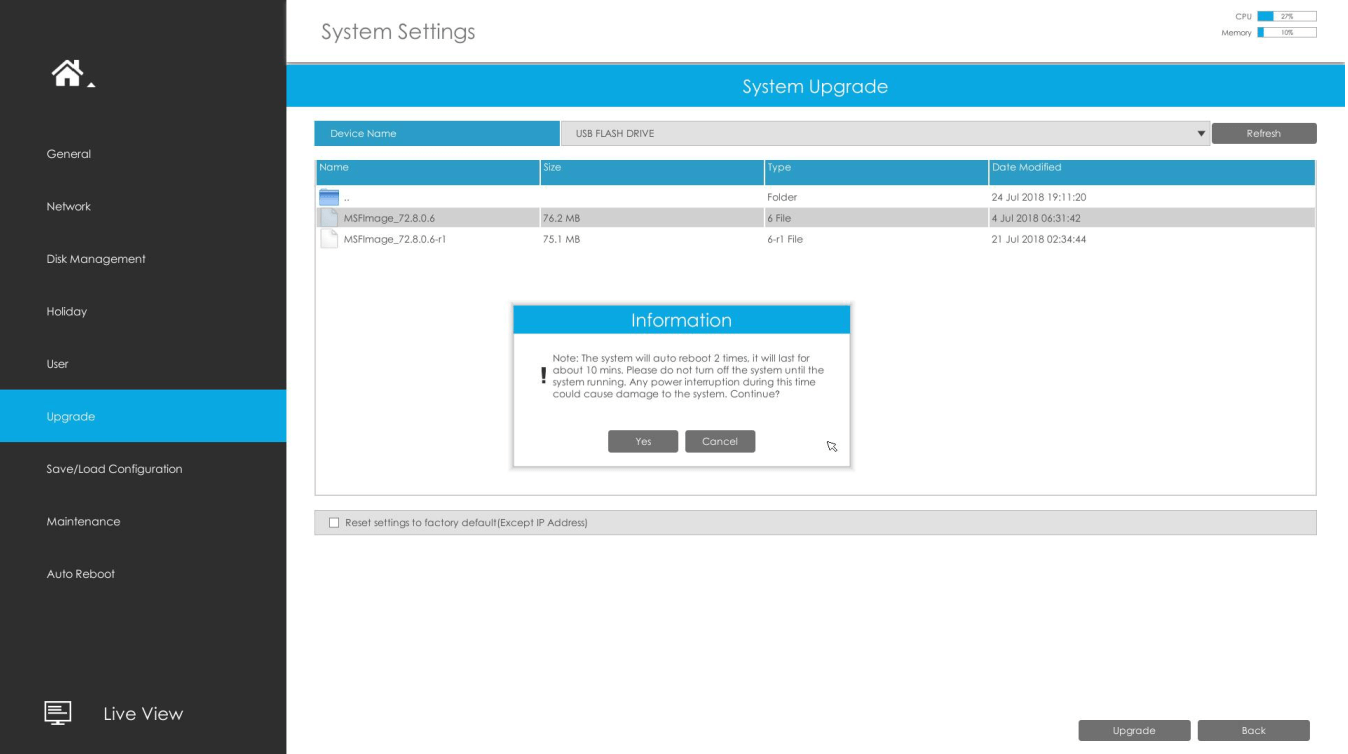

Step3: Click “Upgrade” button to confirm the upgrade.

Upgrade on monitor
Note:

The system will be automatically rebooted after being confirmed upgrade.

3. Steps for WEB

Step1: “Settings”→“System”→“Maintenance”.

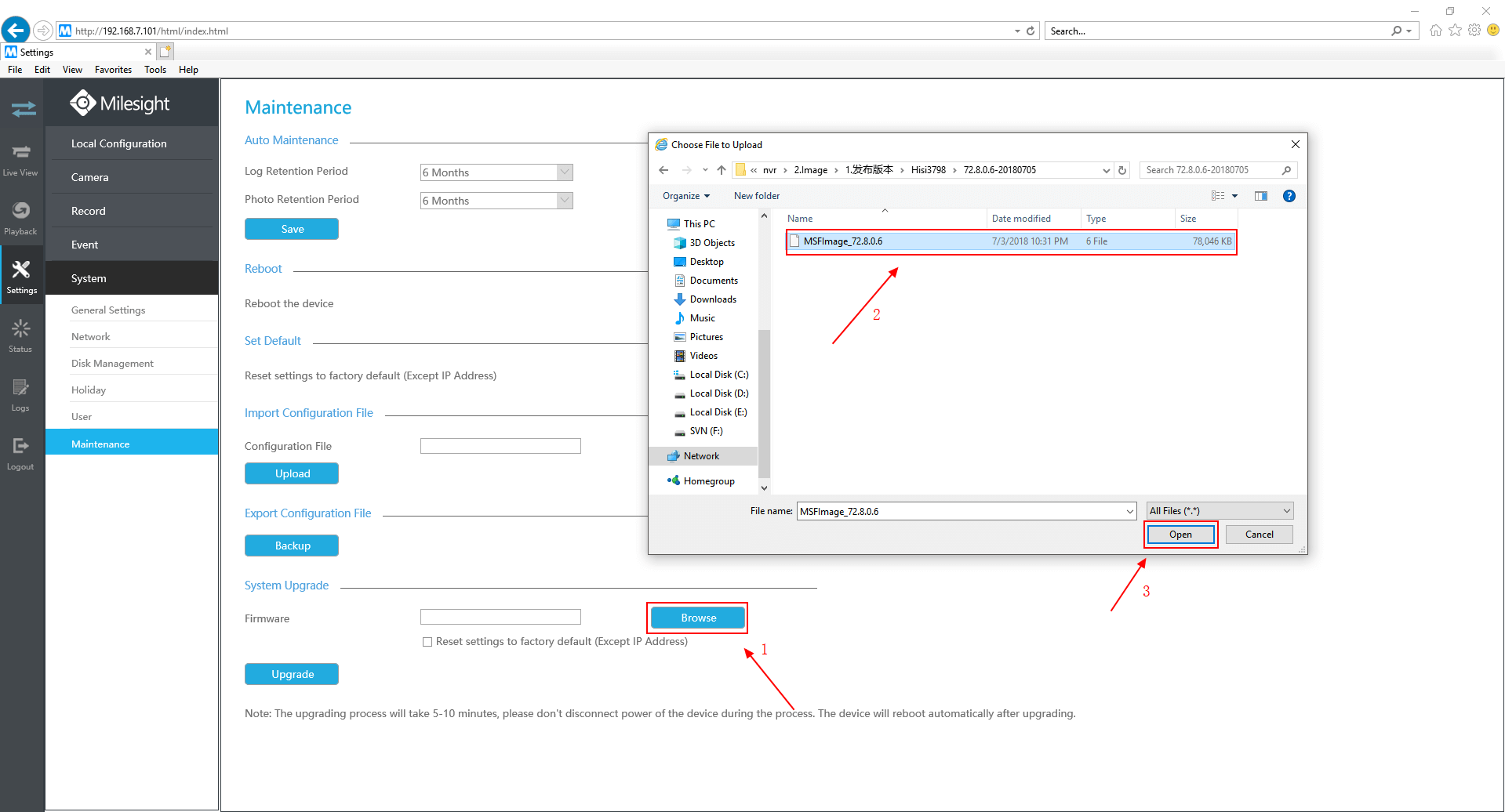

Step2: Click “Browse” and find the position where you downloaded.

Note:

Remember to check the model, use the corresponding firmware for your model.

Upgrade on web

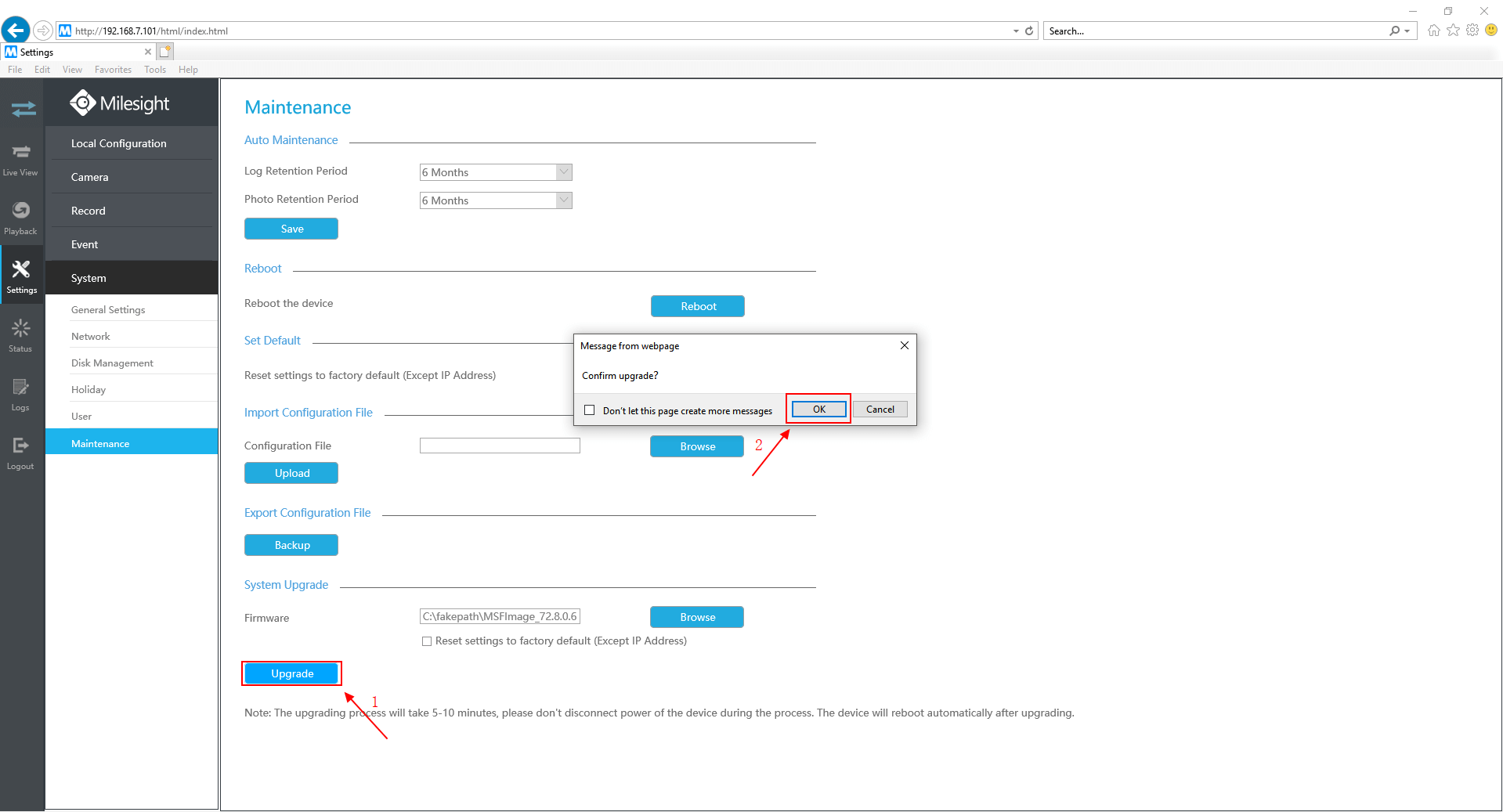

Step3: After choosing the corresponding firmware, click “Upgrade” button to confirm the upgrade.

Upgrade on web
Note:

The system will be automatically rebooted after being confirmed upgrade.

4. Steps for SmartTools

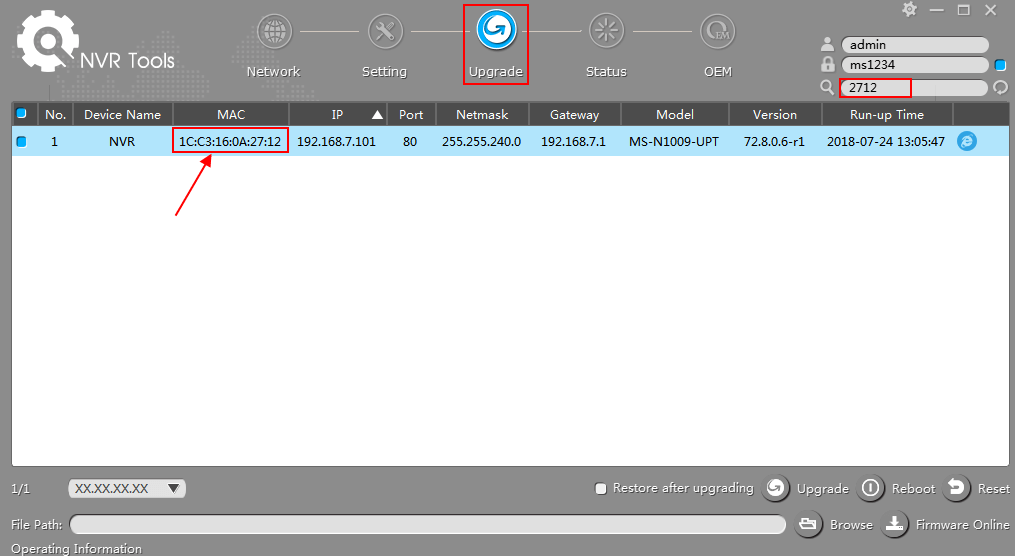

Step1: Use Milesight Smart Tools to search out this NVR according to its MAC address.

Upgrade on smart tools

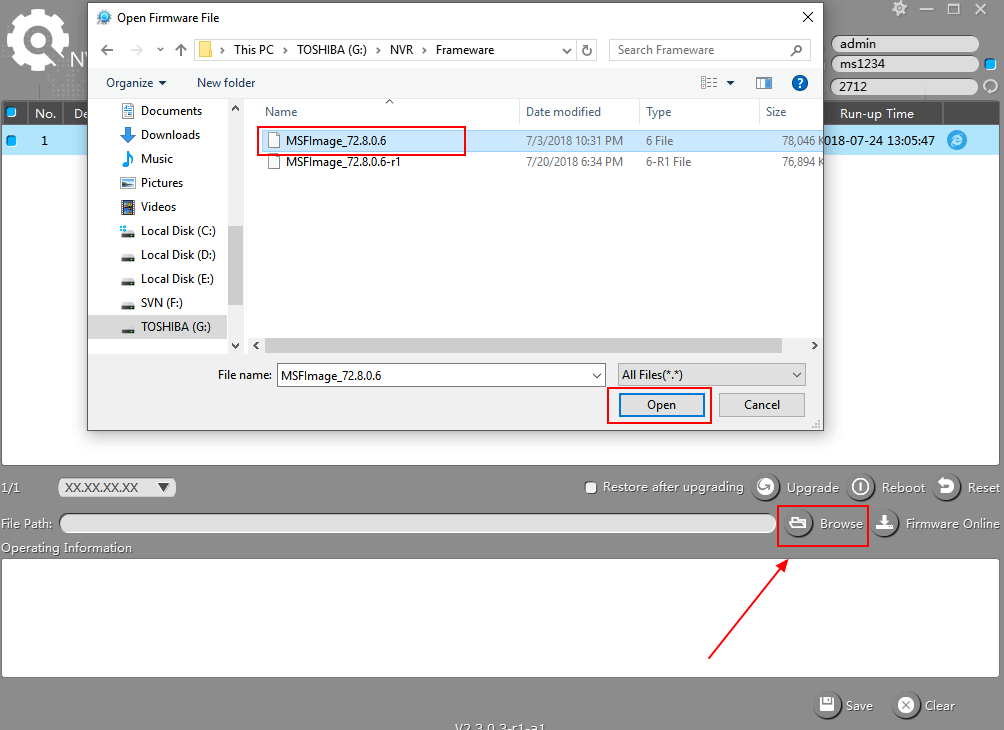

Step2: Click “Browse” and find the position where you downloaded.

Upgrade on smart tools

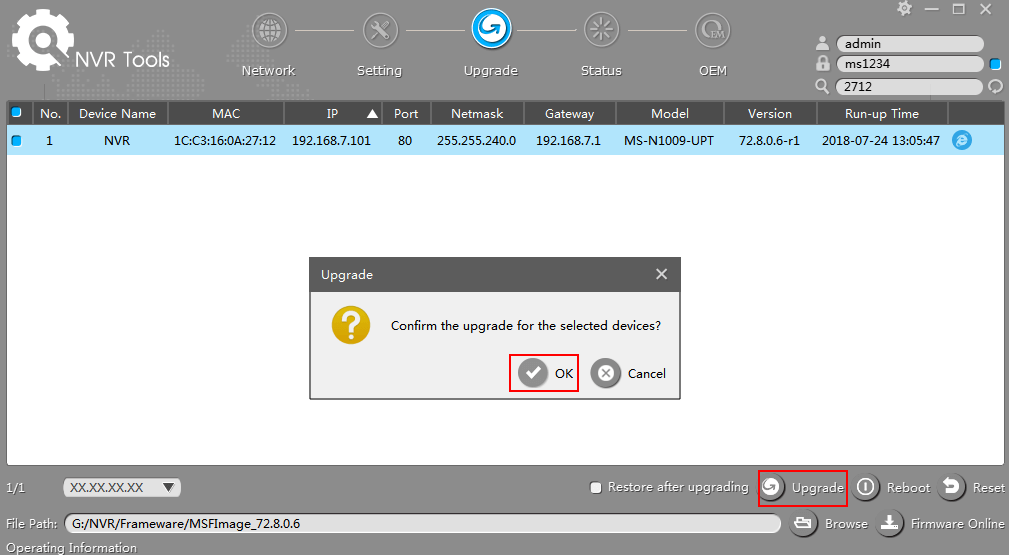

Step3: After choosing the corresponding firmware, click “Upgrade” button to confirm the upgrade.

Upgrade on smart tools
Note:

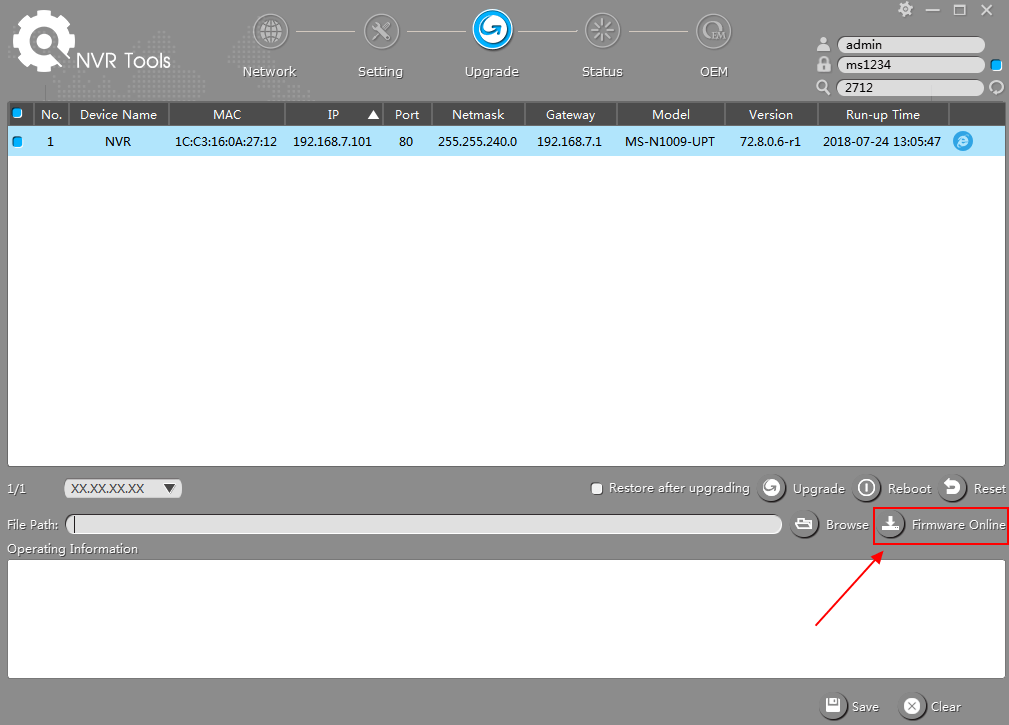

You can also use Smart Tools to download the latest firmware.

“NVRTools”-“Upgrade”-“FirmwareOnline”

Upgrade on smart tools

The link for Smart Tools:

http://www.milesight.com/DownloadFile/Software/Smart_Tools/Milesight_Smart Tools_Setup.zip
