Milesight-Troubleshooting-Motion Detection on NUUO NVR

Milesight-Troubleshooting-Motion Detection on NUUO NVR.pdf

The Network Video Recorders of NUUO support motion detection itself. By a few steps of configuration on the NVR you can have a better experience on Milesight IP Cameras.

1. Enable Motion Function on the NVR

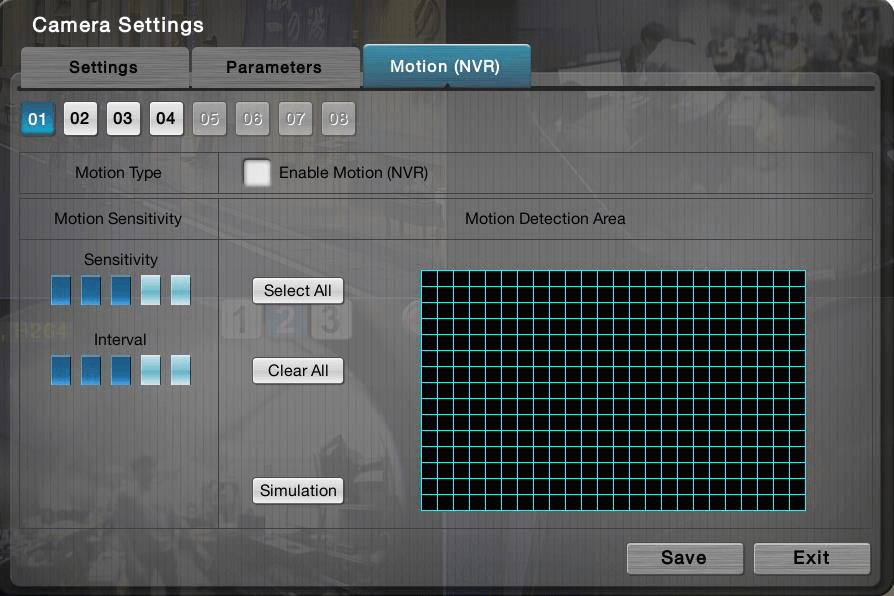

Step1: On the Live View screen, click Menu list button→Main Menu button→ Camera button→ Camera Settings button→ Motion(NVR)tab.

Motion detection on NUUO NVR

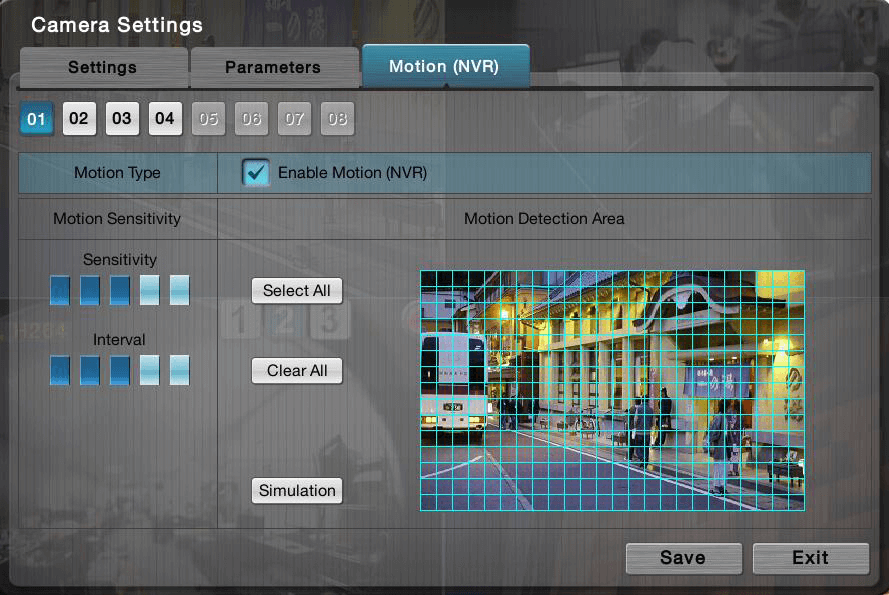

Step2: Check the “Enable Motion(NVR)” box, and video from the camera will appear. Then set up motion detection’s sensitivity, interval, and detection area.

Motion detection on NUUO NVR

2. Recording Triggered by Motion Detection

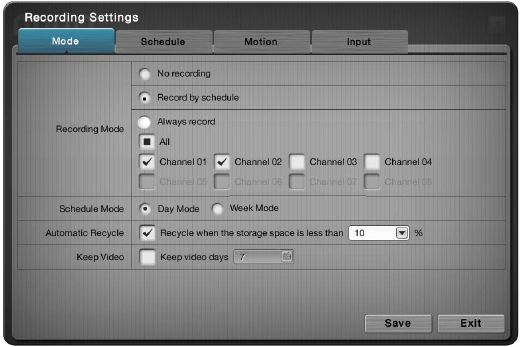

Step1: On the Live View screen, click Menu list button→Main Menu button →Recording & Event button→Recording Settings button→Mode tab. And choose “Recorded by schedule”.

Motion detection on NUUO NVR

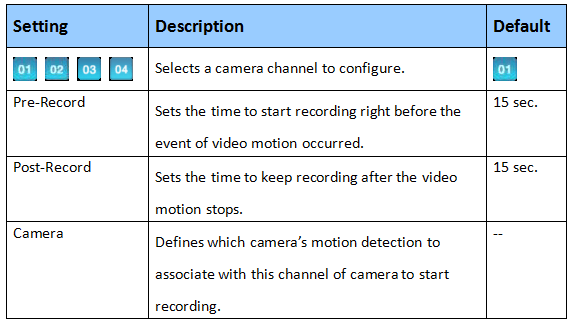

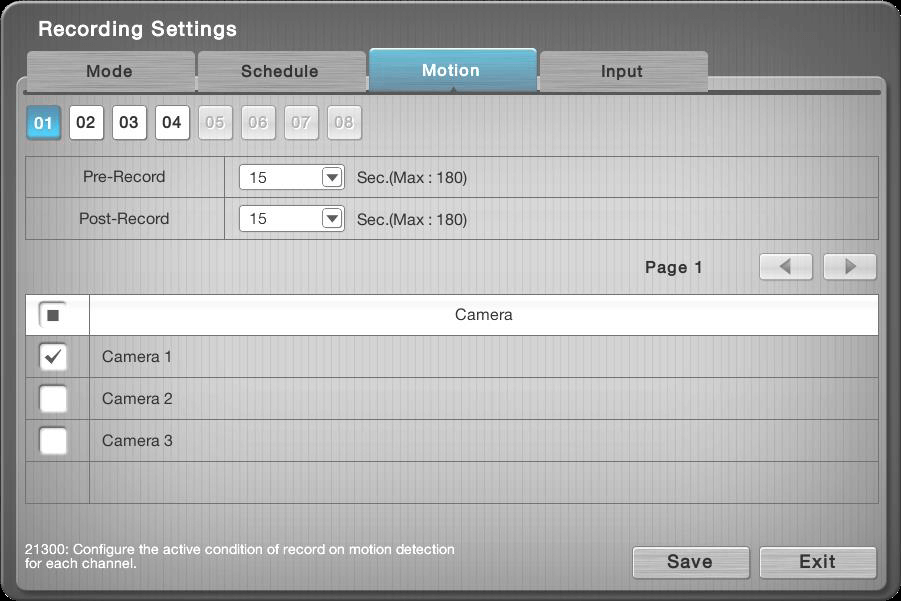

Step2: On the Live View screen, click Menu list button→Main Menu button→Recording & Event button→Recording Settings button→Motion tab. Set the configuration you need.

Motion detection on NUUO NVR
Motion detection on NUUO NVR

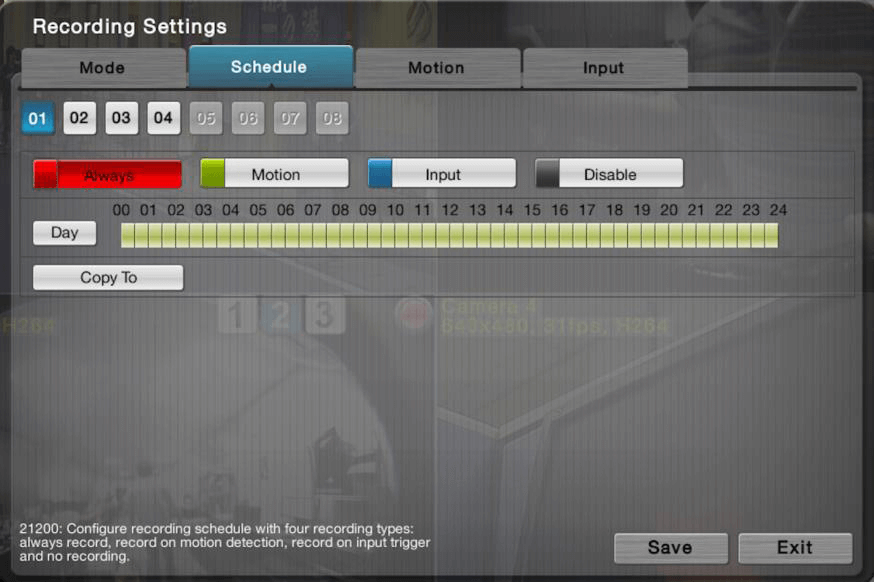

Step3: On the Live View screen, click Menu list button→Main Menu button→Recording & Event button→Recording Settings button > Schedule tab. Click the “Motion button” and mark a time slot to record video upon the detection of video motion.

Motion detection on NUUO NVR
Note:

If it`s been set successfully, you will see a icon in the right-upper corner of the live view division of the camera.

3. Other Actions Triggered by Motion Detection

Besides recording video triggered by motion, there are other actions that can be set as the response to the motion alarm.

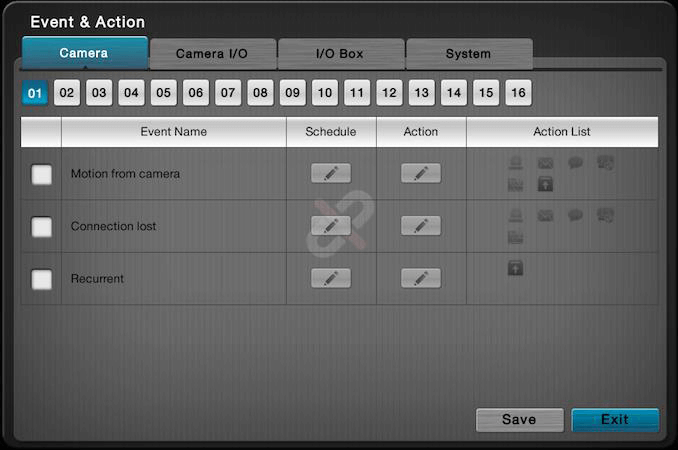

Step1: On the Live View screen, click Menu list button→Main Menu button→Recording & Event button→Event & Action button→Camera tab.

Motion detection on NUUO NVR

Step2: Check the “Motion from camera” box and edit the schedule and actions, which including “Output”, “Email”, “Push Notification” and so on. Then you will see the corresponding actions when motion alarm is triggered.
