Milesight-Troubleshooting-Motion Detection on Hikvision NVR

Milesight-Troubleshooting-Motion Detection on Hikvision NVR.pdf

IP Cameras of Milesight are compatible with Network Video Recorders of Hikvision. By following the sequence of enabling IP Cameras’ motion detection function first, setting detection region and detection schedule next, and choosing alarm actions on the NVR last, you can have a better experience on security surveillance. The following are the detailed steps.

Note:

Please make sure the camera version is **.6.0.44 or above.

If your camera version is lower then version 44, please contact us (support@milesight.com) to get the latest firmware.

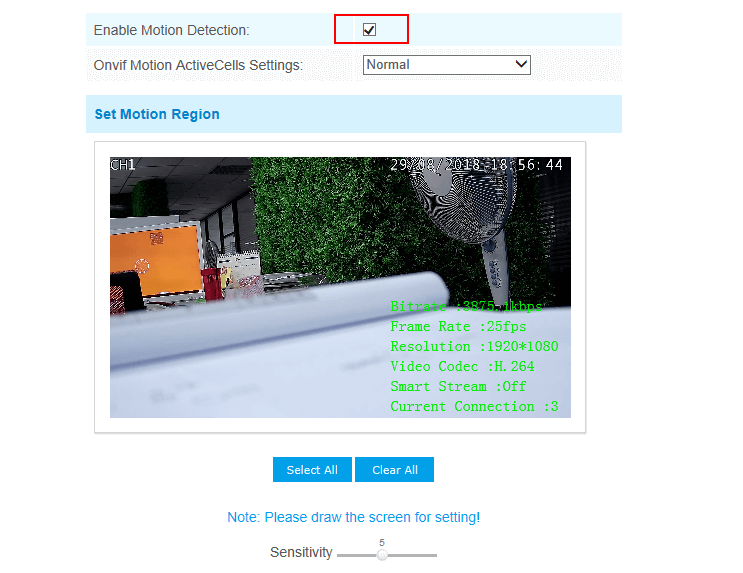

Step1: Log in web, and go to “Advanced Settings”→“Alarm”. Tick “Enable Motion Detection”;

Motion detection on camera

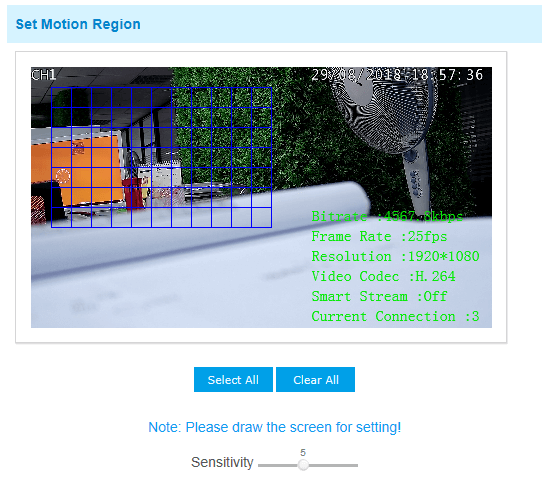

Step2: Set motion region and choose the sensitivity;

Motion detection on camera

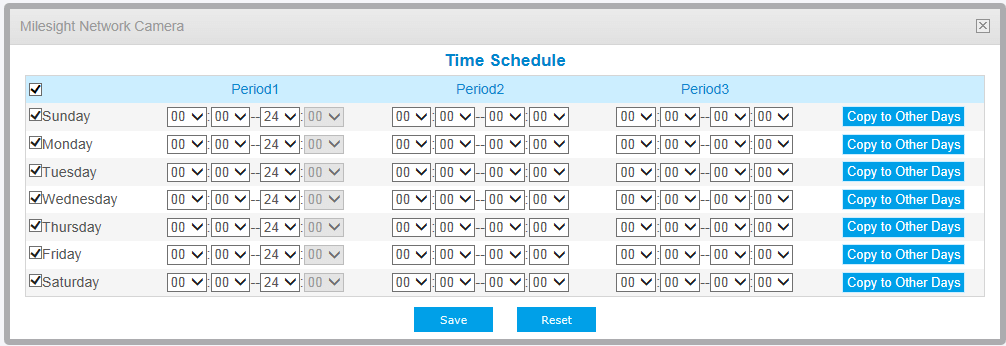

Step3: Set the schedule for motion detection;

Motion detection on camera

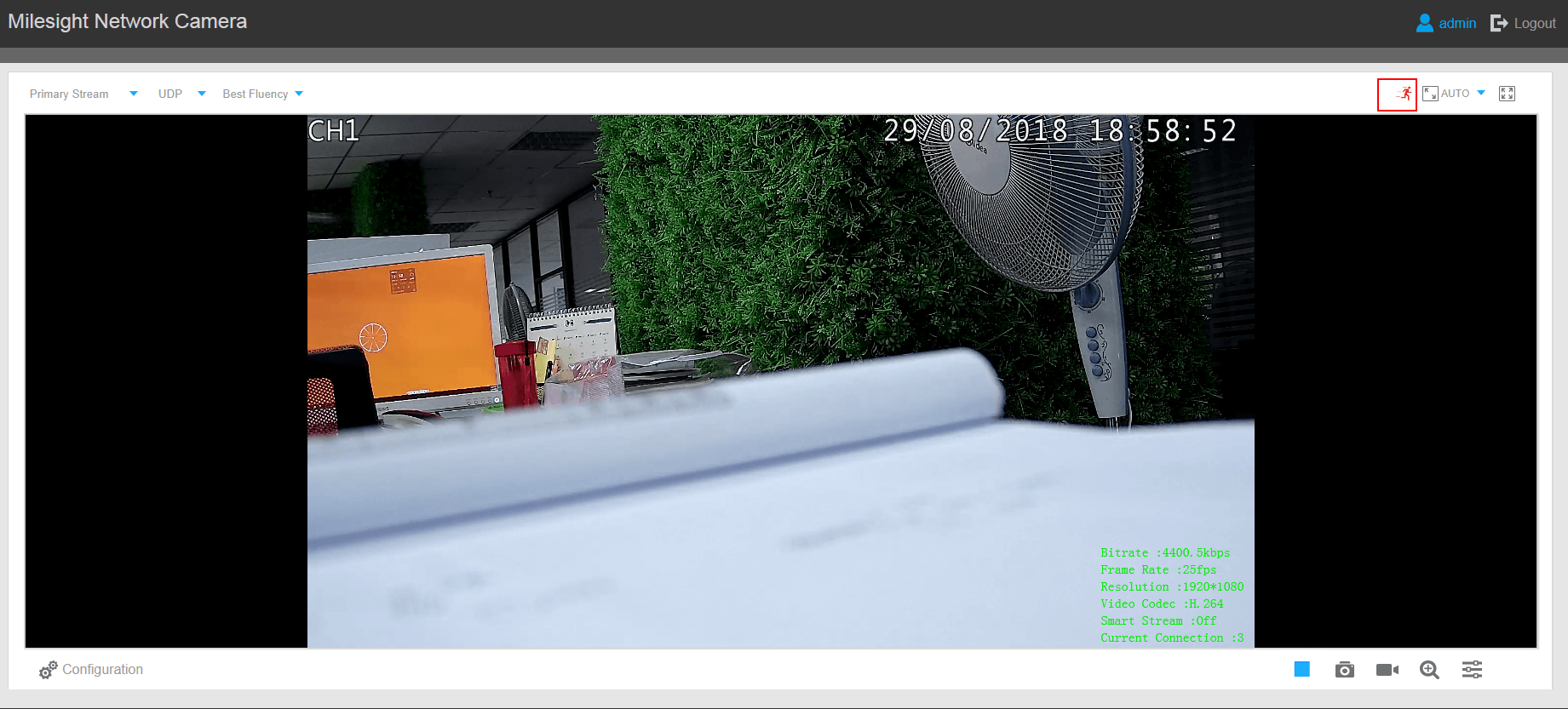

Step4: Check settings of IP cameras. After setting motion detection successfully, you will see a red warning spot on the live video page;

Motion detection on camera

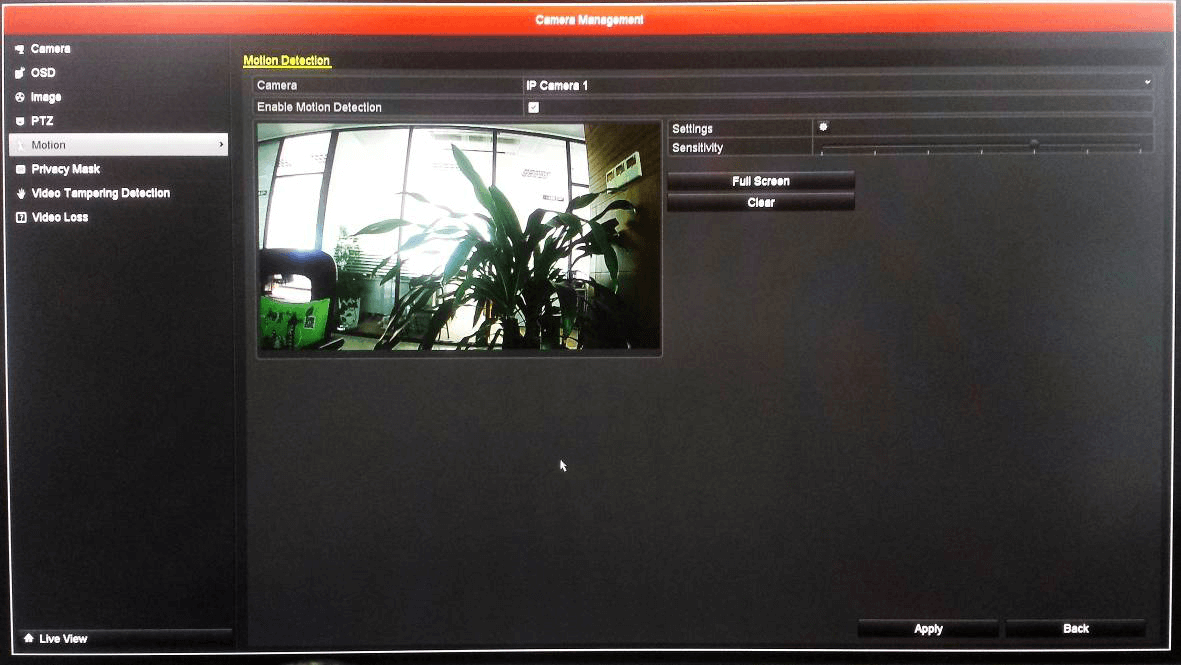

Step5: Log in the NVR, and then go to “Menu”→“Camera Management”→“Motion”. Choose the channel and tick “Enable Motion Detection”;

Motion detection on Hikvision NVR

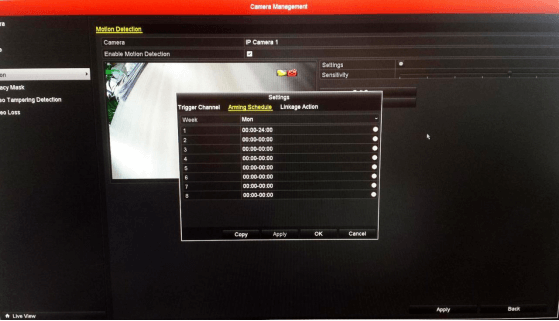

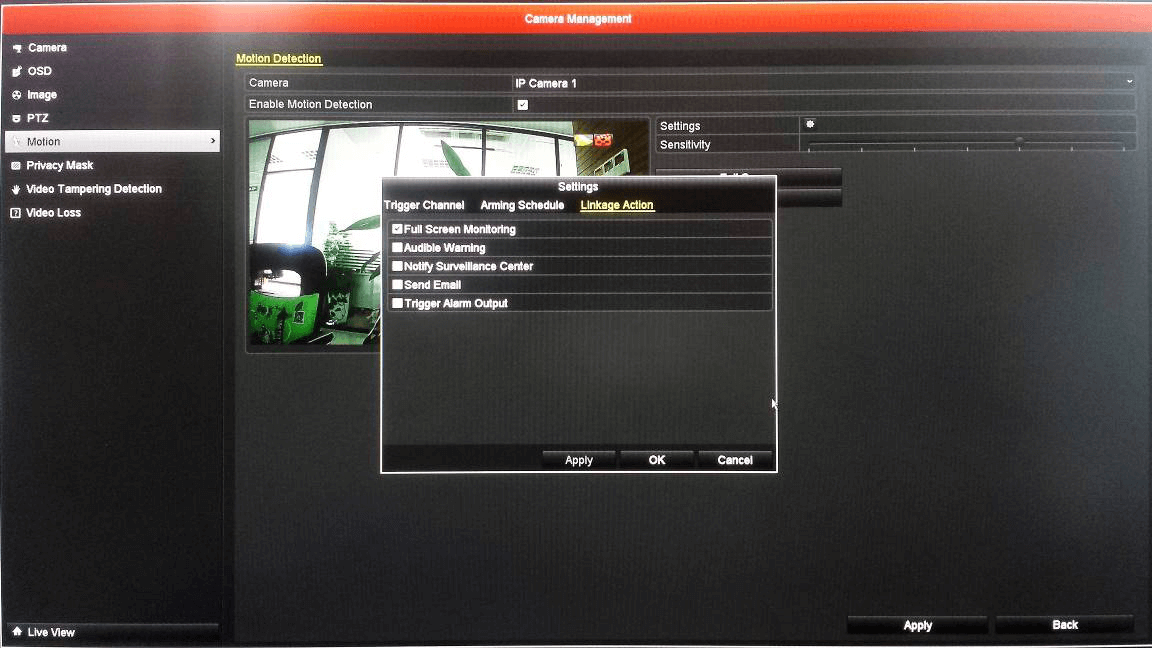

Step6: You do not need to set region and sensitivity on the NVR. Choose the “Alarm Schedule” and “Linkage Actions” you want as pictures shown below;

Motion detection on Hikvision NVR
Motion detection on Hikvision NVR

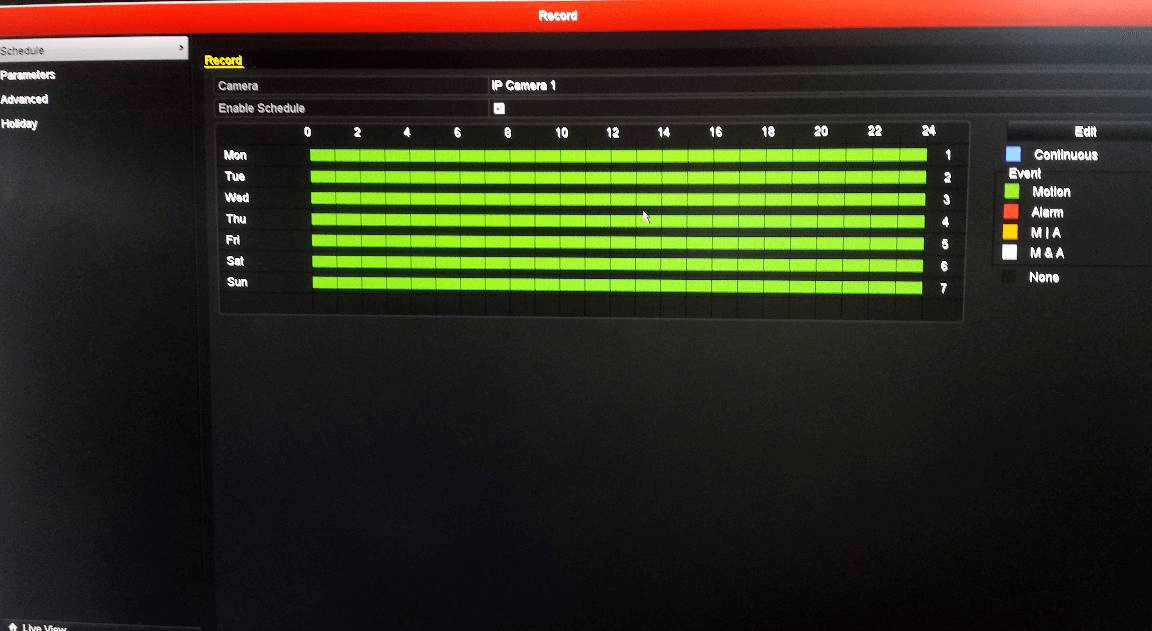

Step7: Go to “Menu”→“Record”, select recording type as “Motion” and draw the timetable according to your need. After that, the device will record automatically if alarm is triggered;

Motion detection on Hikvision NVR

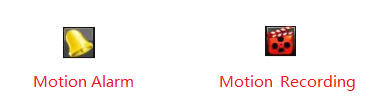

Step8: Check. If the motion detection is set successfully, you will see icon for alarming and icon for motion recording on the live view when the alarm is triggered.

Motion detection on Hikvision NVR
