Milesight-Troubleshooting-Motion Detection
Milesight-Troubleshooting-Motion Detection.pdf1. What is Motion Detection
Motion Detection, commonly used in unmanned surveillance video and automatic alarm. It is the process of detecting a change in the position of an object relative to its surroundings or a change in the surroundings relative to an object. When a moving object is detected, the motion detection can be used by network cameras and video encoders, and by third-party software, too, for example, record video or send a notification.
![Motion Detection off](../../structure/image/support/troubleshooting/Motion/1.png)
![Motion Detection on](../../structure/image/support/troubleshooting/Motion/2.png)
2. How to Set Motion Detection

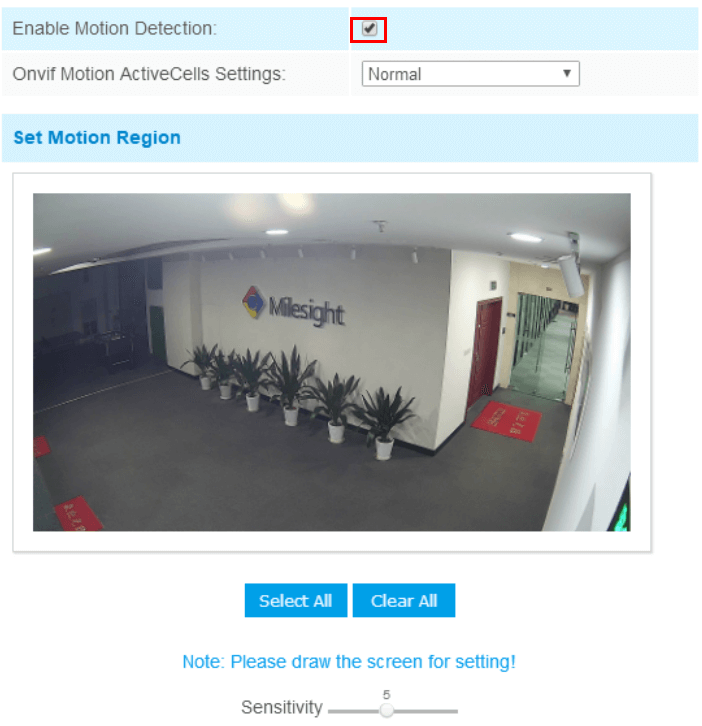

Step1: Log in web, and go to “Advanced Settings”→“Alarm”;
For motion detection,Tick “Enable Motion Detection” and choose “Trigger Type” as “Motion Detection”.
![Set Motion Detection](../../structure/image/support/troubleshooting/Motion/3.png)

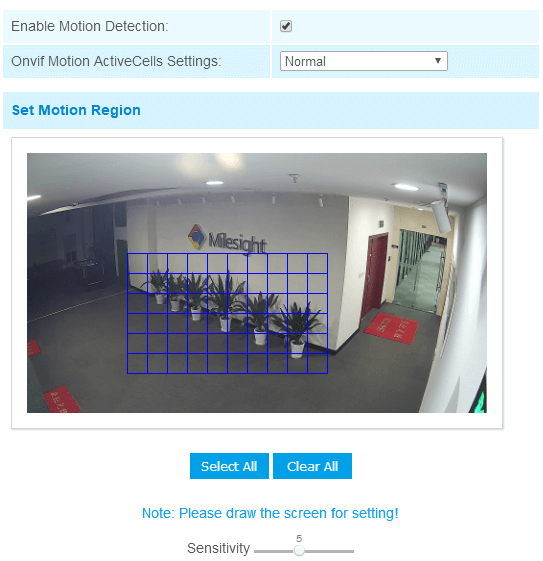

Step2: Set motion region and choose the sensitivity;
![Set Motion Detection](../../structure/image/support/troubleshooting/Motion/4.png)

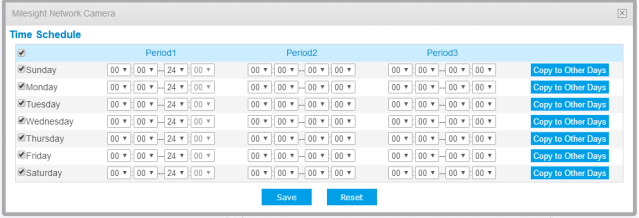

Step3: Set the schedule for motion detection;
![Set Motion Detection](../../structure/image/support/troubleshooting/Motion/5.png)

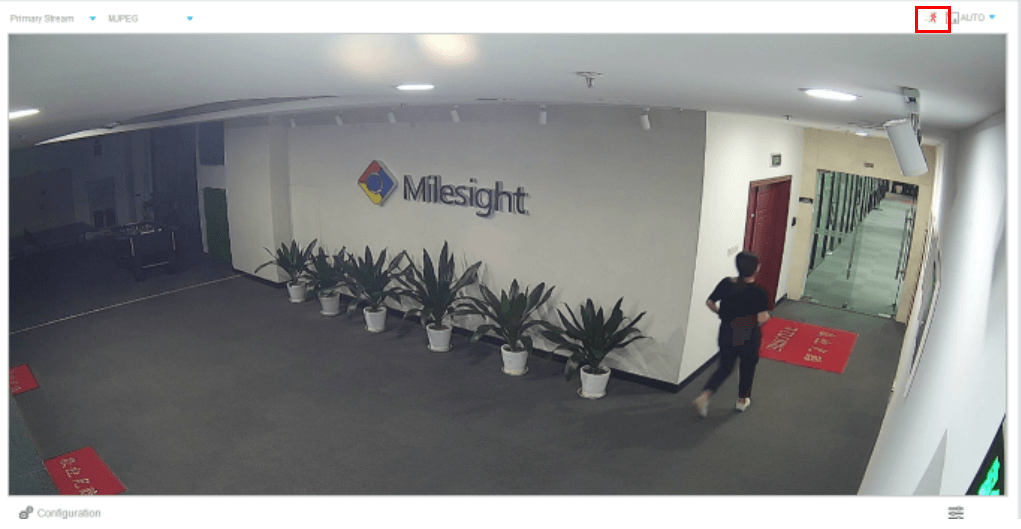

Step4: After setting motion detection successfully, if the motion detection is triggering, you will see the red warning icon showed as Figure 6 on the live video page;
![Set Motion Detection](../../structure/image/support/troubleshooting/Motion/6.png)
