1. LAN Port and PoE Ports

LAN Port and PoE Ports

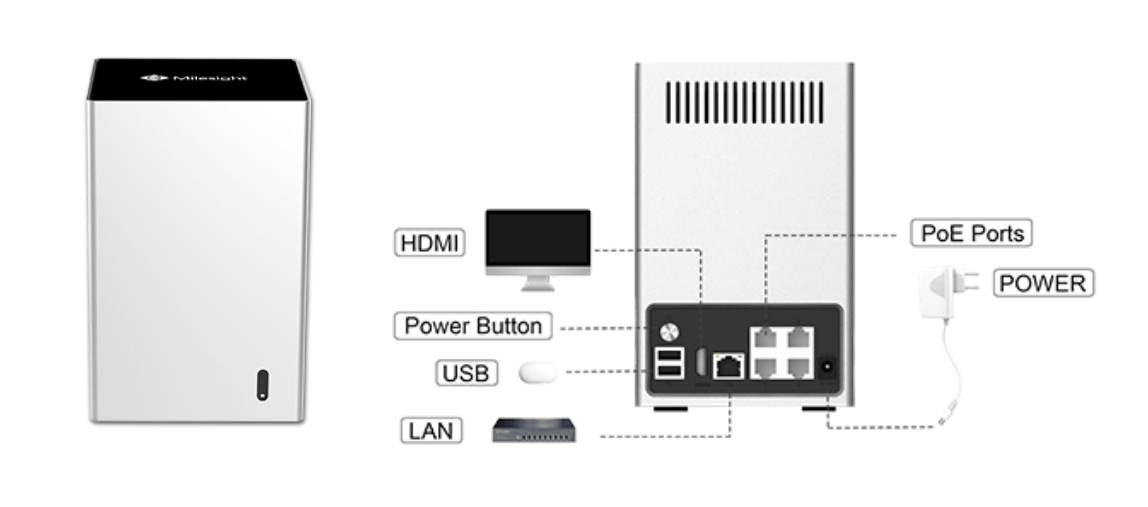

Intuitively, there is one LAN port and four PoE ports in the MS-N1009-UPT.

For the LAN port, the default IP address is 192.168.5.200. You can set the local IP for the NVR via Smart Tools which you can download from the official website of Milesight . And you can log-in the NVR to manage it via web by using the IP address.

For the PoE ports, each port has a fixed number like the above picture showing. They can be directly used to connect to the Milesight cameras.

Note: The PoE interfaces are only working for Milesight cameras.

2. How to use PoE ports

For MS-N1009-UPT, the default IP address and password of the 4 PoE channels are 192.168.20.xx and ms1234.

When you put the IP camera into the PoE port,

1) It can plug and play as long as its password is ms1234.

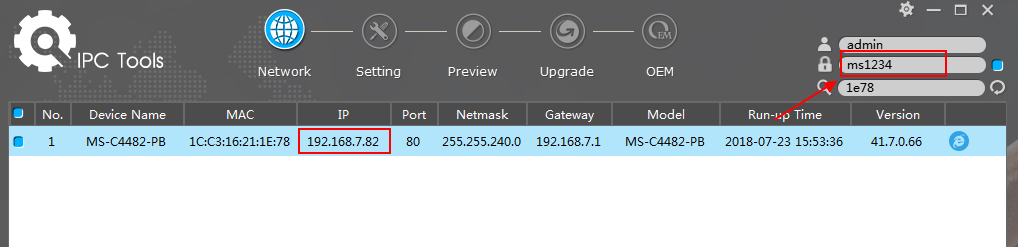

For example: IPC1: 192.168.7.82 Password: ms1234

Password is ms1234

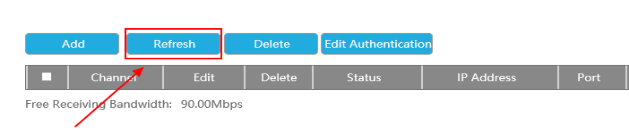

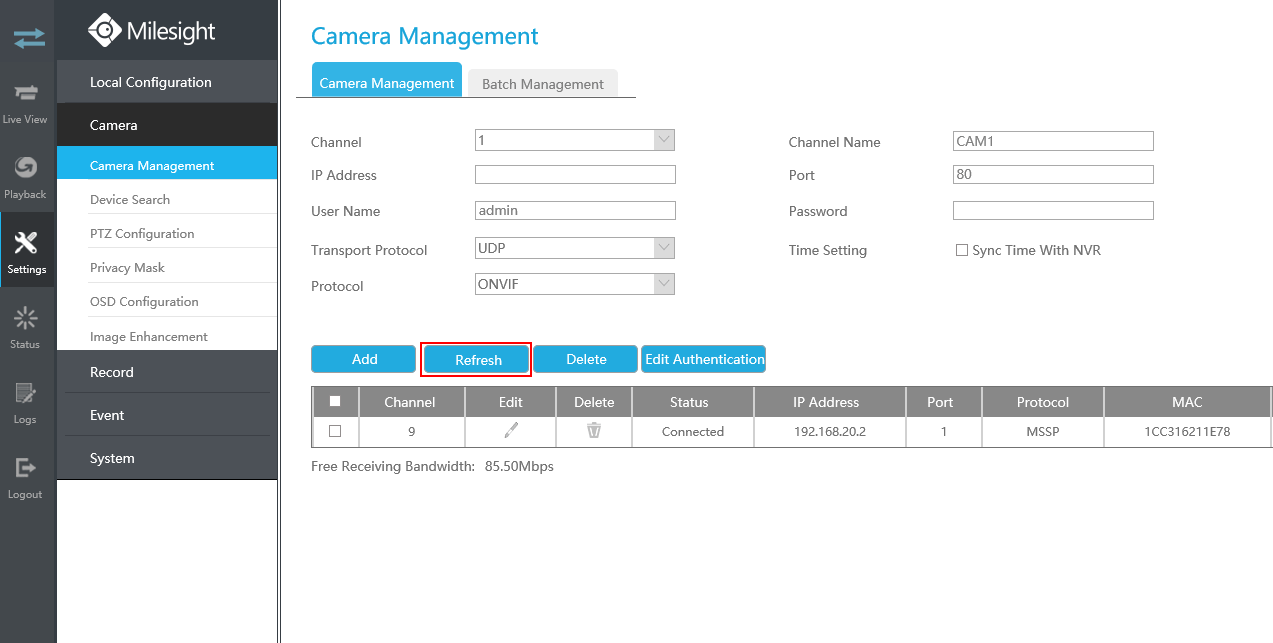

Plug in and refresh.

Plug camera

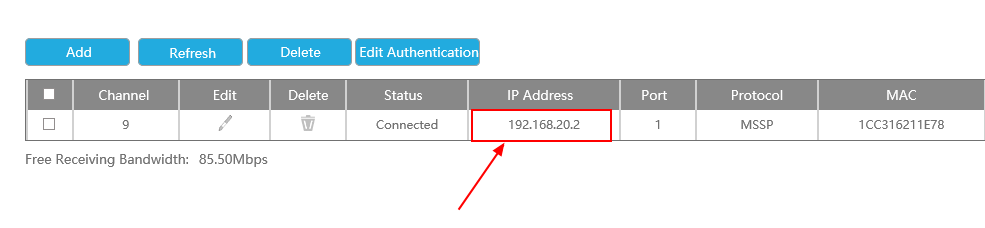

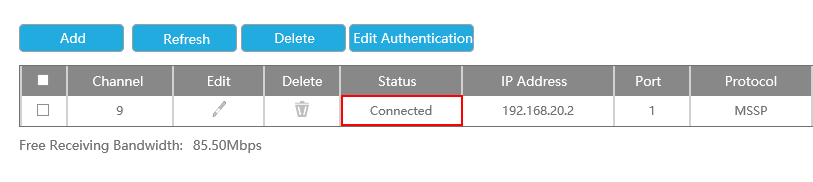

You will find that the IP address has been changed into 192.168.20.xx. And it shows “Connected”.

Camera Connected

2) When the password of the IP camera is not ms1234, we can make it connected through editing the exact password of the IP camera.

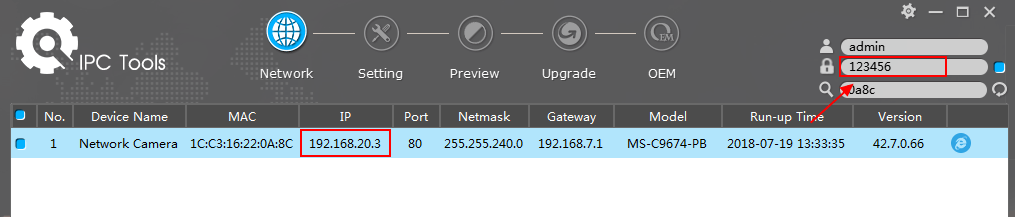

For example: IPC2:192.168.20.3 Password: 123456

Password is 123456

Plug in and refresh.

Plug camera

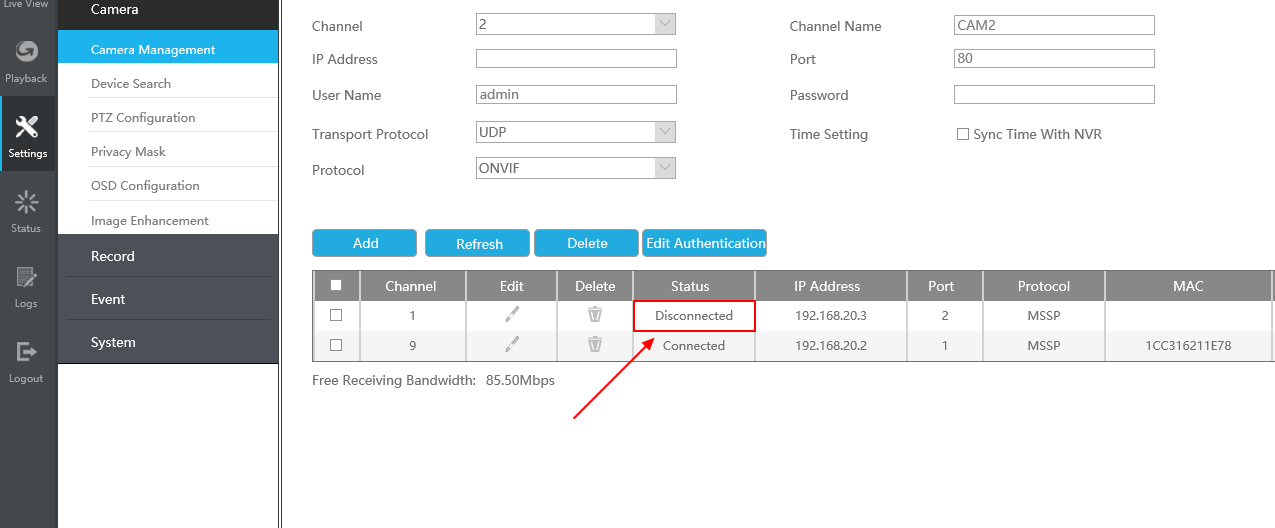

The password of the IP camera is not the same as the channel, so it will show the state ”Disconnected”.

Password is different
There are two ways to edit password to make the IP camera connected:

One way:

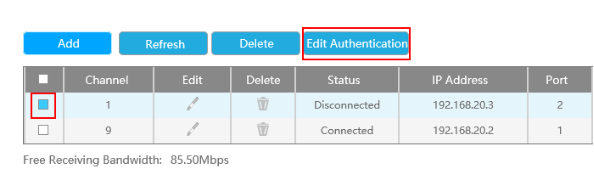

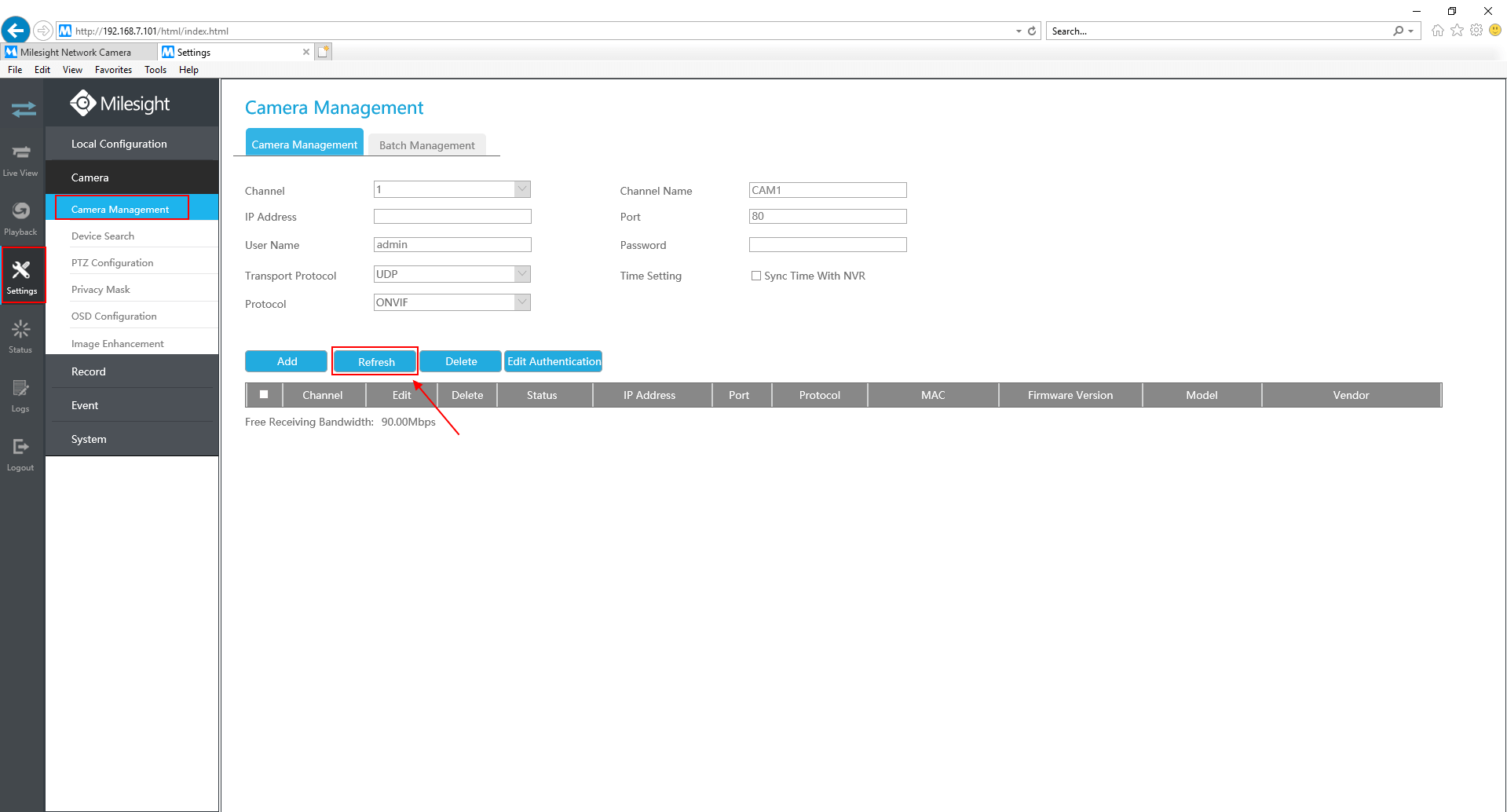

Check the “Disconnected” IP camera, then click on “Edit Authentication”.

Edit Authentication

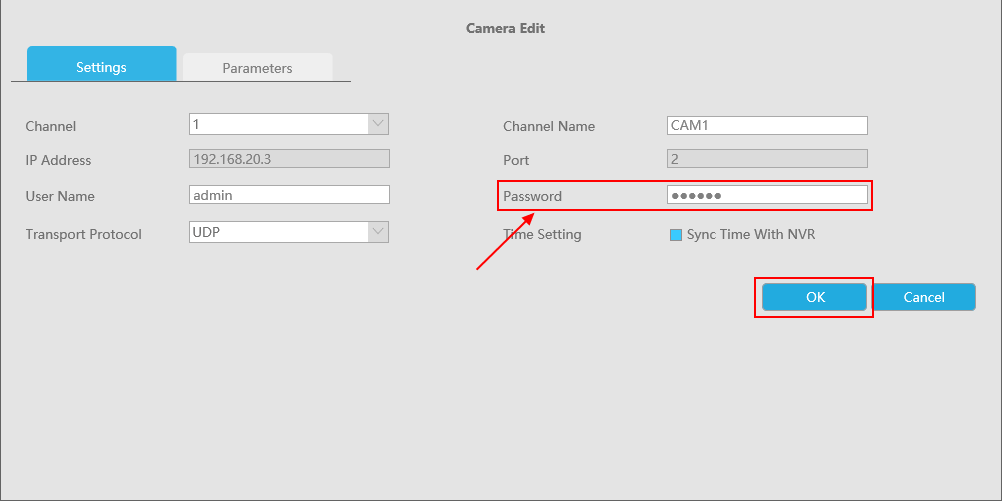

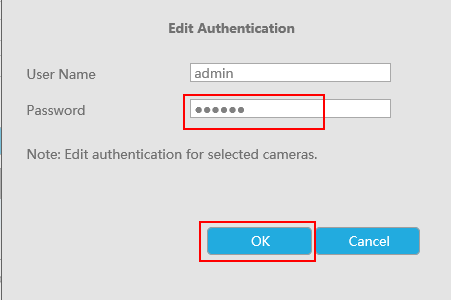

After clicking on the button, it will pop up a window as follows. Then input the exact password “123456” and click on “OK”.

Edit Authentication

The other way:

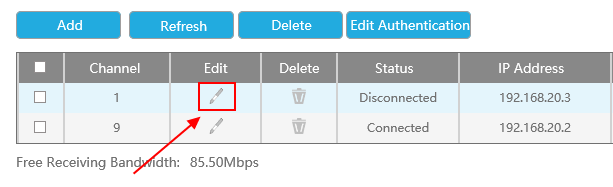

Click on the button “Edit”.

Edit Authentication

After clicking on the button, it will pop up a window as follows. Then input the exact password “123456” and click on “OK”.

Edit Authentication

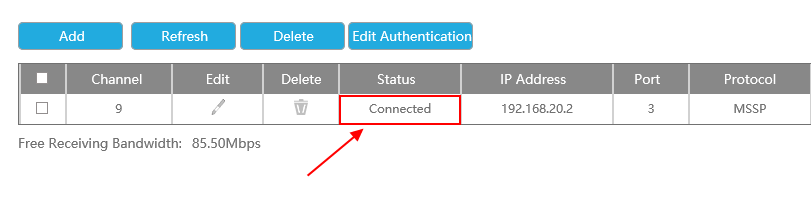

After saving the password, refresh the state, it will show “Connected”.

Edit Authentication
Edit Authentication

3) If the IP camera has ever connected into the random PoE port , even if its IP address changed after pulling out , as long as the password is not changed, you can plug in random PoE port without verifying password anymore.

On the contrary, you need to verify the password if you changed the password of the IP camera.

For example: IPC3 :192.168.20.2 password: 123456

Previously it connected in Port1.

Verify the password

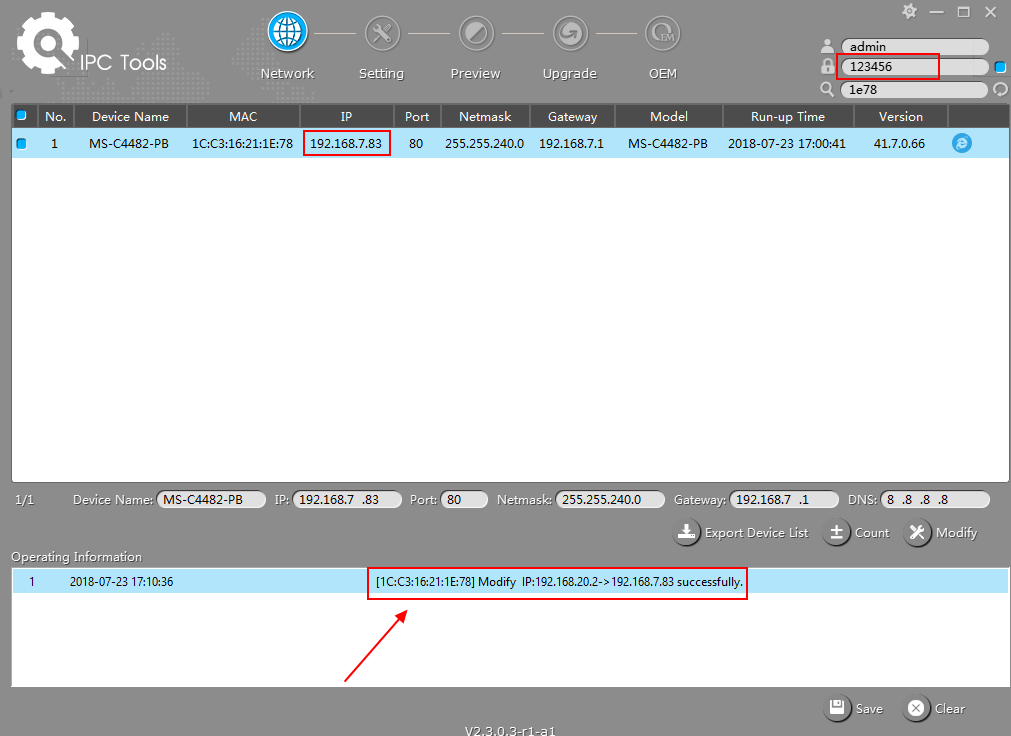

Pull out the IPC3 and edit the IP address into 192.168.7.83, but don’t change the password.

Verify the password

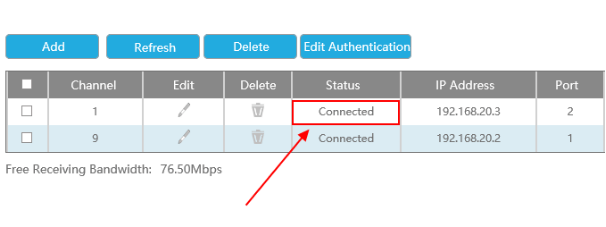

Now put it into Port3. Just refresh, then you will find that it has been connected in Port3 without verifying password and the IP address has been changed into 192.168.20.xx.

Verify the password
Verify the password
Note:

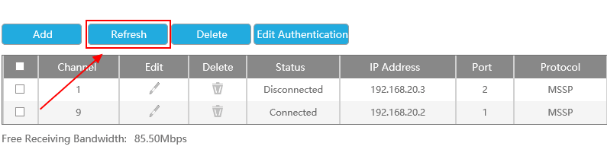

If you have done the right steps, but you find that the state is “Disconnected”. Please keep clicking on the “Refresh” till “Connected” comes out.

3. How to configure IP camera connected via PoE

For the network cameras connected with PoE NVR via PoE ports, you can not view or configure them on web directly because the IP network segments of IP camera and your PC are different. There are two ways to solve this issue.

One way:

1) Connect PC to one of the PoE ports of PoE NVR using a network cable;

Configure camera on web via PoE port

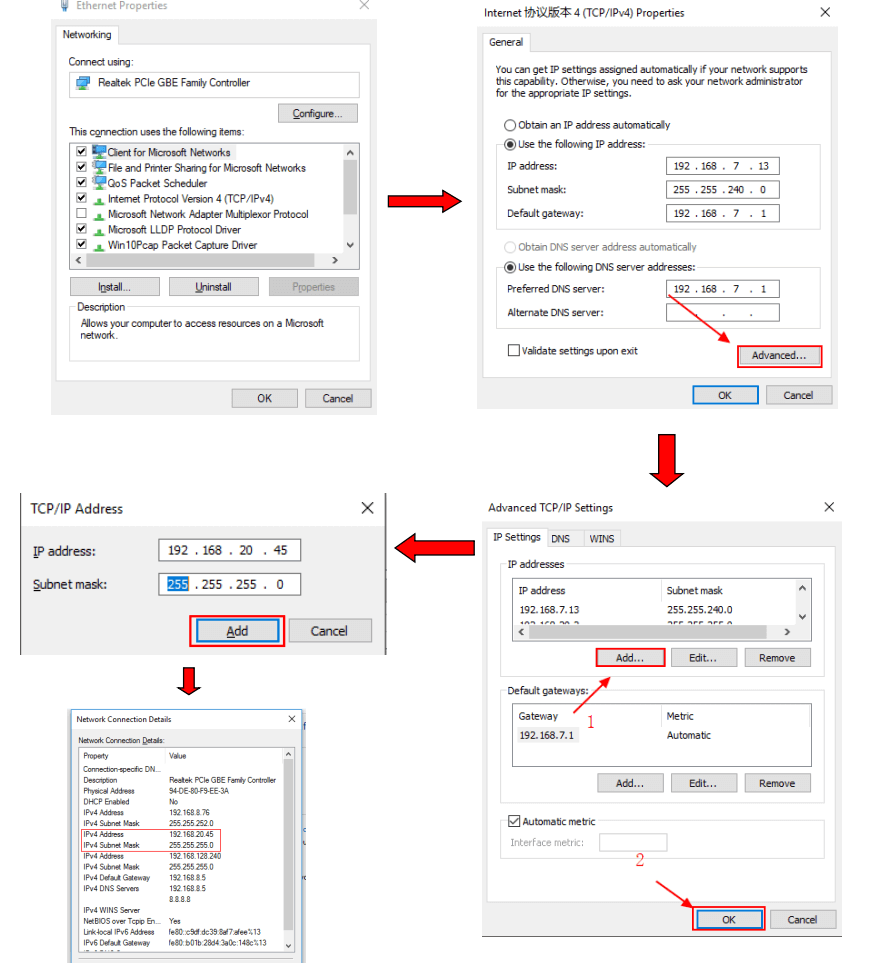

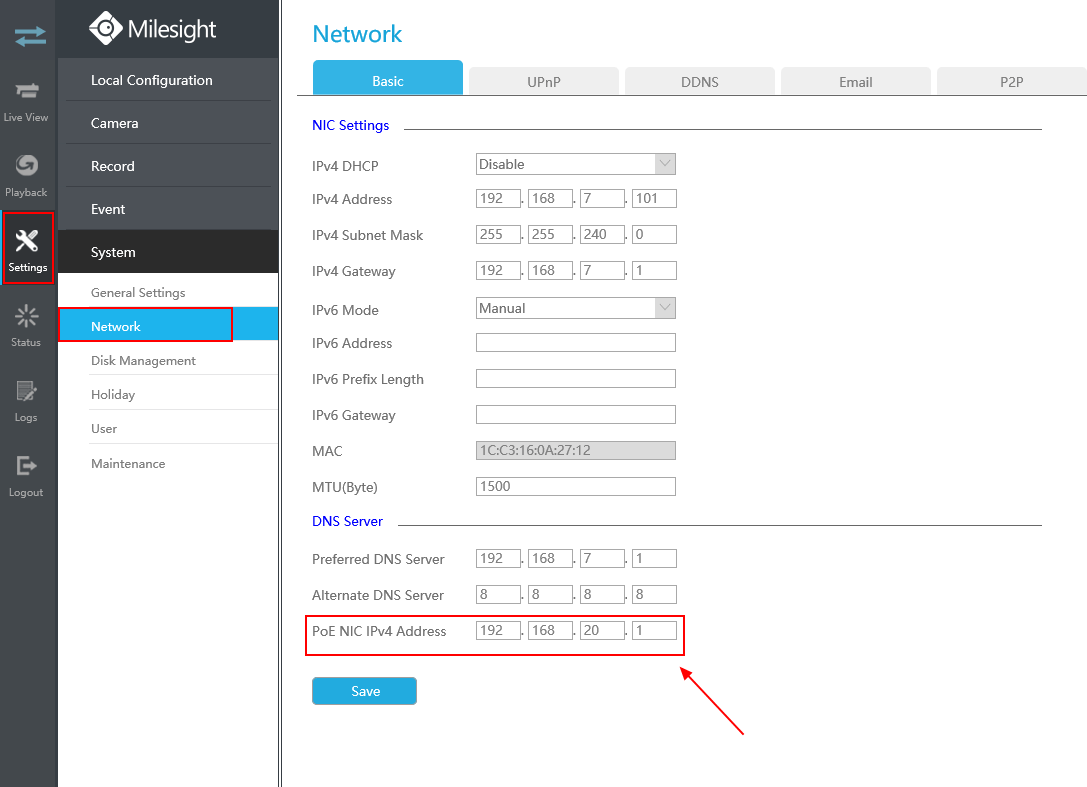

2) Add an IP address to your PC which is in the same network segment with the PoE port settings;

Configure camera on web via PoE port

3) Then you can view and configure both PoE NVR and IP camera directly on web using corresponding IP address.

Configure camera on web via PoE port
Configure camera on web via PoE port

The other way:

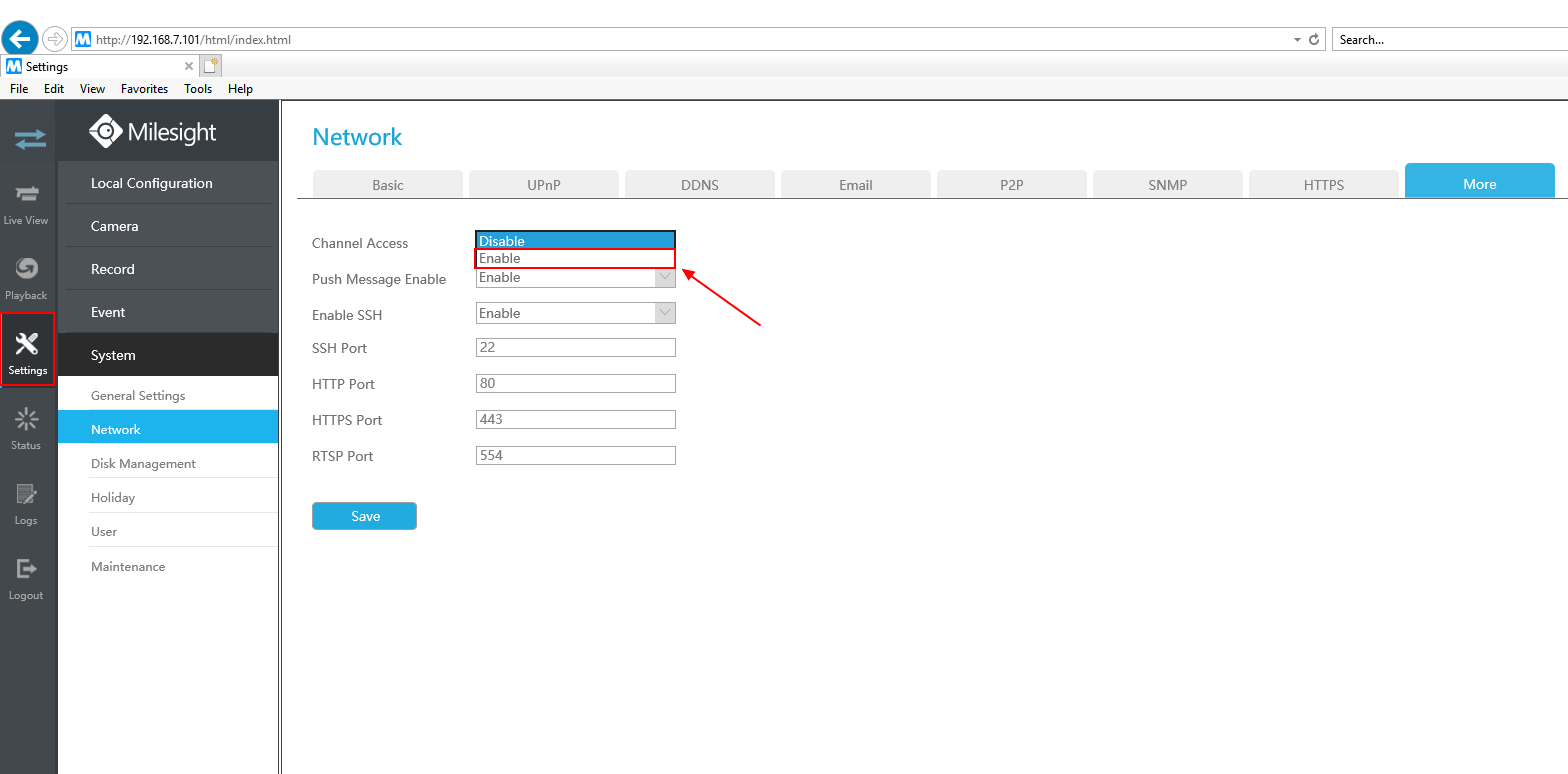

1) Enable the “ Channel Access” in Setting and saving.

Note: This setting is disabled by default.
Configure camera on web via PoE port

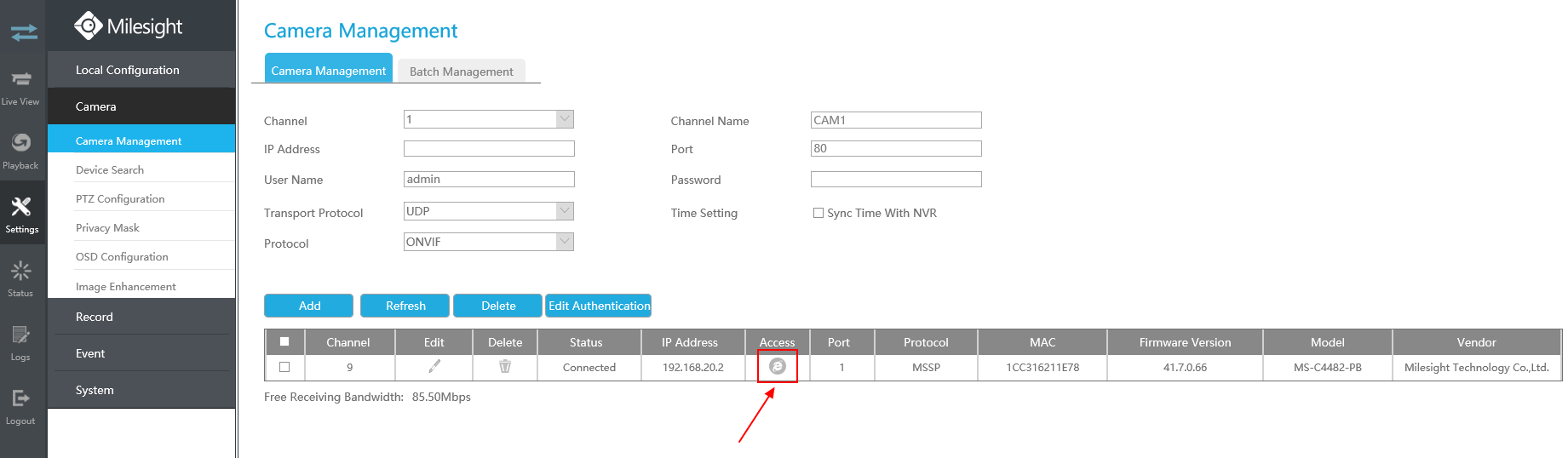

2) Click on the "IE" button.

Configure camera on web via PoE port

3) After clicking on the button, it will pop up a window as follows.

Configure camera on web via PoE port

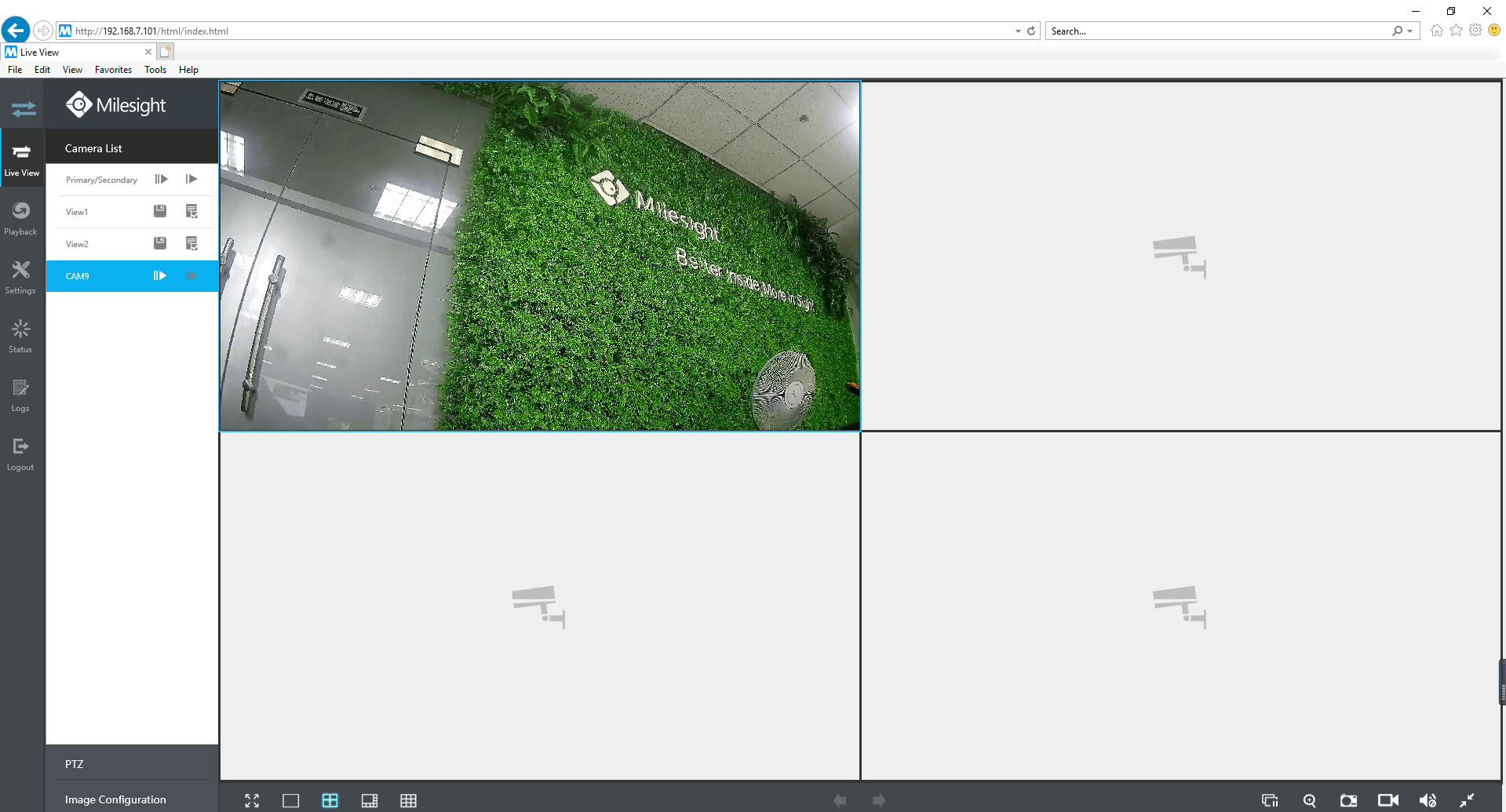

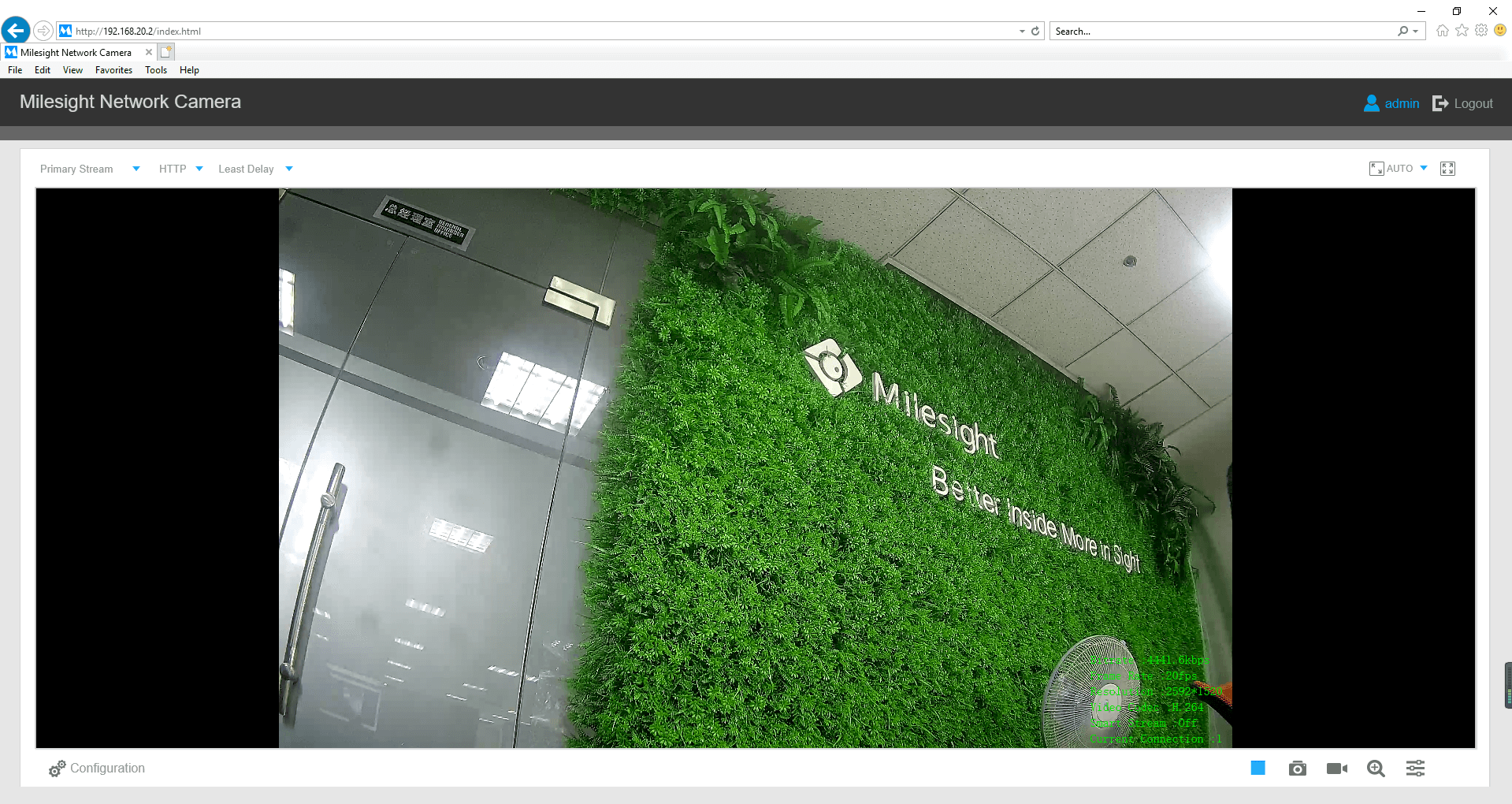

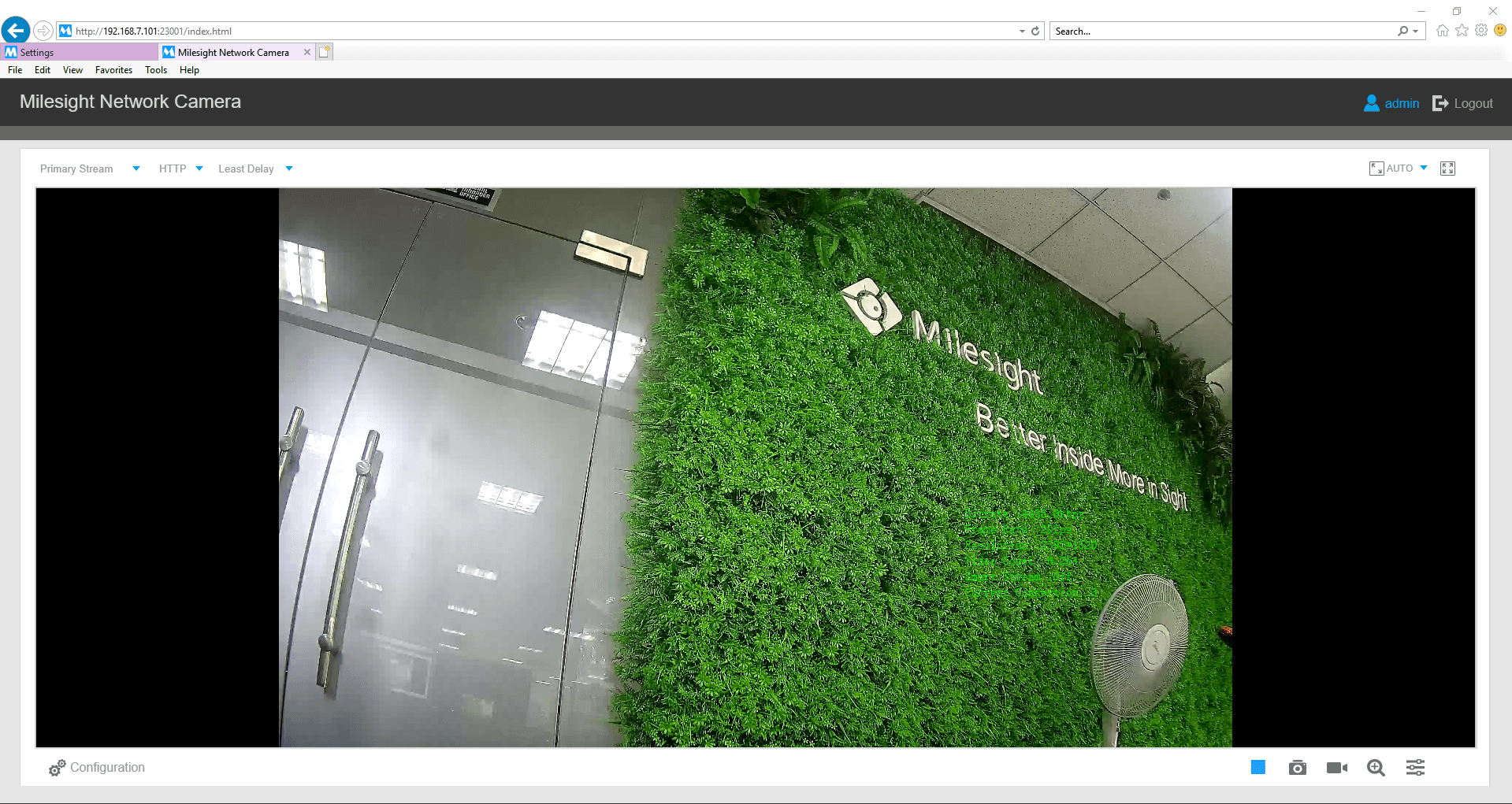

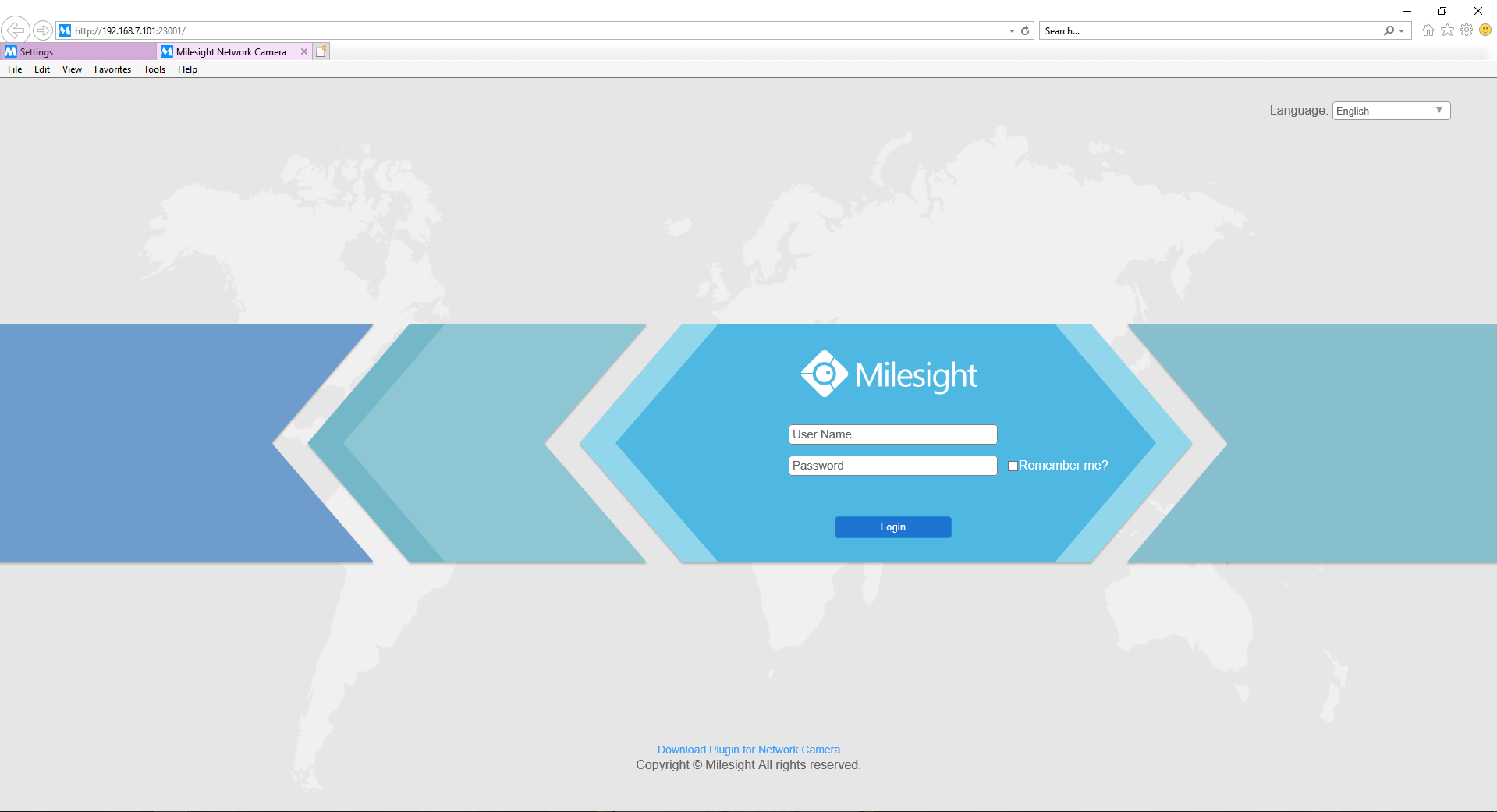

4) Input the user name and password,Then you can view and configure IP camera directly on web.

Configure camera on web via PoE port
