Milesight-Troubleshooting-Hard Disk Installation
Milesight-Troubleshooting-Hard Disk Installation.pdf1. MS-N7000 series Hard Disk Installation

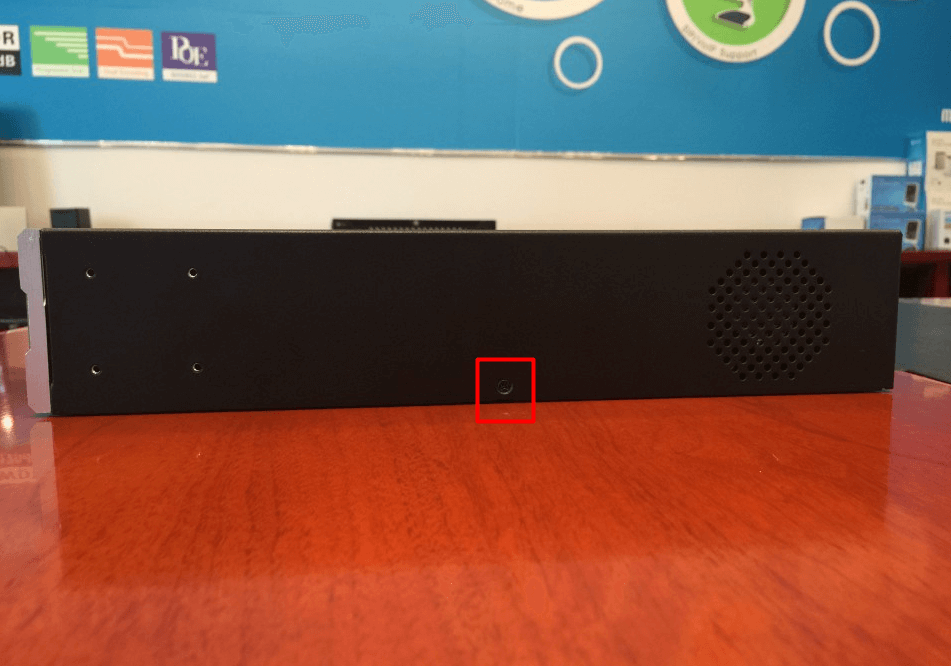

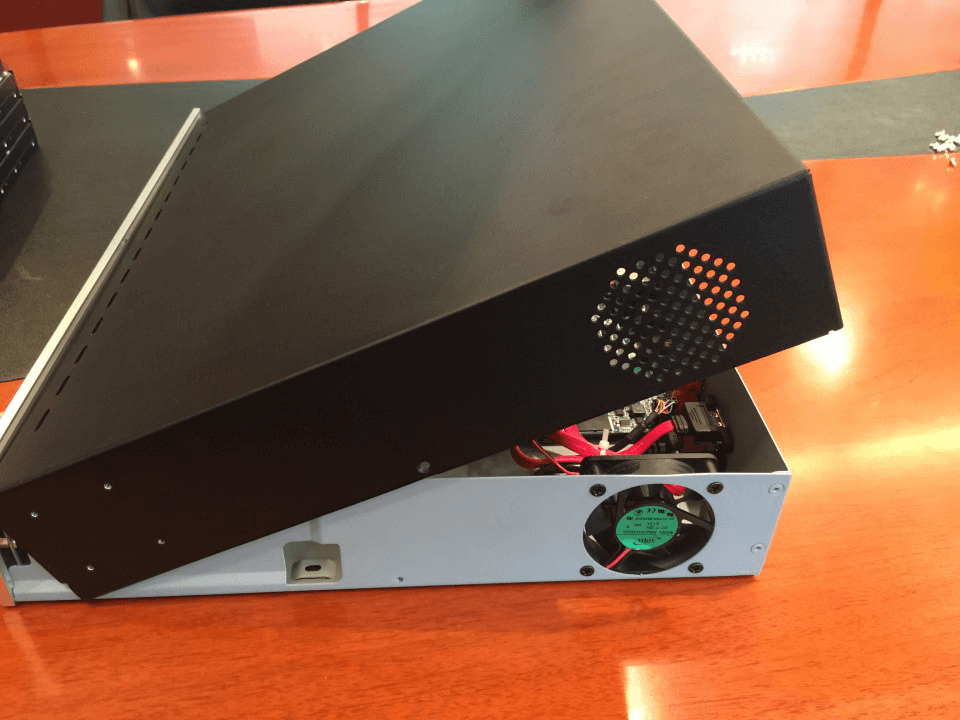

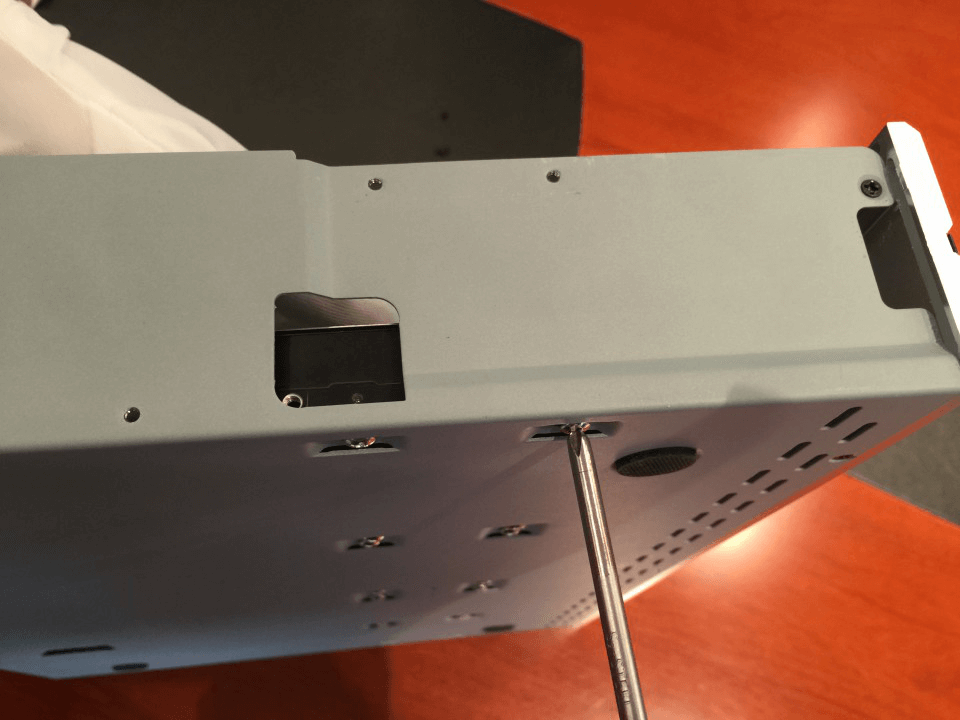

Step1: Unscrew the back and both sides’ screws to open the upper lid.
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/1.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/2.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/3.png)

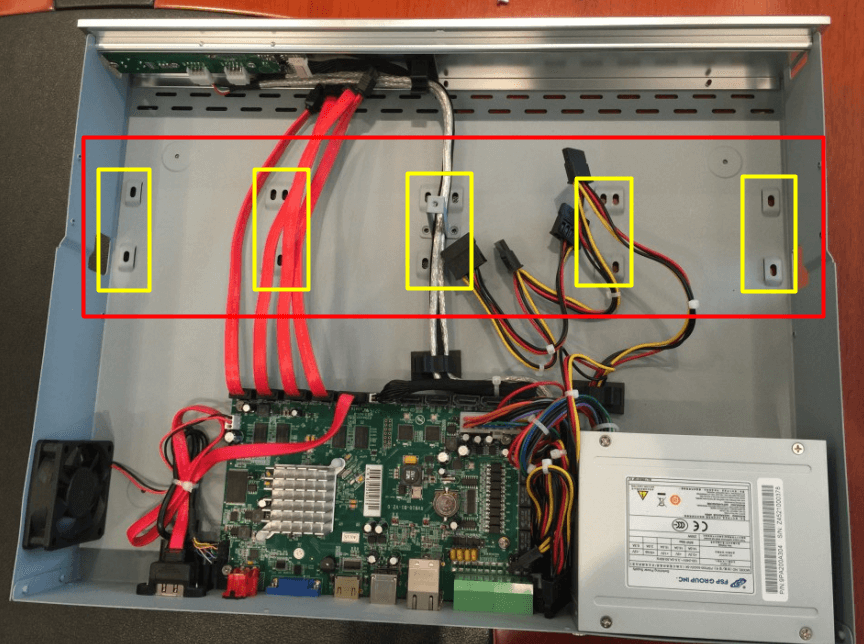

Step2: Install the hard disks into NVR with screws showed in below pictures.(SATA Slots of hard disk should be toward inside NVR.)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/4.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/5.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/6.png)

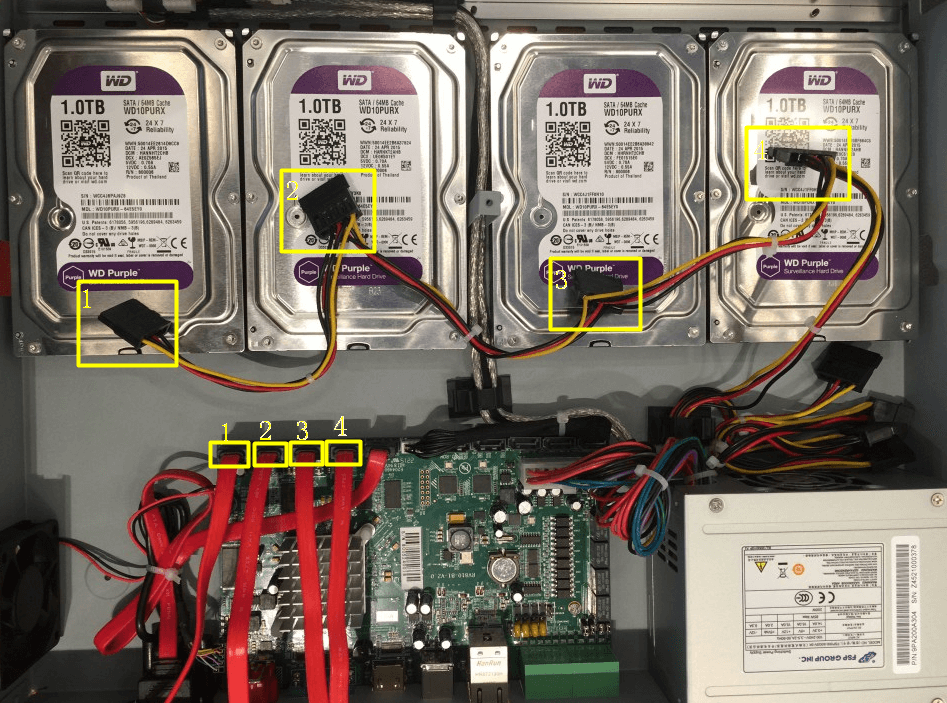

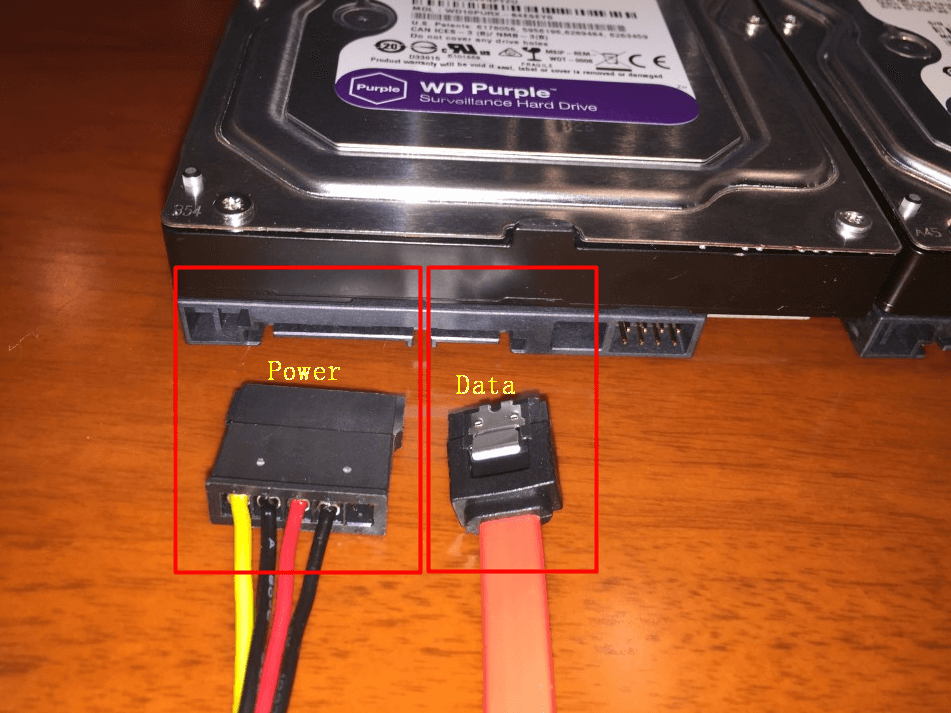

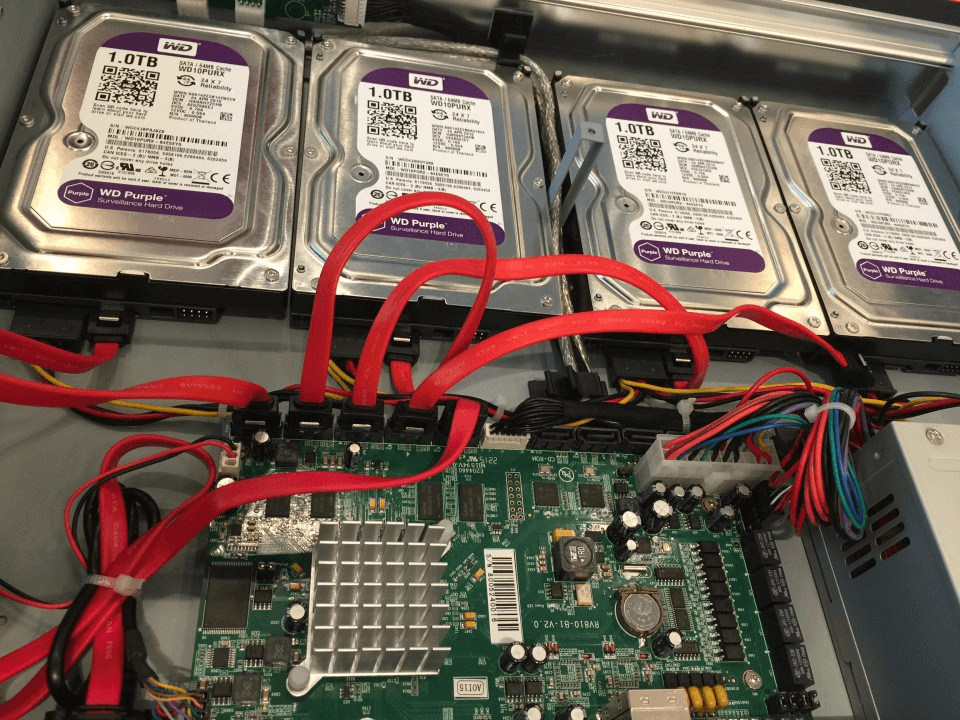

Step3: Join the power and data connectors to corresponding hard disk.
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/7.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/8.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/9.png)
The data connector sequence of MS-N7000 series is different from MS-N8000 series.
2. MS-N8000 series Hard Disk Installation

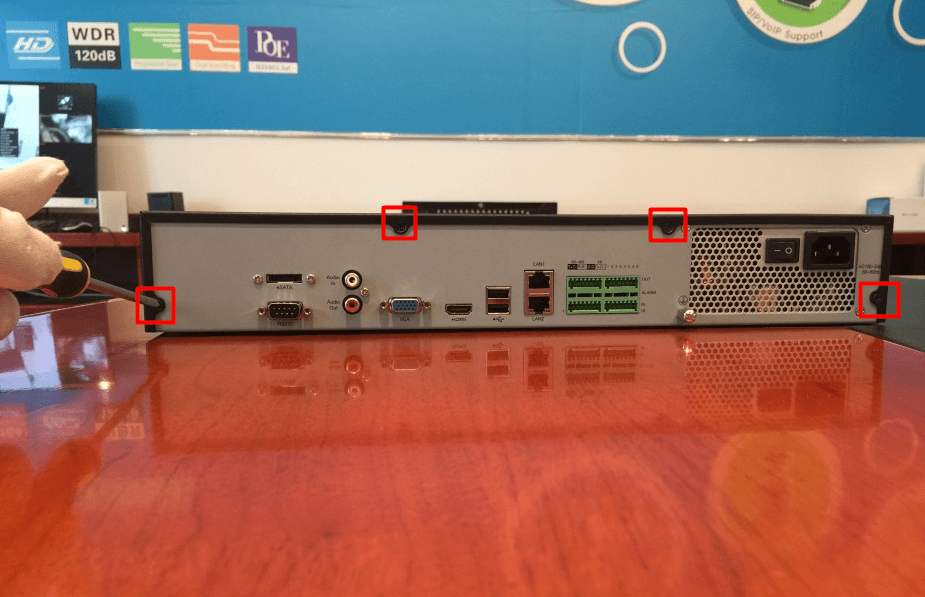

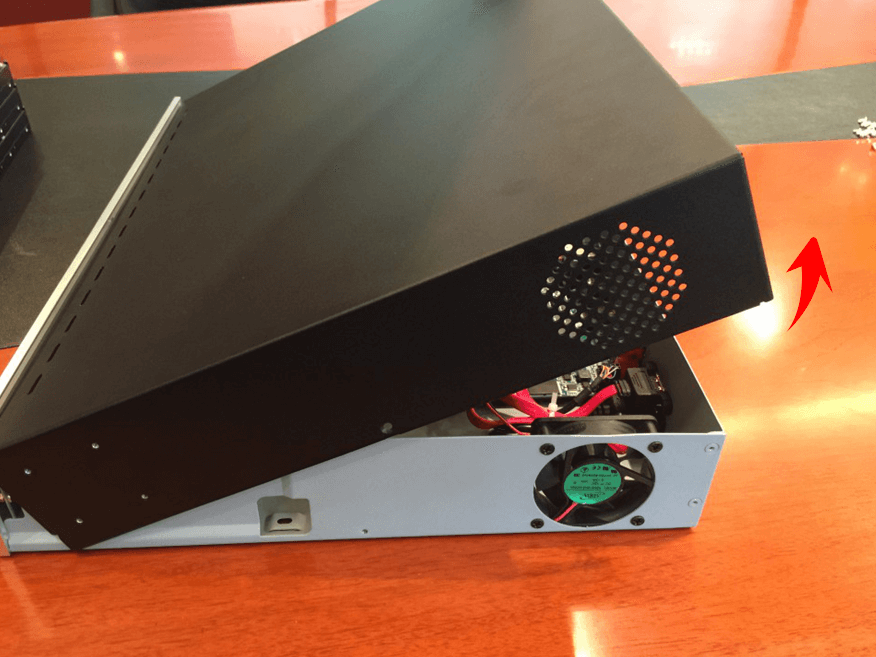

Step1: Unscrew the back and both sides’ screws to open the upper lid.
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/10.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/11.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/12.png)

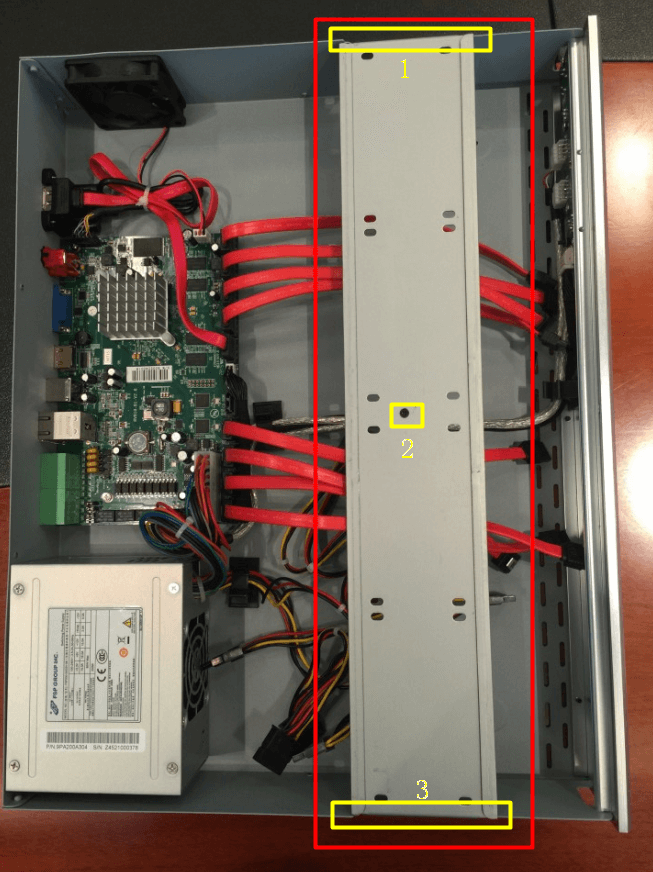

Step2: Uninstall the upper hard disk panel.
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/13.png)

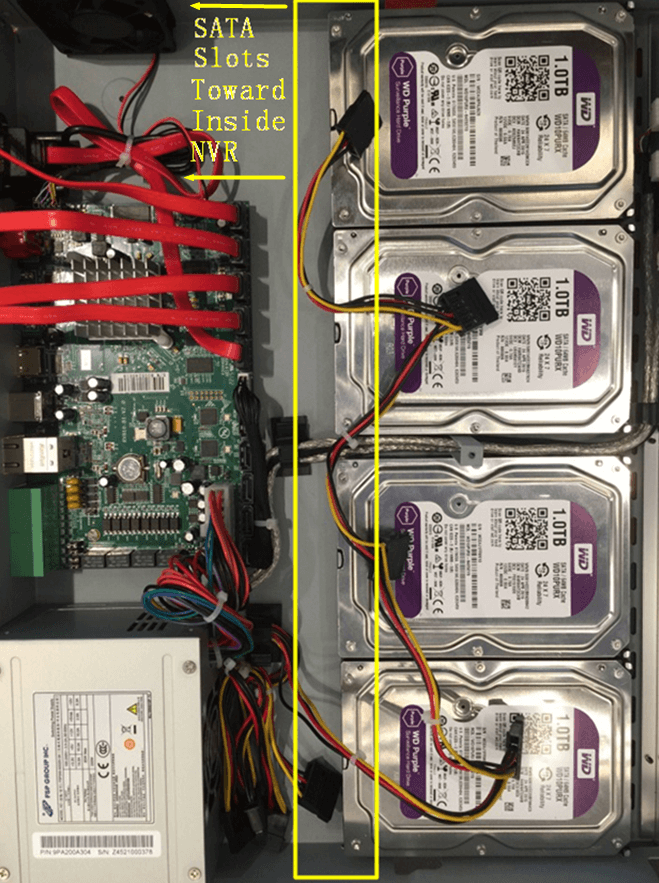

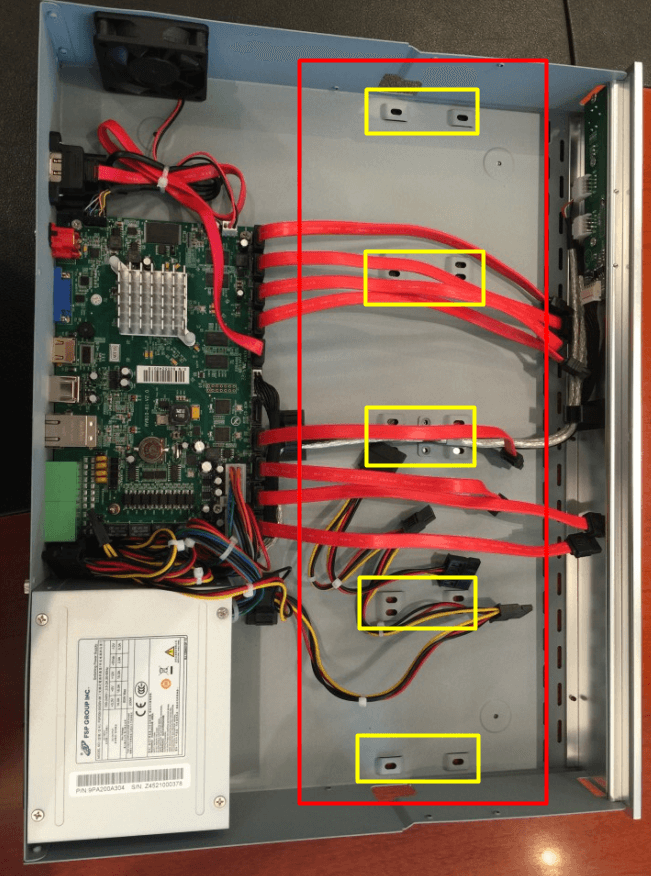

Step3: Install the hard disks into NVR with screws showed in below pictures.(SATA slots of hard disks should be toward inside NVR)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/14.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/15.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/16.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/17.png)

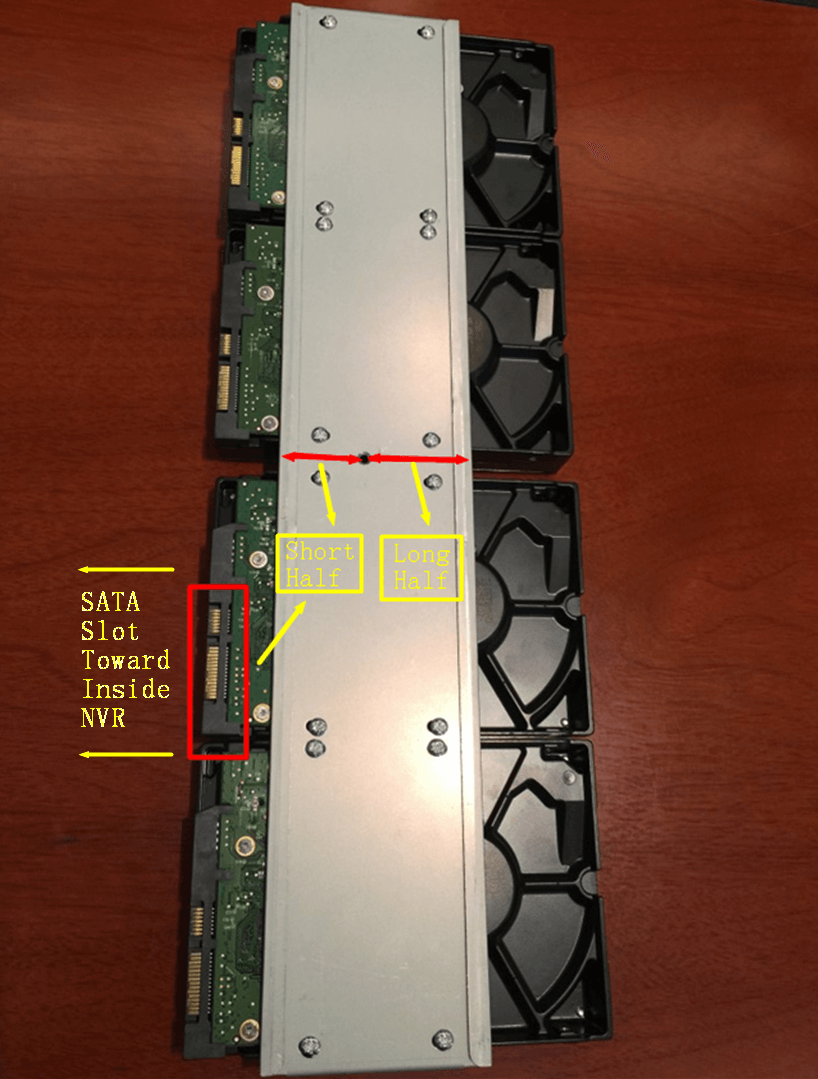

Make sure that the sata slots are in SHORT HALF side and the sata slot toward inside NVR.

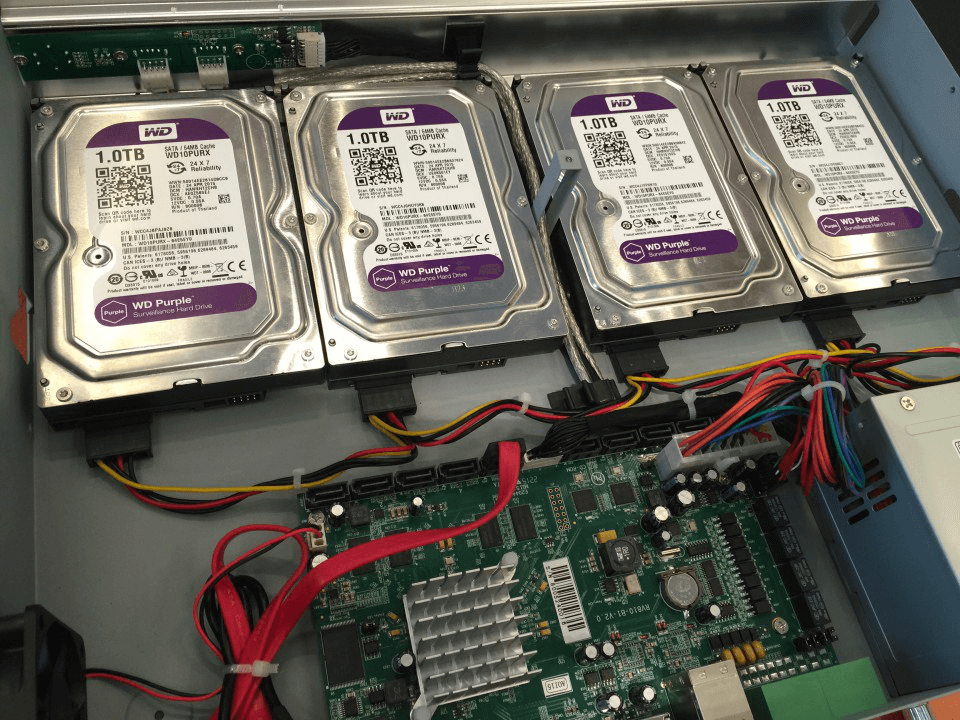

Step4: Join the power connectors to corresponding hard disks.(Install lower hard disk panel before upper one)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/18.png)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/19.png)

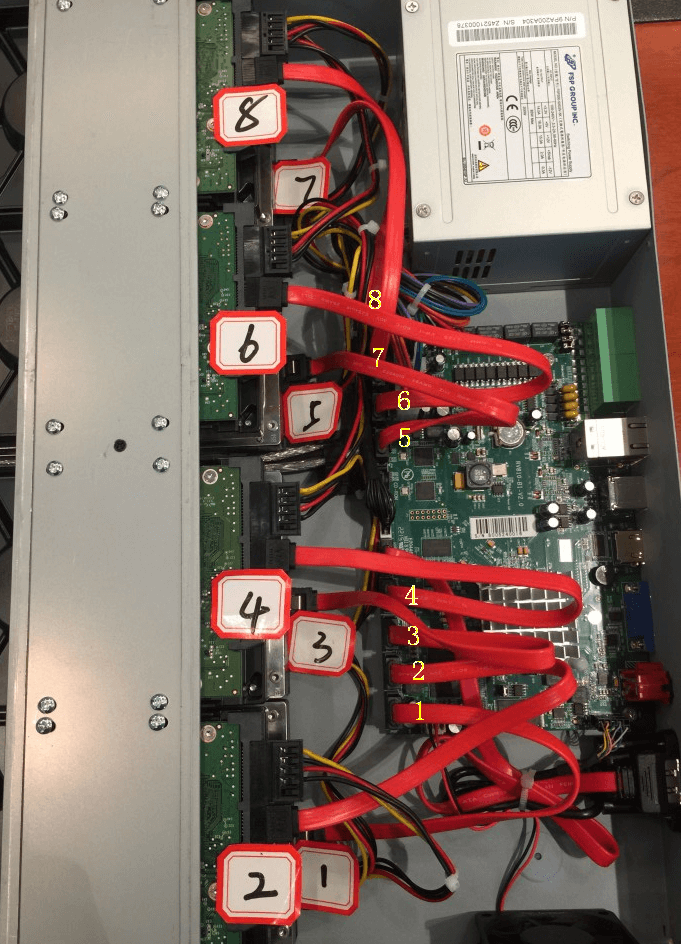

Step5: Join the data connectors to corresponding hard disk.(Check the connection by below sequence)
![Hard Disk Installation](../../structure/image/support/troubleshooting/HDD-installation/20.png)
The data connector sequence of MS-N7000 series is different from MS-N8000 series.
