Milesight-Troubleshooting-Audio Function on NVR

Milesight-Troubleshooting-Audio Function on NVR.pdf

Note:

Before setting, please make sure that the camera you access supports audio function, remember to connect the active speaker on your computer or monitor.

In order to open audio on the NVR, you should set up the audio on the network cameras first.

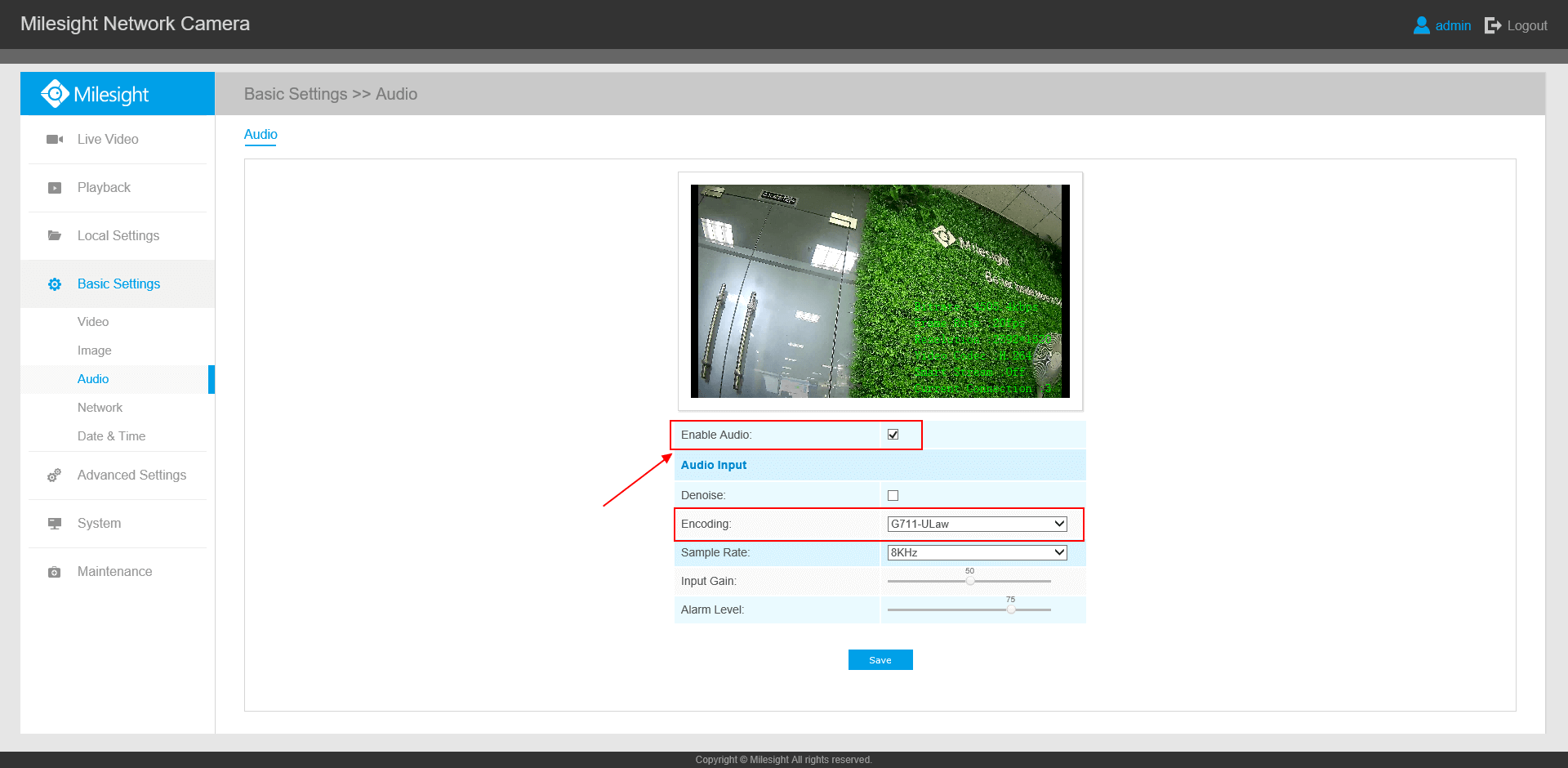

Log in the camera, click on “Basic Settings”→“Audio”, check the check-box to “Enable Audio”.

Enable audio on camera
Note:

Audio function is only supported by audio equipment.

1. Open Audio on Web Page

Step1: Input the IP of NVR, the user name and the password to log in web. The default user name is: admin, default password is: ms1234;

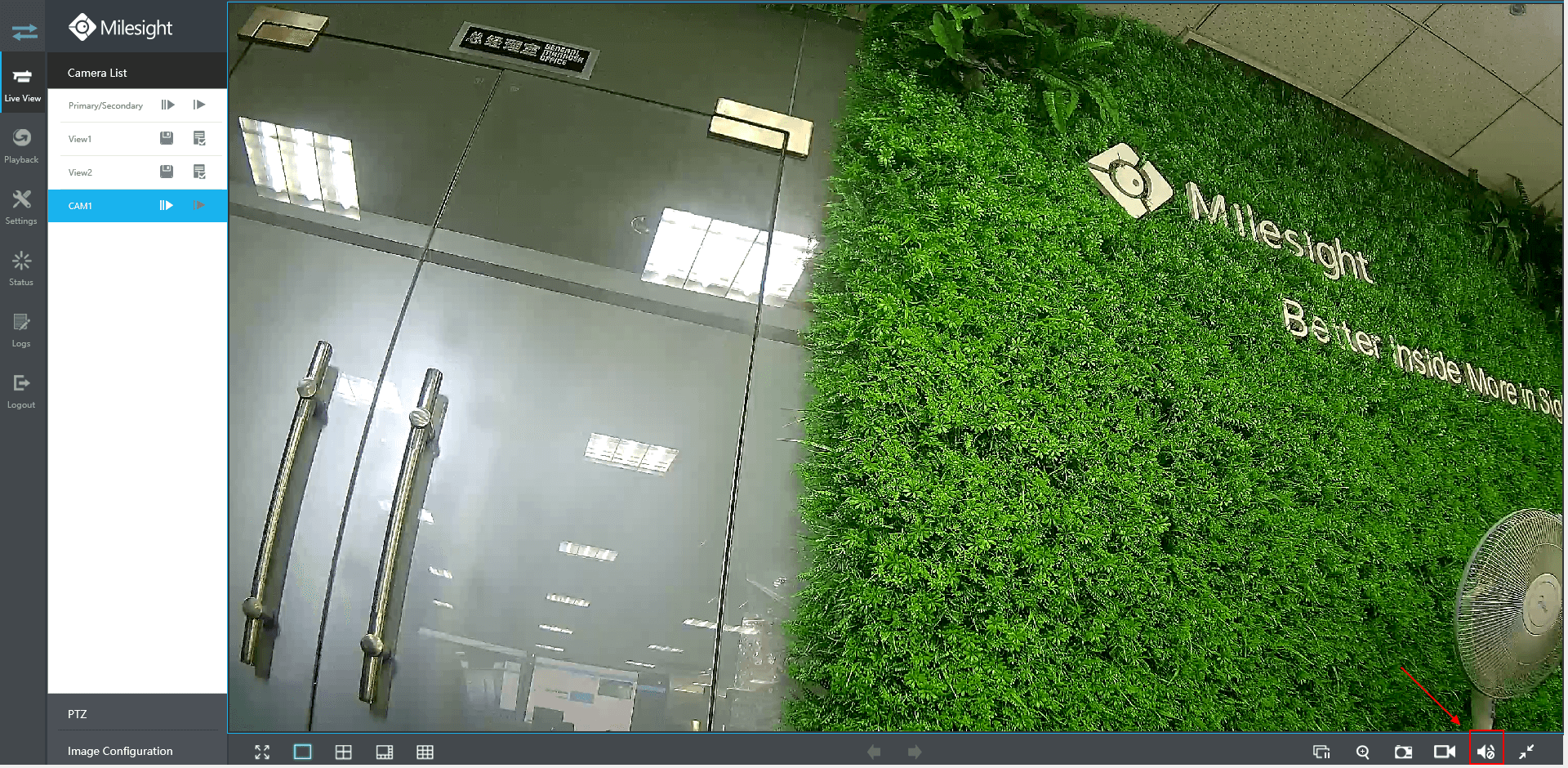

Step2: Go to “Live View” interface, there is a quick setting toolbar in the lower right corner, click on the button “Audio” in the “Live View” interface. When its color changed, the audio has been successfully opened.

Enable audio on camera

2. Open Audio on the Monitor

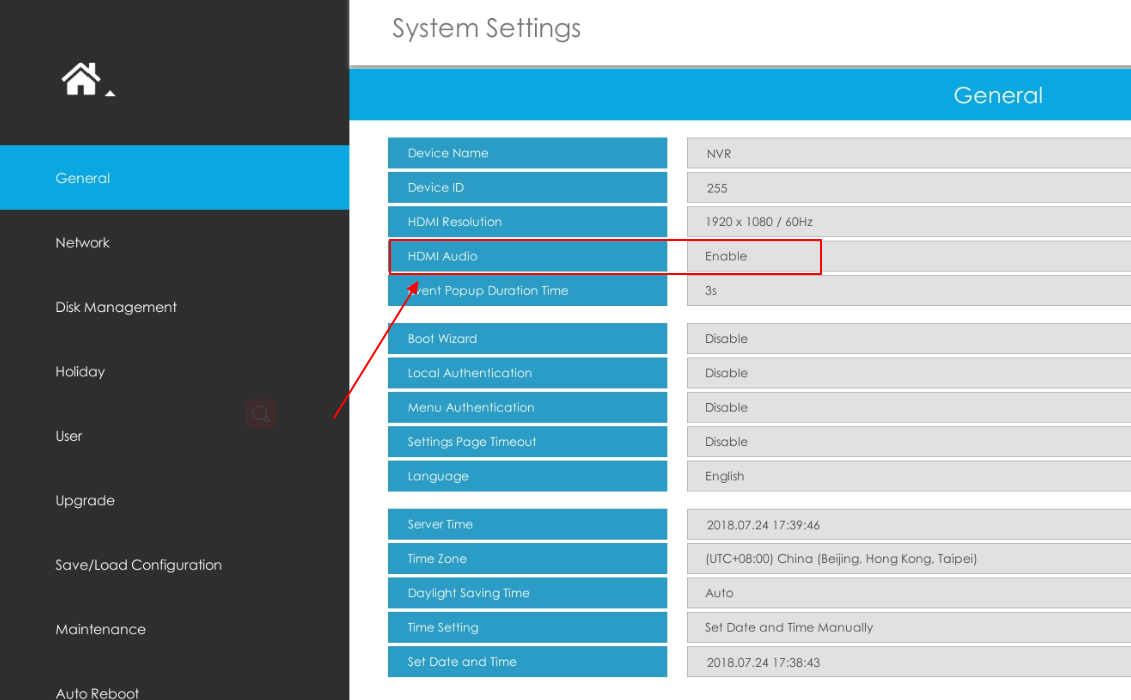

Step1: Log in local monitor, right click, it will turn up “Main Menu” and go to “System”→“General”, check the checkbox to enable “HDMI Audio”.

Open audio on monitor

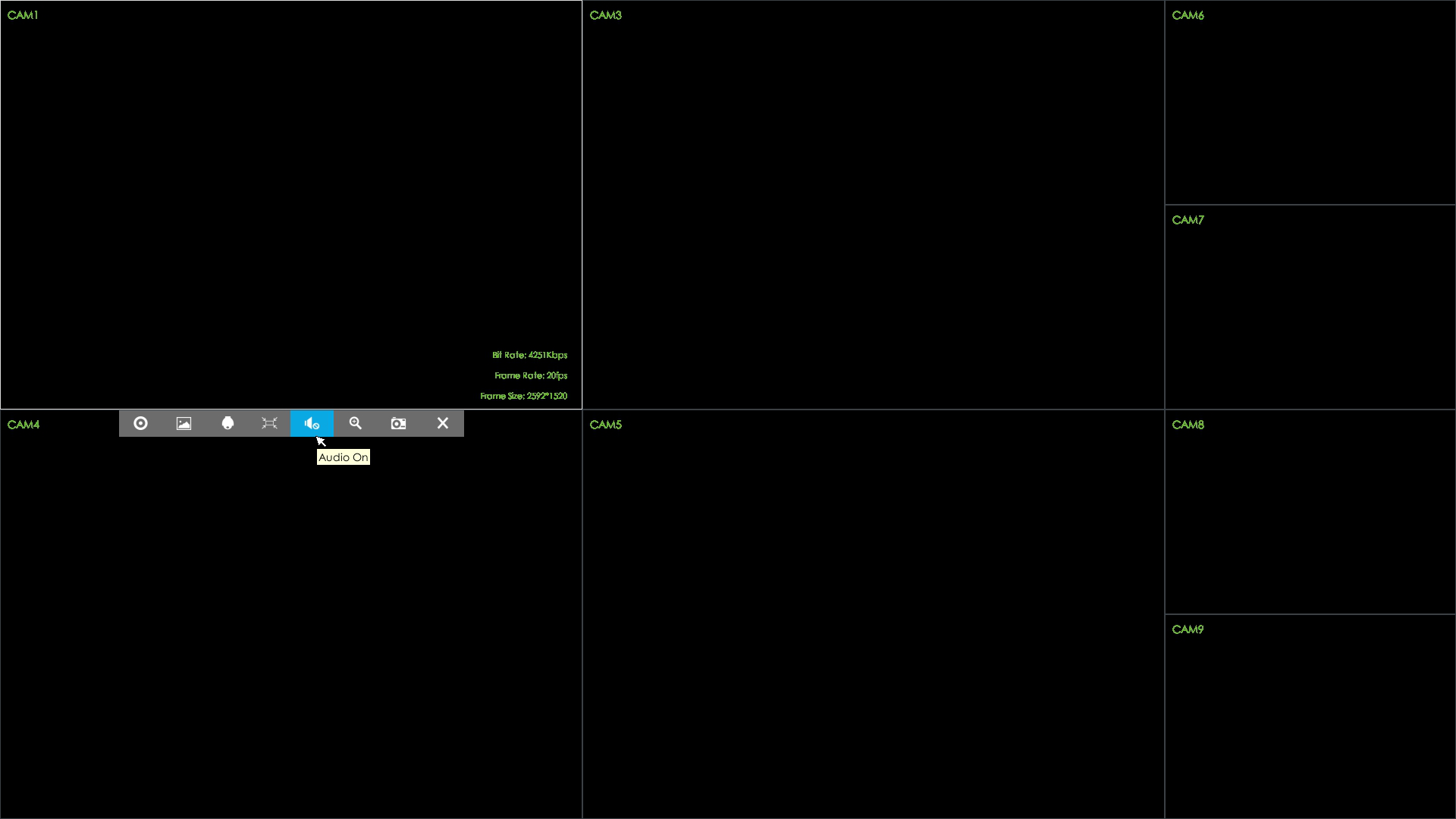

Step2: Return to “Live View” interface, on the screen of each channel, there is a quick setting toolbar shown when you single click the mouse in the corresponding screen.

Open audio on monitor

Step3: Click the button “Audio”.

Open audio on monitor
Note:

The monitor you connected needs to support “Audio output”.
